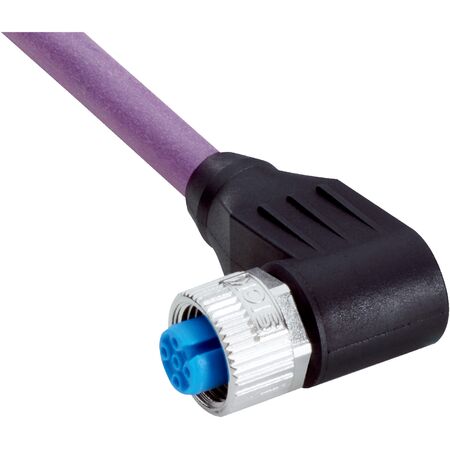

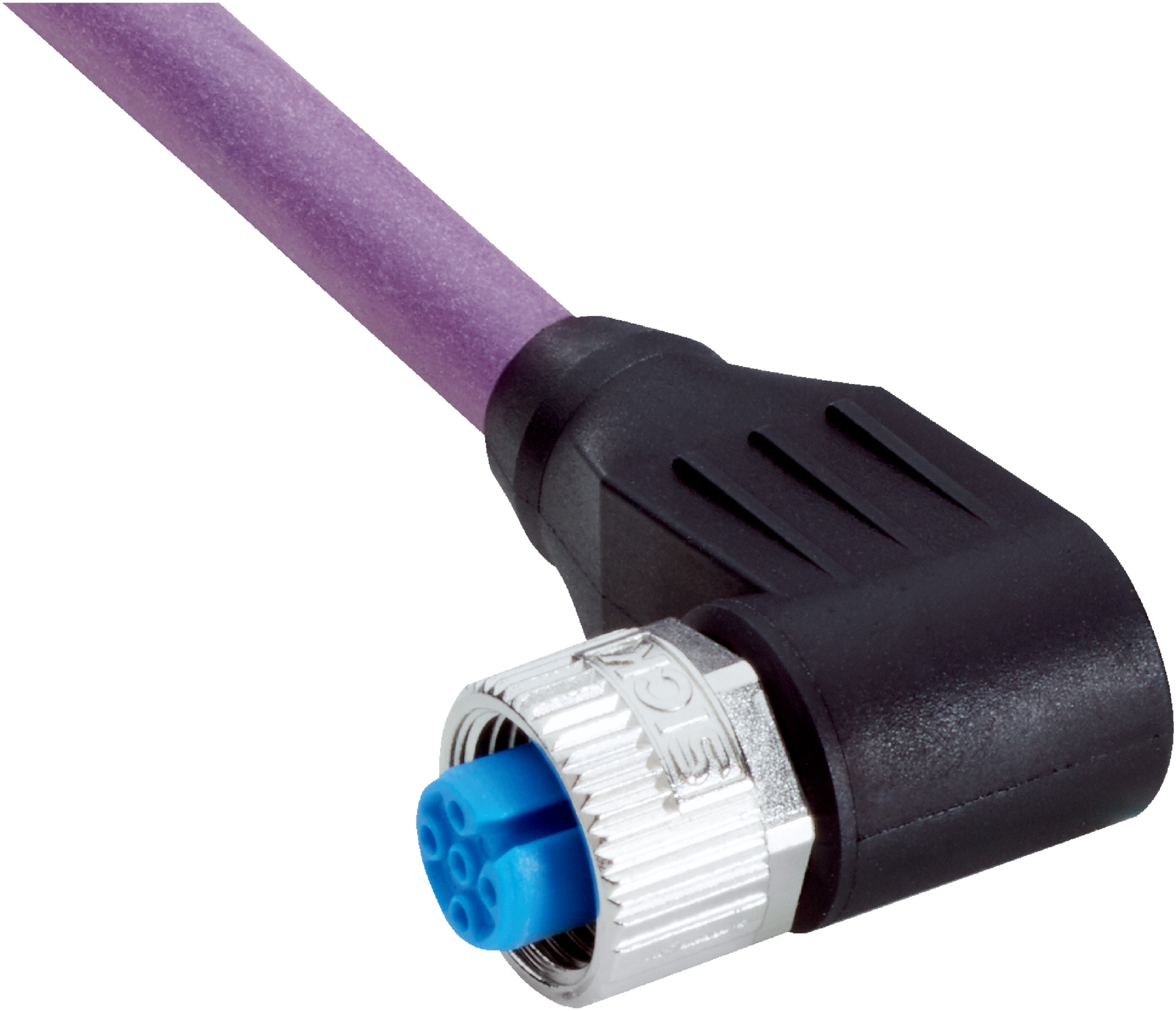

Industrial M12 Cable | 5-Pin Angled Connector | Shielded PUR | IP65/IP66K/IP67 | by SICK
The Industrial M12 Cable features a 5-pin angled connector and a shielded PUR design, making it ideal for fieldbus communication in industrial automation. With an impressive operating temperature range of -40 °C to +85 °C and robust IP65/IP66K/IP67 enclosure ratings, this cable is built to withstand harsh environments while ensuring reliable connectivity for CANopen and DeviceNet™ applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 15 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 6.9 mm
- Conductor cross section: 2 x 0.34 mm² + 2 x 0.25 mm² + 1 x 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 6 x cable diameter
- Operating temperature flexible use: -30 °C to +70 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Reference voltage: 60 V DC
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance piping: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 13mm x 15000mm x 13mm
- Weight: 0.5 kg
Key Features
- Female M12, 5-pin, angled, A-coded connector
- Shielded PUR cable, halogen-free and flame-resistant
- High bending radius suitable for flexible use and stationary positions
- Operating temperature range from -40 °C to +85 °C depending on component
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Supports fieldbus signal types including CANopen and DeviceNet™
- UL File No. E335179 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication cabling standards to ensure proper connection and compliance with safety regulations.
Applications
- Industrial automation and control systems
- Fieldbus communication networks including CANopen and DeviceNet™
- Harsh environments requiring flame-resistant and self-extinguishing cables
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces toxic emissions in case of fire
- Flame-resistant and self-extinguishing materials enhance safety
- Durable construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK YG2A15-150C1BXLEAX industrial cable is available for immediate purchase, ideal for industrial automation and fieldbus communication applications.
