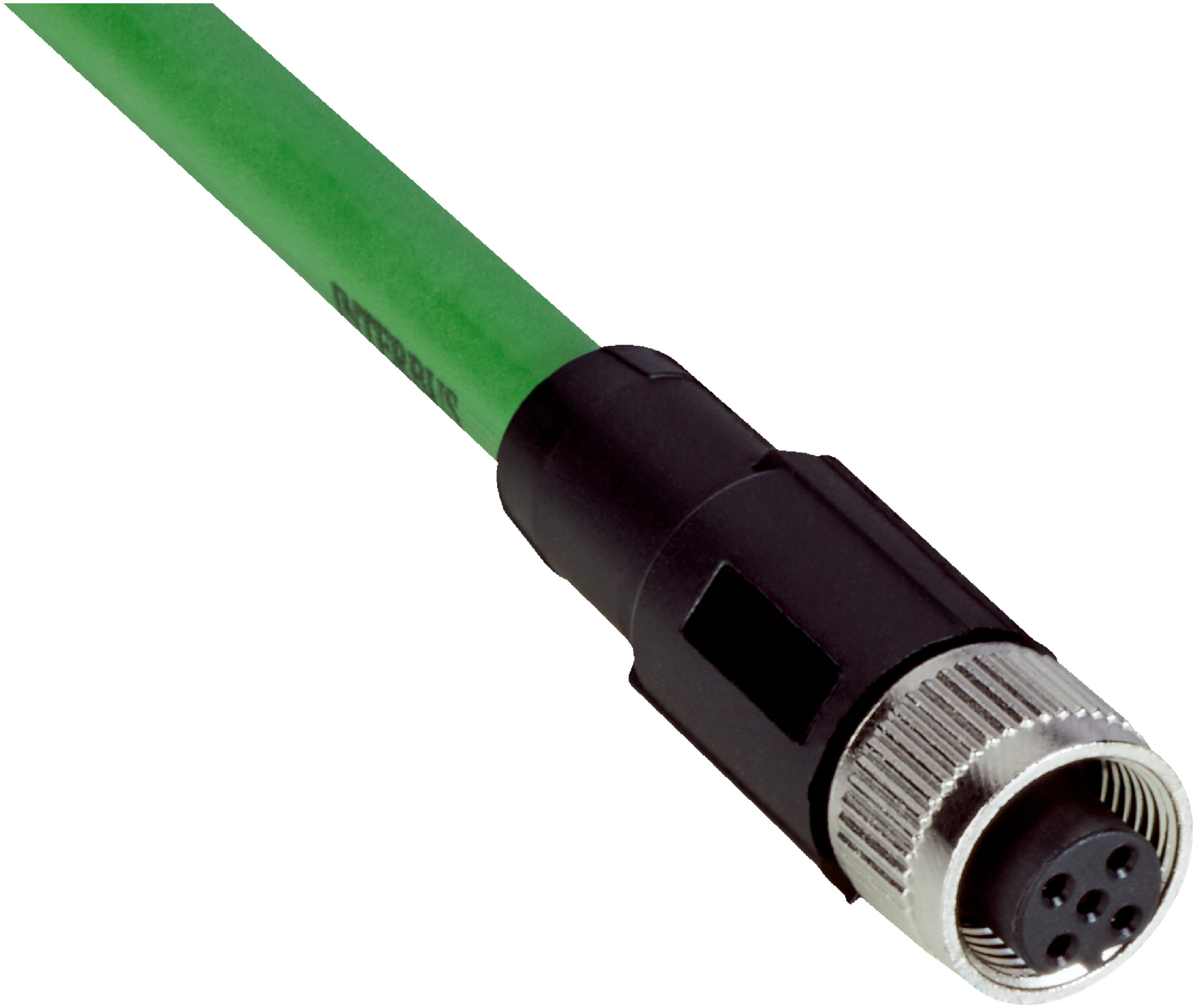

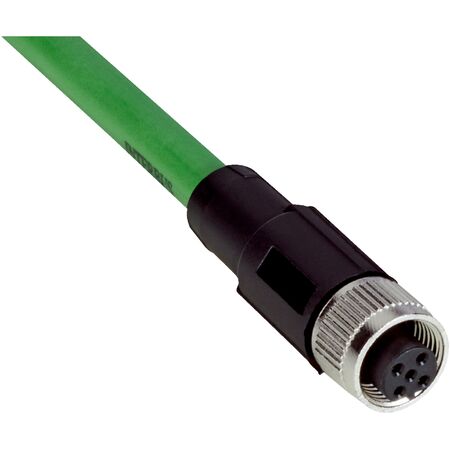

Industrial M12 Cable | 5-Pin Female Connector | 10m PUR Jacket | IP65/IP67 Rated | by SICK
The Industrial M12 Cable features a 5-pin female connector and flying leads, making it perfect for industrial automation systems and drag chain operations. With a durable TPU connector and IP65/IP67 enclosure rating, this cable ensures reliable signal transmission in challenging environments, supporting fieldbus and Interbus applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, B-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm
- Cable length: 10 m
- Cable wires: 5-wire, PUR jacket
- Jacket color: Green
- Cable diameter: 8 mm
- Conductor cross section: 3 x 2 x 0.22 mm²
- Shielding: Shielded
- Bending radius: > 15 x cable diameter for flexible use and drag chain operation
- Operating temperature flexible use: -30°C to +70°C
- Operating temperature stationary position: -40°C to +80°C
- Operating temperature head: -25°C to +90°C
- Enclosure rating: IP65/IP67
- Reference voltage: ≤ 60 V AC/DC
- Current loading: 4 mA
- Traversing speed: 1.6 m/s
- Acceleration: ≤ 3 m/s²
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: II
- Signal type: Fieldbus, Interbus
- Dimensions (H x L x W): 15mm x 10000mm x 15mm
- Weight: 0.3 kg
Key Features
- Female M12, 5-pin, straight B-coded connector on head A
- Flying leads on head B with screw locking plug connector
- Durable TPU connector material and zinc die-cast nickel-plated locking nut
- 10 m PUR jacketed cable with 5 wires and 8 mm diameter
- Shielded cable with 3 x 2 x 0.22 mm² conductor cross section
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -30°C to +70°C for flexible use
- Enclosure rating IP65/IP67 for protection against dust and water
- Supports reference voltage ≤ 60 V AC/DC and current loading of 4 mA
- Designed for traversing speed up to 1.6 m/s and acceleration ≤ 3 m/s²
- Contamination rating 3 and insulation resistance of 100 MΩ
- Overvoltage category II
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with industrial cabling and electrical standards to ensure proper connection and safety.
Applications
- Industrial automation systems
- Drag chain operation environments
- Fieldbus and Interbus signal transmission
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- Shielded cable design reduces electromagnetic interference, improving system efficiency.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2B25-100IB1XLEAX industrial cable is available for immediate purchase, ideal for industrial automation and drag chain applications.
