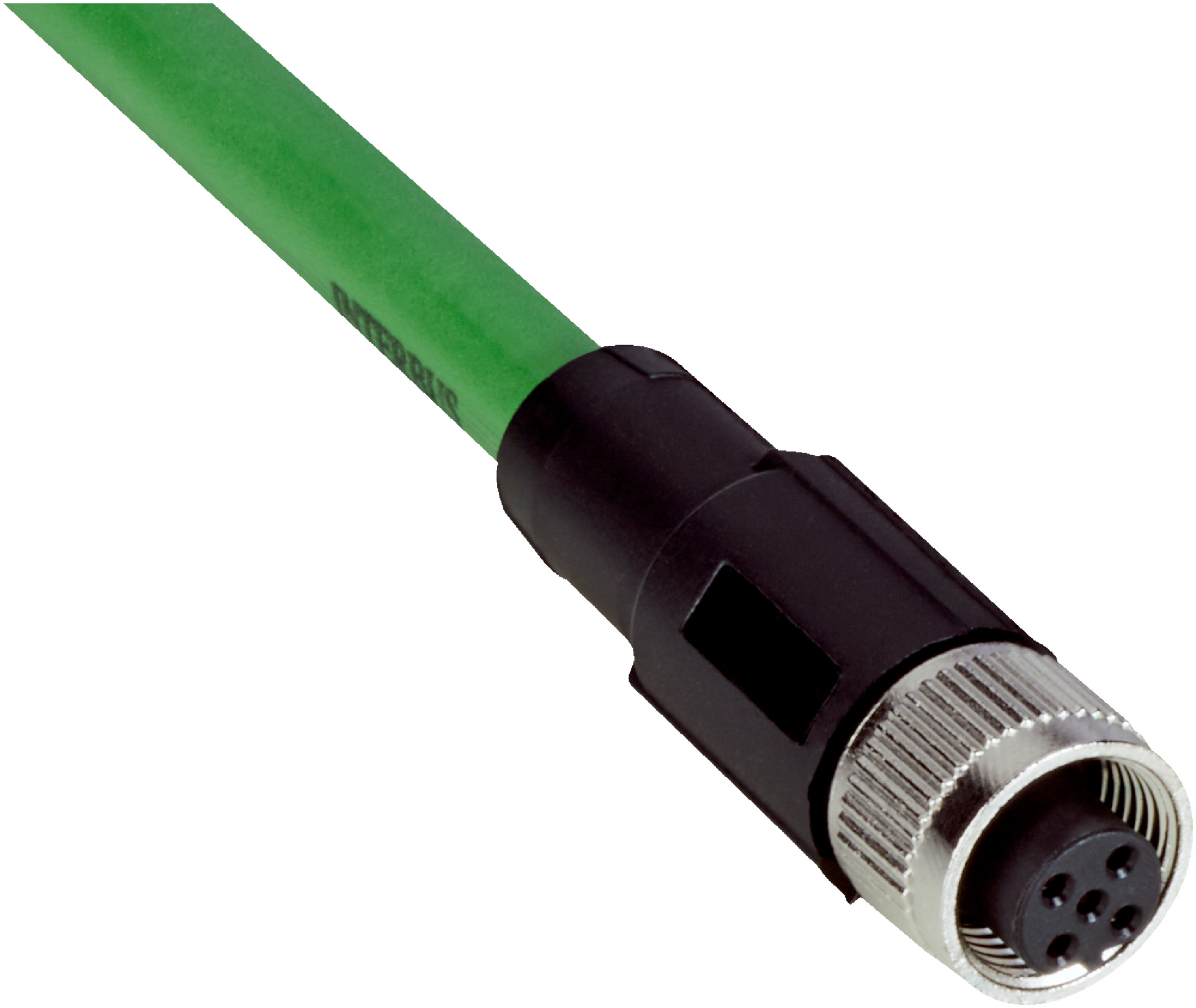

Industrial M12 Cable | 5-Pin Female Connector | 20m Length | IP65/IP67 Rated | by SICK
The Industrial M12 Cable features a 5-pin female connector and flying leads, designed for reliable signal transmission in industrial automation and drag chain applications. With a durable TPU connector and PUR jacket, this cable is built to withstand harsh environments, offering IP65/IP67 protection against dust and water. Ideal for fieldbus and Interbus systems, it ensures high performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, B-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm
- Cable length: 20 m
- Cable wires: 5-wire, PUR jacket
- Jacket color: Green
- Cable diameter: 8 mm
- Conductor cross section: 3 x 2 x 0.22 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 15 x cable diameter, Stationary position > 7.5 x cable diameter, Drag chain operation > 15 x cable diameter
- Bending cycles: 5,000,000
- Reference voltage: ≤ 60 V AC/DC
- Current loading: 4 mA
- Traversing speed: 1.6 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 3 m/s²
- Signal type: Fieldbus, Interbus
- Application: Drag chain operation
- Enclosure rating: IP65 / IP67
- Operating temperature: Flexible use -30 °C to +70 °C, Stationary position -40 °C to +80 °C, Head -25 °C to +90 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: II
- Dimensions (H x L x W): 10mm x 20000mm x 10mm
- Weight: 0.5 kg
Key Features
- Female M12, 5-pin, straight, B-coded connector on head A
- Flying leads on head B with screw connection locking plug
- Durable TPU connector and PUR jacket material
- Shielded cable with 5 wires and 8 mm diameter
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +90 °C depending on use
- IP65/IP67 rated enclosure for protection against dust and water
- High insulation resistance of 100 MΩ and overvoltage category II
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial cabling and connectors to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Drag chain operation environments
- Fieldbus and Interbus signal transmission
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Shielded cable design reduces electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

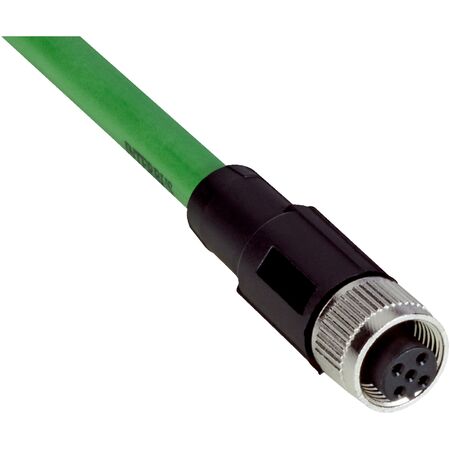

The SICK YF2B25-200IB1XLEAX industrial cable is available for immediate purchase, ideal for industrial automation and drag chain applications.
