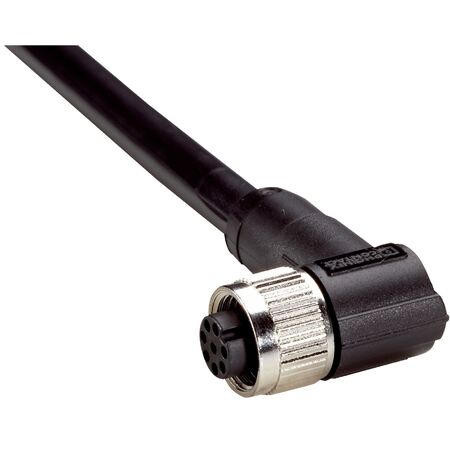

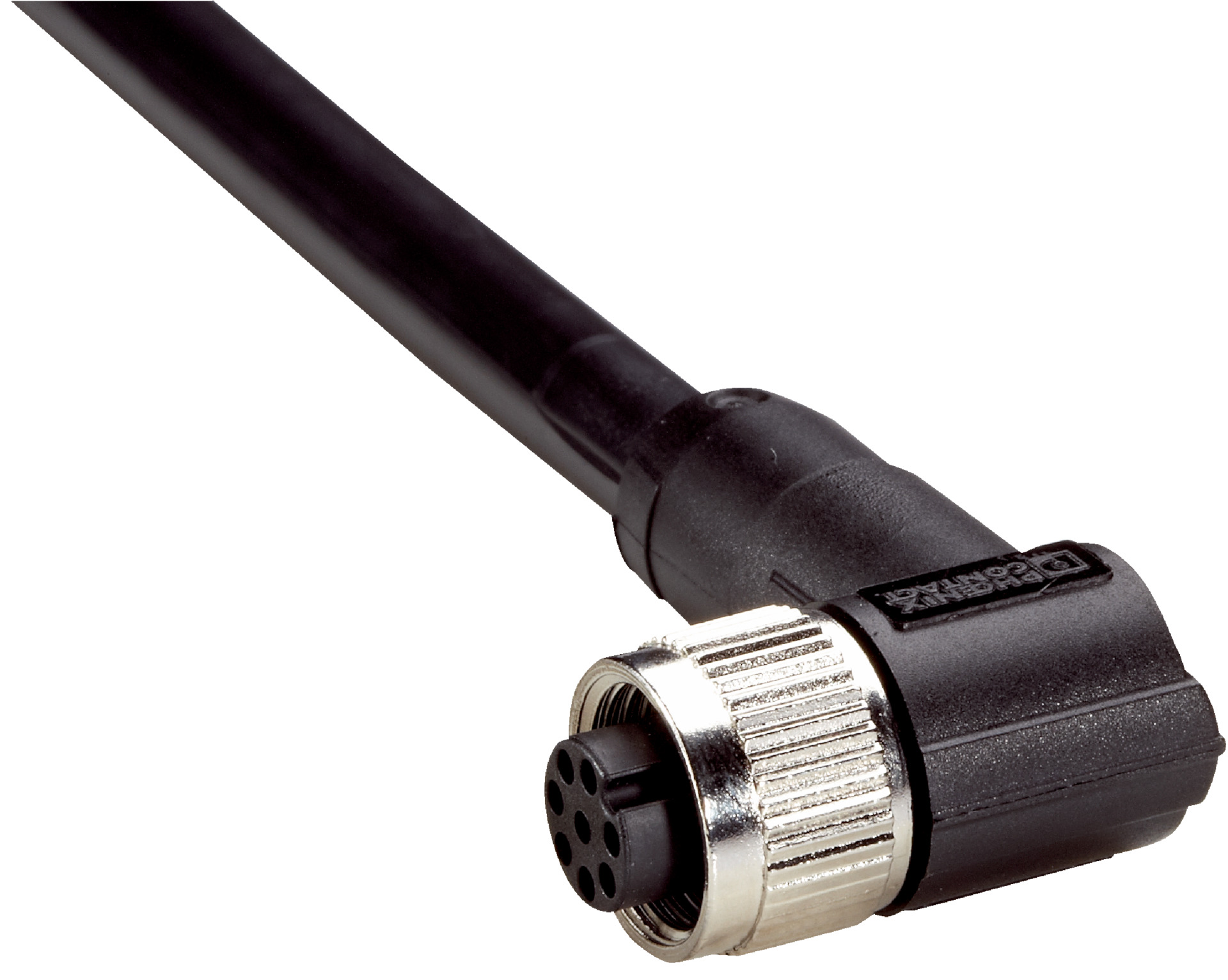

Industrial M12 Cable | 8-Pin Angled Connector | 40m PUR Halogen-Free | IP67 Rated | by SICK
The Industrial M12 Cable features an 8-pin angled connector and flying leads, making it perfect for industrial automation and control systems. With a robust 40m PUR halogen-free cable, it offers excellent oil and chemical resistance, ensuring durability in demanding environments. Ideal for factory machinery and robotics, this cable is designed for high performance with over 2,000,000 bending cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: CuZn
- Locking nut material: Nickel-plated brass
- Seal material: FKM
- Cable length: 40 m
- Cable type: 8-wire, 4 x 2 twisted pairs, PUR, halogen-free
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: > 2,000,000
- Traversing speed: ≤ 3.3 m/s
- Acceleration: ≤ 5 m/s²
- Signal type: RS-422, SSI
- Enclosure rating: IP67
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -50 °C to +80 °C
- Drag chain operation temperature: -25 °C to +60 °C
- Head temperature range: -25 °C to +85 °C
- Dimensions (H x L x W): 20mm x 40000mm x 20mm
- Weight: 0.5 kg
Key Features
- Female M12, 8-pin angled A-coded connector on head A
- Flying leads on head B for flexible connection
- Screw connection locking plug for secure attachment
- High-quality CuZn connector material with nickel-plated brass locking nut
- FKM seal material ensuring durability and resistance
- 40 m PUR halogen-free cable with 8 wires twisted in pairs
- Shielded cable with 0.25 mm² conductor cross section
- Very good oil and chemical resistance
- IP67 rated enclosure for dust and water protection
- High bending radius and over 2,000,000 bending cycles for flexible use
- Operating temperature range from -50 °C to +85 °C depending on use
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial cabling to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Factory machinery wiring
- Robotics and conveyor systems requiring robust cable connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
- High resistance to chemicals and oils minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A68-400XXXXLECX industrial cable is available for immediate purchase, ideal for industrial automation and control system applications requiring durable and flexible cabling solutions.
