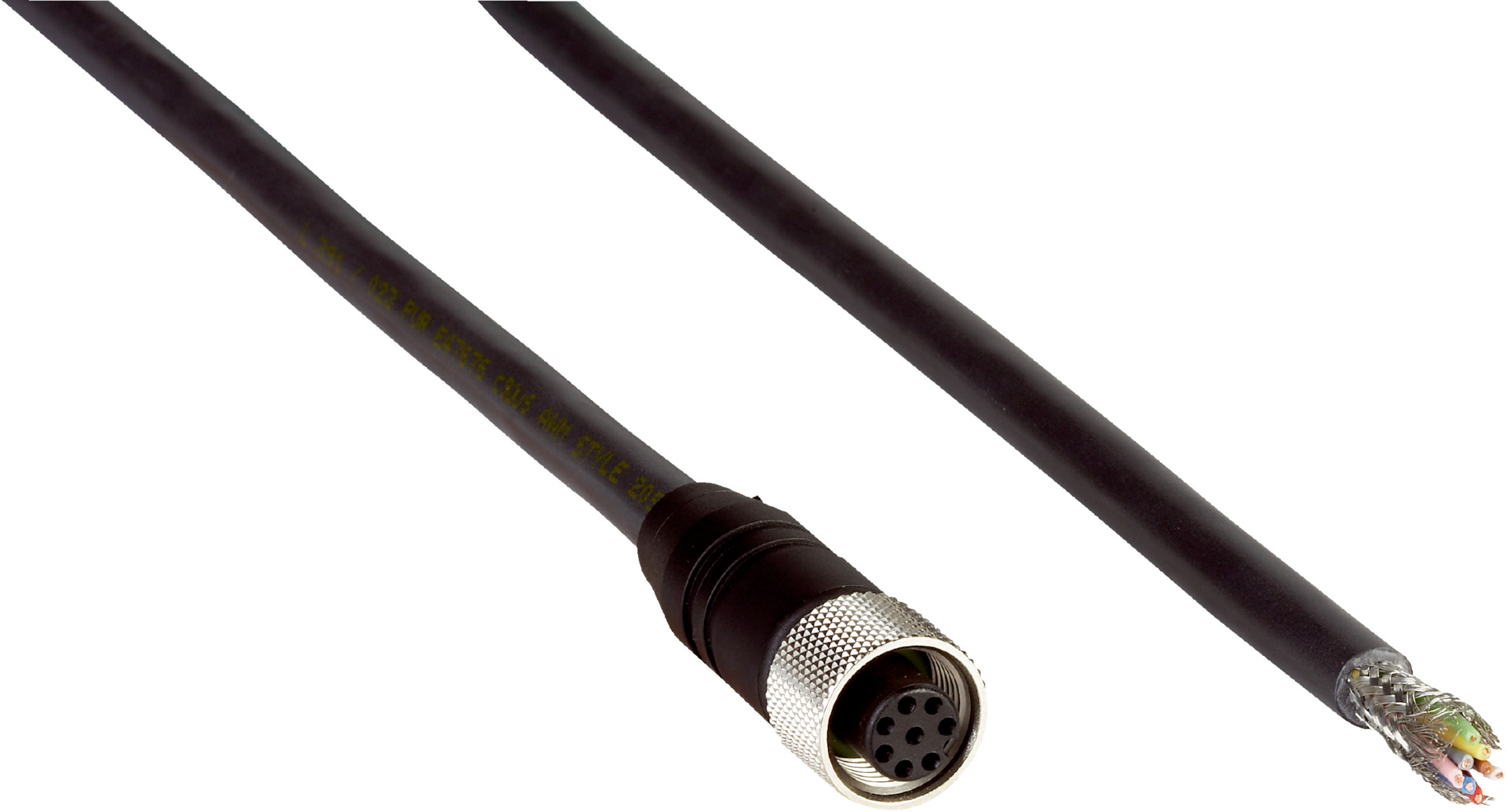

Industrial M12 Cable Assembly | 10m Length | IP67 Rated | Shielded PUR Cable | by SICK
The Industrial M12 Cable Assembly features a 10m flexible PUR cable with an 8-pin female connector and flying leads for versatile connections. Designed for industrial automation and robotics, this shielded cable ensures durability with over 2,000,000 bending cycles and an IP67 rating for dust and water protection, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Flying leads
- Cable length: 10 m
- Cable type: 8-wire, PUR, halogen-free
- Jacket material: PUR, halogen-free
- Jacket color: Black
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: > 2,000,000
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Enclosure rating: IP67
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.2 kg
Key Features
- Female connector M12, 8-pin, straight on head A
- Flying leads on head B for versatile connection
- 10 m length, 8-wire PUR halogen-free cable
- Shielded cable with 0.25 mm² conductor cross section
- High bending radius for flexible use and stationary positions
- Over 2,000,000 bending cycles for durability
- Current loading capacity of 4 A
- IP67 enclosure rating for dust and water protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Robotics and machinery requiring flexible cable connections
- Environments requiring IP67 rated cable assemblies
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact and improves safety in case of fire
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

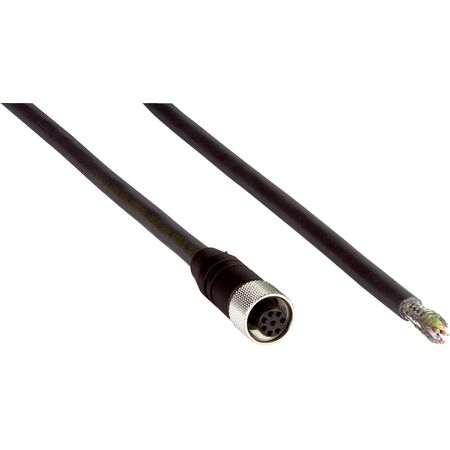

The SICK YF2A68-100XXXXLEAX cable assembly is available for immediate purchase, ideal for industrial automation and machinery requiring robust and flexible cable connections.
