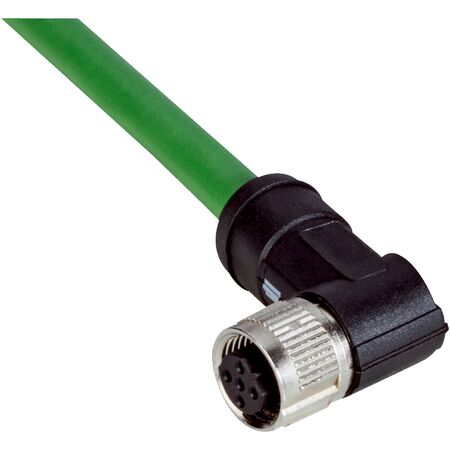

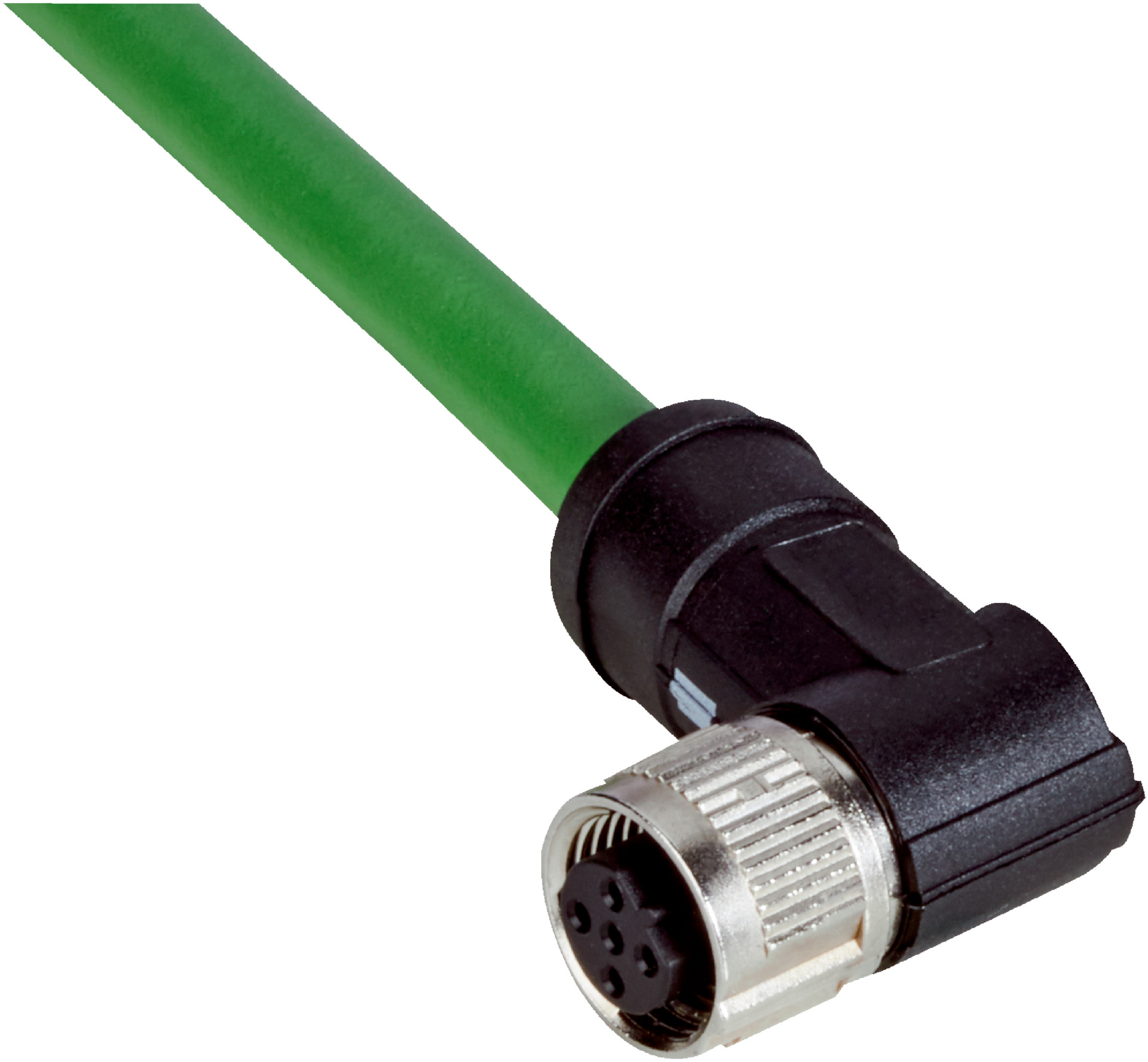

Industrial M12 Cable | Female 5-Pin Angled Connector | Shielded PUR Cable | IP65/IP67 Rated | by SICK
The Industrial M12 Cable features a female 5-pin angled B-coded connector and a shielded 2 m PUR cable with 5 wires, making it ideal for industrial automation and drag chain operation environments. With an IP65/IP67 rating for dust and water protection, this cable ensures reliable signal transmission in challenging conditions, supporting fieldbus and Interbus applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, B-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm
- Cable length: 2 m
- Cable wires: 5-wire, PUR jacket
- Jacket color: Green
- Cable diameter: 8 mm
- Conductor cross section: 3 x 2 x 0.22 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 15 x cable diameter, Stationary position > 7.5 x cable diameter, Drag chain operation > 15 x cable diameter
- Bending cycles: 5,000,000
- Reference voltage: ≤ 60 V AC/DC
- Current loading: 4 mA
- Traversing speed: 1.6 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 3 m/s²
- Signal type: Fieldbus, Interbus
- Application: Drag chain operation
- Enclosure rating: IP65 / IP67
- Operating temperature: Flexible use -30°C to +70°C, Stationary position -40°C to +80°C, Head -25°C to +90°C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: II
- Dimensions (H x L x W): 8mm x 2000mm x 8mm
- Weight: 0.1 kg
Key Features
- Female M12, 5-pin, angled B-coded connector
- Shielded 2 m PUR cable with 5 wires
- High bending radius suitable for flexible and drag chain use
- IP65/IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +90°C depending on use
- Screw connection locking plug with zinc die-cast nickel-plated nut
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Drag chain operation environments
- Fieldbus and Interbus signal transmission
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Shielded cable design reduces electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YG2B25-020IB1XLEAX industrial cable is available for immediate purchase, ideal for industrial automation and drag chain applications.
