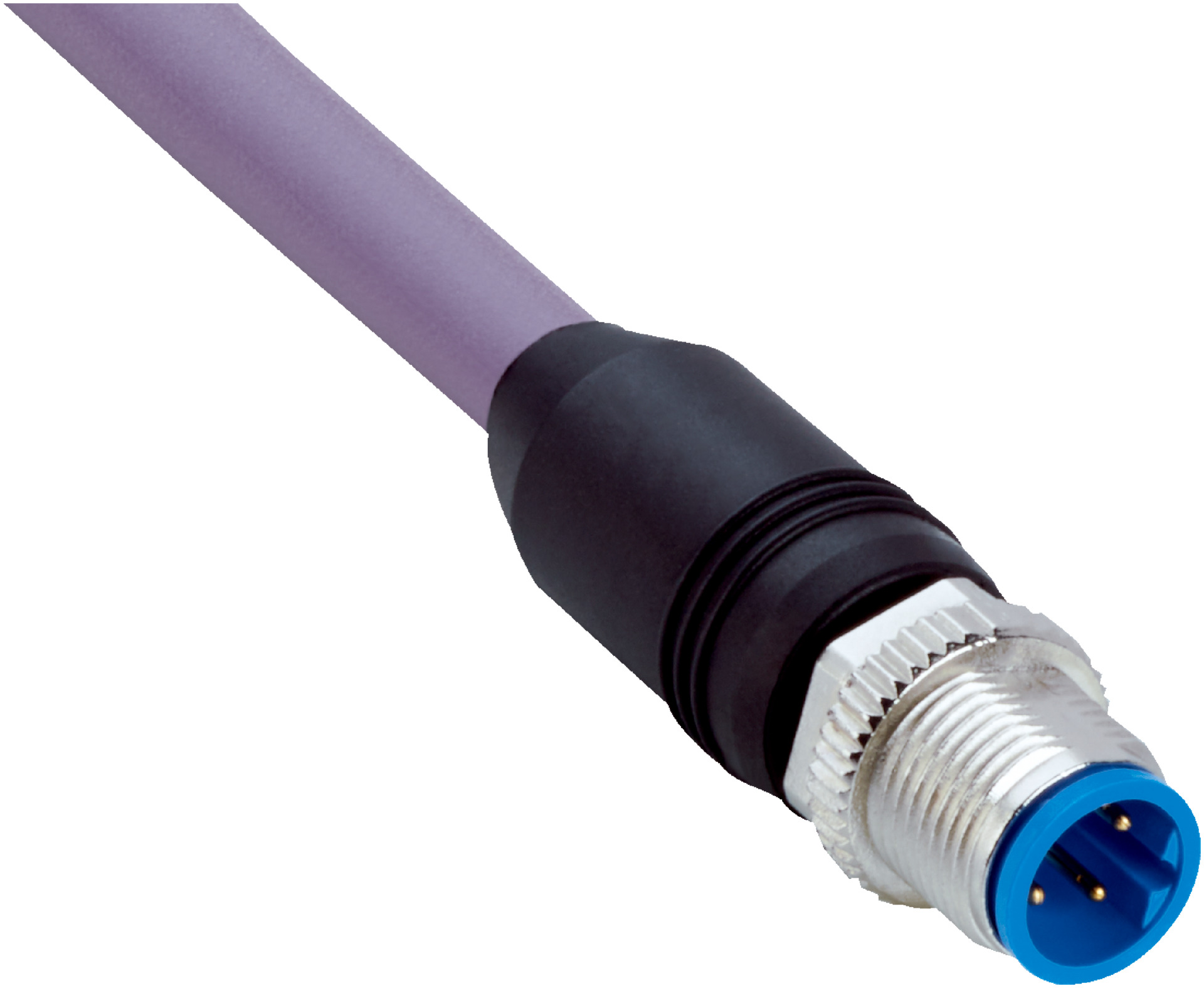

Industrial M12 Connector Cable | 15m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The Industrial M12 Connector Cable is designed for reliable data transmission in industrial automation, featuring a 15m halogen-free PUR jacket and IP65/IP66K/IP67 enclosure rating. Ideal for drag chain operations and environments with oils and lubricants, this cable ensures robust connectivity with a 2-pin male connector and high bending radius for flexible use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 2-pin, straight, B-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 15 m
- Cable type: 2-wire, PUR, halogen-free
- Cable diameter: 7.7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 7.5 x cable diameter, Drag chain operation > 12 x cable diameter
- Bending cycles: 5,000,000
- Nominal voltage: 300 V AC
- Test voltage: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, PROFIBUS DP
- Data transmission rate: ≤ 0.012 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -20 °C to +60 °C, Stationary position -40 °C to +80 °C, Drag chain operation -20 °C to +60 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 13mm x 15000mm x 13mm
- Weight: 0.3 kg
Key Features
- Male connector M12, 2-pin, straight, B-coded
- Flying leads with screw connection locking plug
- Cable: 15 m, 2-wire, PUR, halogen-free, violet jacket
- Shielded cable with 0.25 mm² conductor cross section
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Current loading up to 4 A with 300 V AC nominal voltage
- Data transmission rate up to 0.012 Gbit/s for fieldbus applications
- UL and cULus certified with flame retardant cable
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial connector cables and fieldbus systems to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants
- Fieldbus and PROFIBUS DP data transmission
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
- Flame retardant cable enhances safety and environmental protection
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK warranty policy for details.
Available Now

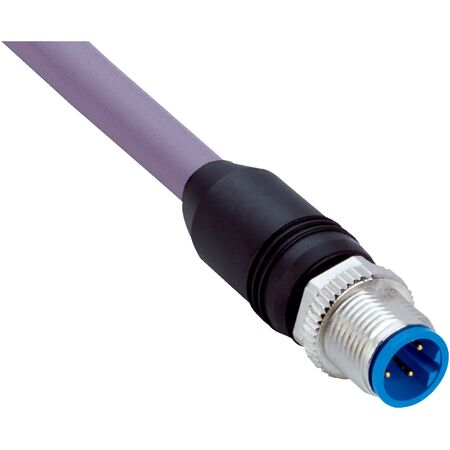

The SICK YM2B22-150PB1XLEAX industrial connector cable is available for immediate purchase, ideal for industrial automation and drag chain applications requiring robust and reliable connectivity.
