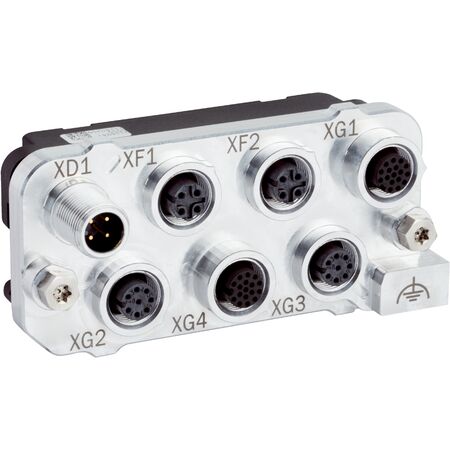

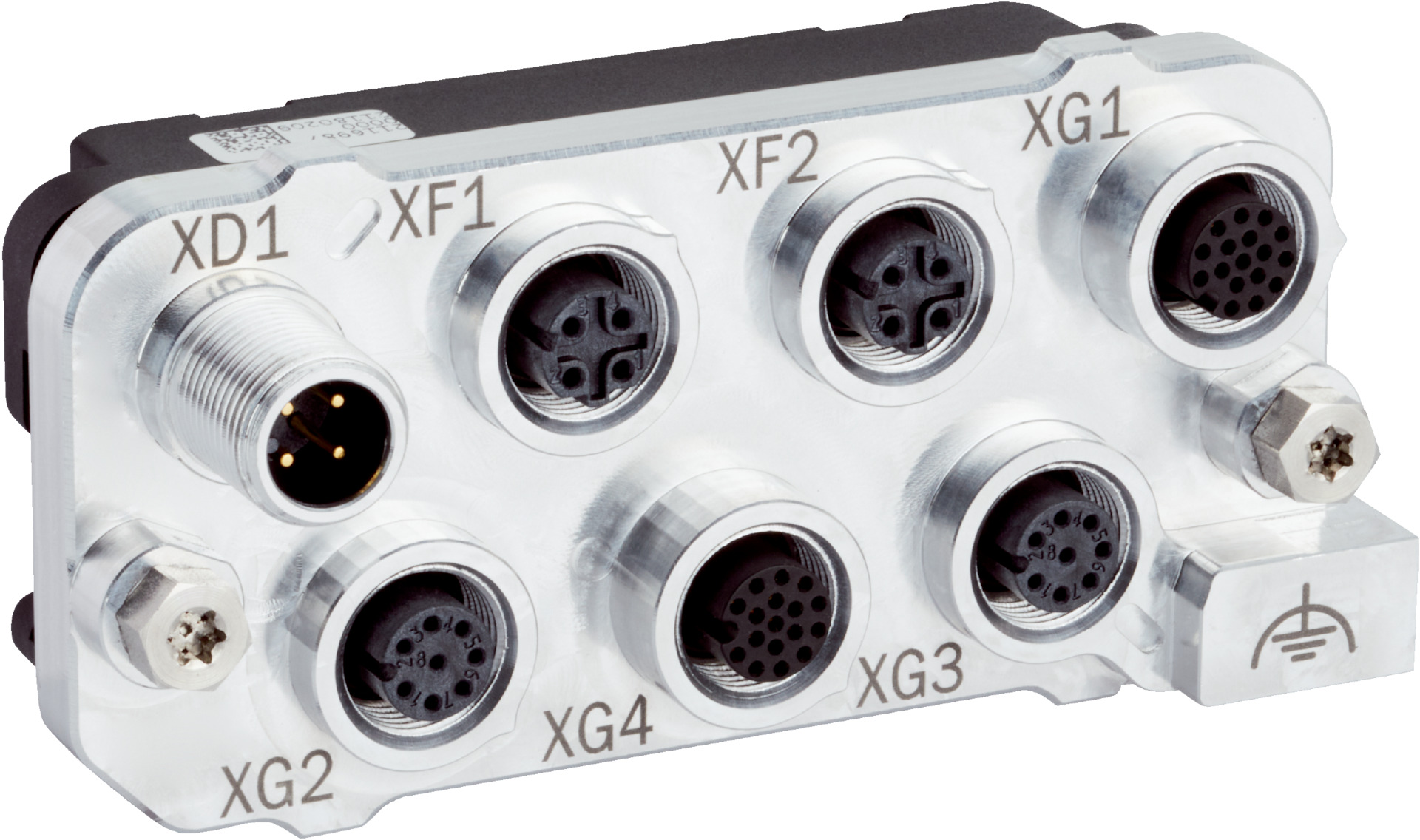

Industrial M12 Connector Module | Integrated Configuration Memory | 4-Pin & 17-Pin Connectors | by SICK
The Industrial M12 Connector Module is designed for efficient system setup with integrated configuration memory. Featuring a 4-pin M12 male connector and multiple 17-pin and 8-pin female connectors, it's perfect for industrial automation systems requiring reliable connections and dynamic control inputs. Ideal for manufacturing and processing plants, this module ensures optimal performance and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System connection voltage supply: 1 x M12 male connector, 4-pin, A-coded
- Local inputs and outputs (I/O): 2 x M12 female connector, 17-pin, A-coded
- Dynamic control inputs: 2 x M12 female connector, 8-pin, A-coded
- Fieldbus, industrial network: 2 x M12 female connector, 4-pin, D-coded
- Certifications: EU declaration of conformity, UK declaration of conformity, China-RoHS, cULus certificate
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- Integrated configuration memory for efficient system setup
- System connection with 1 x M12 male connector, 4-pin, A-coded
- Local inputs and outputs via 2 x M12 female connectors, 17-pin, A-coded
- Dynamic control inputs through 2 x M12 female connectors, 8-pin, A-coded
- Fieldbus and industrial network connectivity with 2 x M12 female connectors, 4-pin, D-coded
Professional Installation Requirements
- Installation should be performed by qualified industrial electricians or automation specialists to ensure compliance with electrical standards and optimal system performance.
Applications
- Industrial automation systems requiring reliable system connection and voltage supply
- Dynamic control input applications in manufacturing and processing plants
- Fieldbus and industrial network communication setups
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Supports efficient system configuration reducing setup time and resource use
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MICSX-CAAAMDMD1 is available for immediate purchase, ideal for industrial automation and control system applications.
