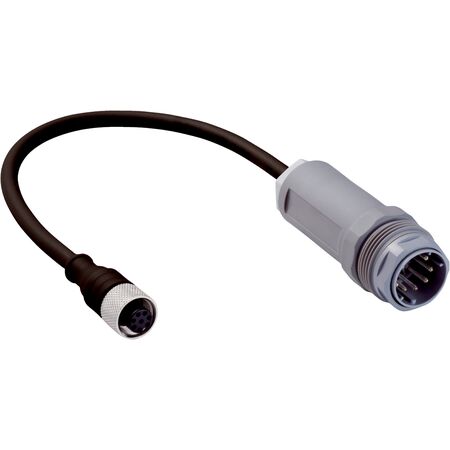

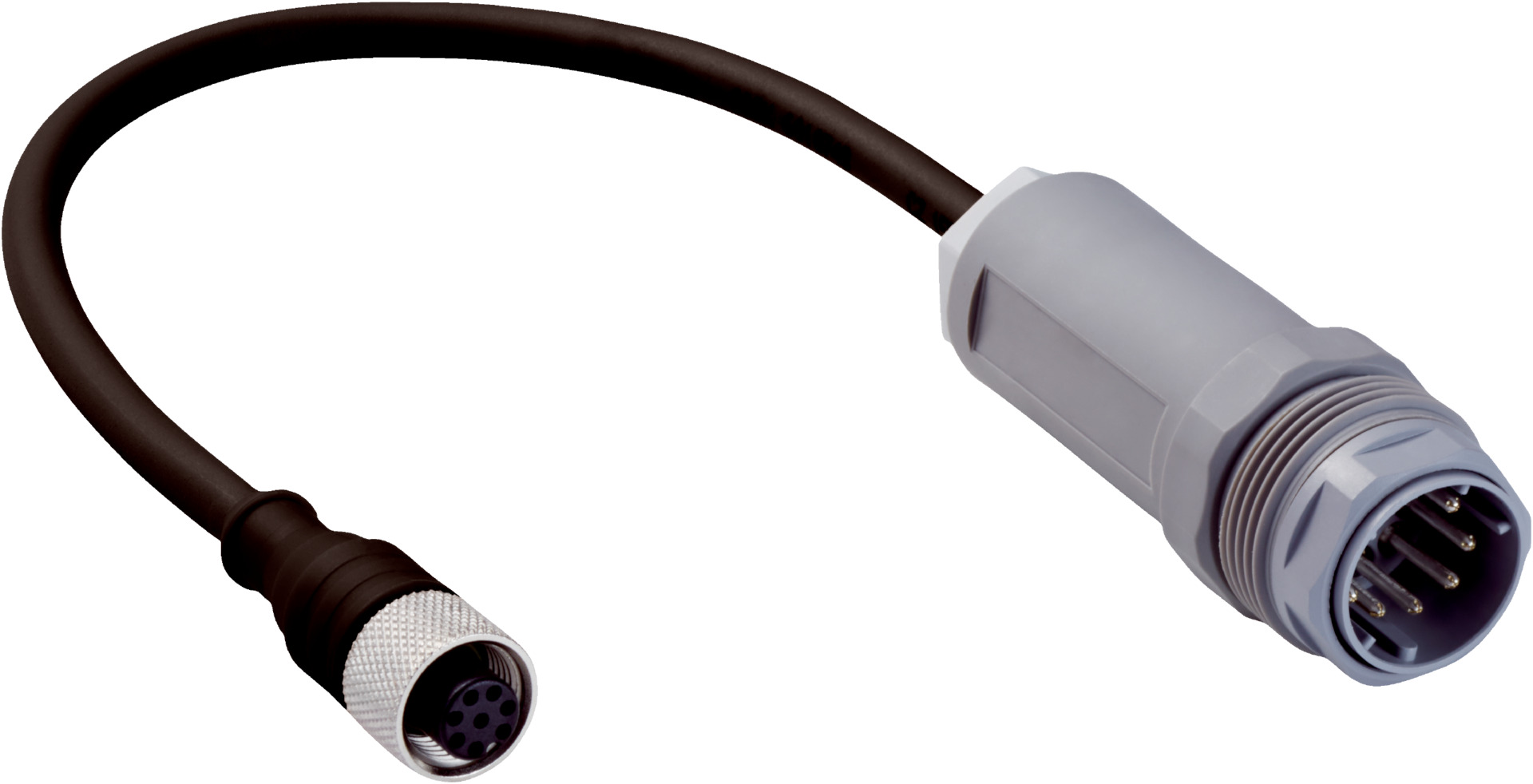

Industrial M12 to M26 Cable Assembly | 8-Pin Female & 12-Pin Male Connectors | Halogen-Free PUR Jacket | by SICK
The Industrial M12 to M26 Cable Assembly features an 8-pin female connector and a 12-pin male connector, designed for reliable connections in industrial automation and control systems. With a halogen-free PUR jacket and a flexible temperature range of -20 °C to +80 °C, this cable is perfect for environments exposed to oils and lubricants, ensuring durability and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Male connector, M26, 12-pin, straight
- Connector material: Female connector TPU, Male connector PET
- Locking nut material: CuZn, nickel-plated brass
- Cable length: 0.25 m
- Cable jacket material: PUR, halogen-free
- Cable diameter: 6 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Flexible use temperature: -20 °C to +80 °C
- Stationary use temperature: -40 °C to +80 °C
- Operating temperature head: -25 °C to +80 °C
- Suitable for zones with oils and lubricants
- Dimensions (H x L x W): 20mm x 250mm x 60mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 8-pin, straight
- Male connector M26, 12-pin, straight
- Connector materials: TPU (female), PET (male)
- Locking nut made of nickel-plated brass (CuZn)
- Cable length: 0.25 m, PUR, halogen-free
- Cable diameter: 6 mm, conductor cross section 0.25 mm²
- Unshielded cable
- Flexible use temperature range: -20 °C to +80 °C
- Stationary use temperature range: -40 °C to +80 °C
- Operating temperature for head: -25 °C to +80 °C
- Suitable for zones with oils and lubricants
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Environments with exposure to oils and lubricants
- Machine connectivity requiring M12 and M26 connectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces environmental impact during disposal
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DSL-6129GM25034KM1 cable assembly is available for immediate purchase, ideal for industrial automation and machinery requiring robust connector solutions.
