Industrial M23 21-Pin Cable Assembly | Shielded | 3m Length | IP66/IP67 Rated | by SICK

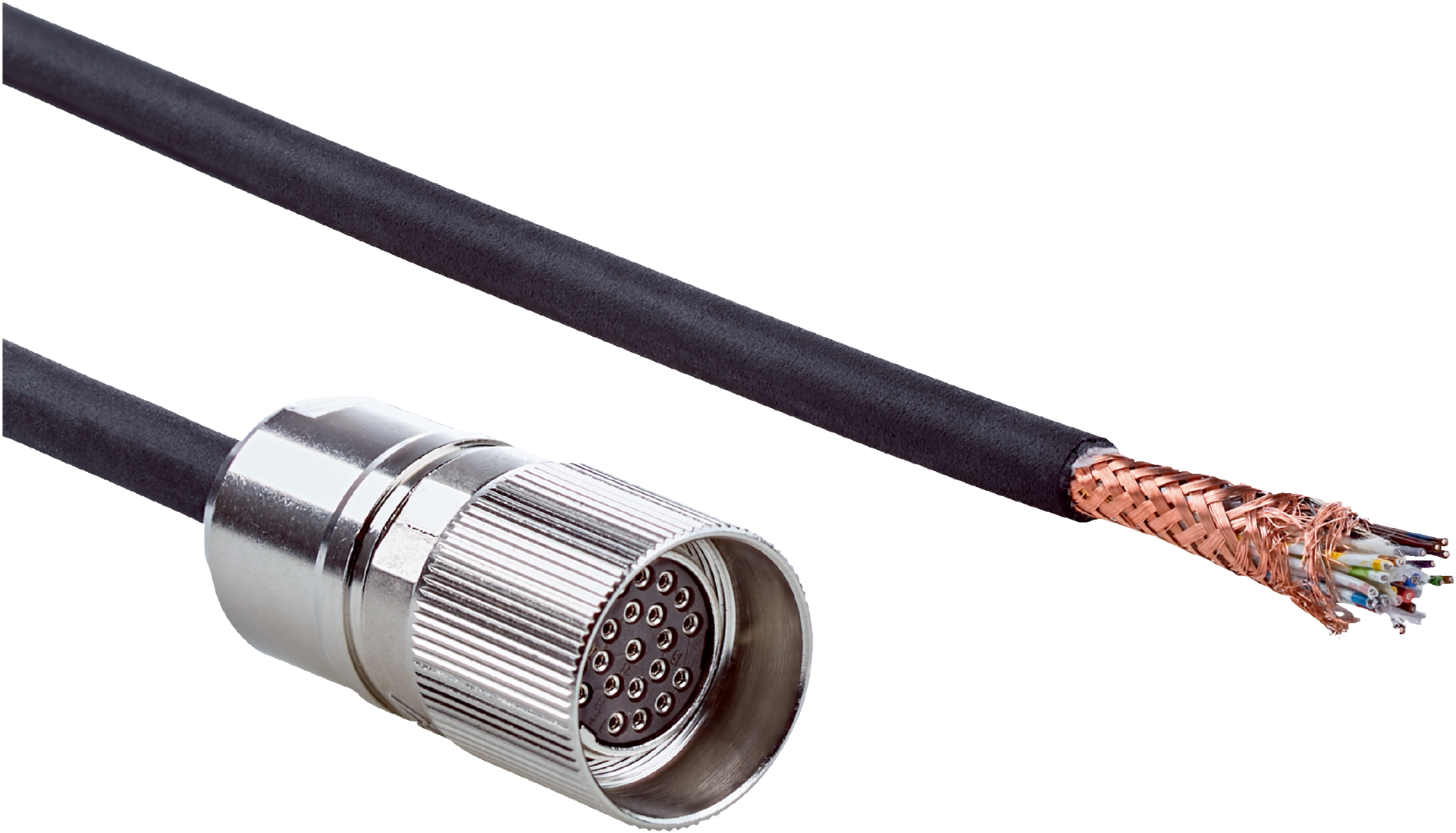

The Industrial M23 21-pin cable assembly is designed for robust connections in industrial automation and control systems. Featuring a female connector, flying leads, and a durable nickel-plated brass locking nut, this 3m shielded cable is perfect for environments exposed to oils and lubricants. With an IP66/IP67 rating, it ensures reliable performance in challenging conditions, making it an ideal choice for professionals seeking quality and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Industrial M23 21-pin cable, SICK M23 connector cable, Shielded industrial cable assembly
Technical Specifications
- Connection type head A: Female connector, M23, 21-pin, straight
- Connection type head B: Flying leads
- Locking nut material: Nickel-plated brass
- Cable length: 3 m
- Cable wires: 22-wire
- Cable jacket material: PUR, halogen-free
- Cable jacket color: Black
- Cable diameter: 7.8 mm
- Conductor cross section: 20 x 0.15 mm² + 2 x 0.5 mm²
- Shielding: Shielded
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -30°C to +90°C
- Operating temperature stationary position: -20°C to +130°C
- Reference voltage: ≤ 32 V
- Signal type: Parallel
- Enclosure rating: IP66/IP67
- Application environment: Zones with oils and lubricants
- Dimensions (H x L x W): 20mm x 3000mm x 20mm
- Weight: 0.3 kg
Key Features
- Female connector, M23, 21-pin, straight on head A
- Flying leads on head B for flexible connection
- Nickel-plated brass locking nut for durability
- 3 m length, 22-wire PUR halogen-free cable
- Cable diameter 7.8 mm with shielded construction
- Suitable for stationary use from -20°C to +130°C
- Flexible use temperature range from -30°C to +90°C
- Enclosure rating IP66/IP67 for dust and water protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Environments with exposure to oils and lubricants
- Applications requiring robust, shielded cable connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact and improves safety in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now

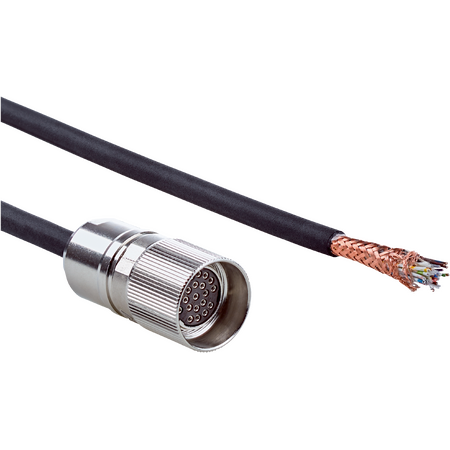

The SICK DOL-2321-G03MPA4 industrial cable assembly is available for immediate purchase, ideal for industrial automation and control applications requiring robust and reliable cable connections.
