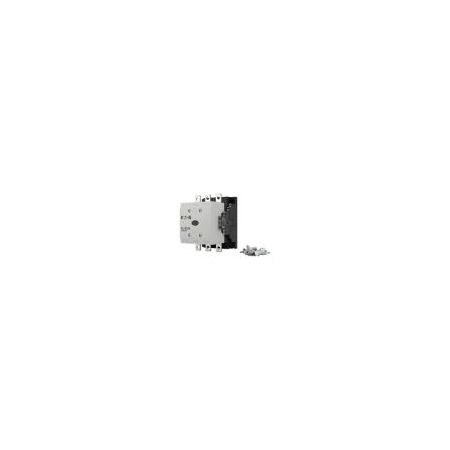

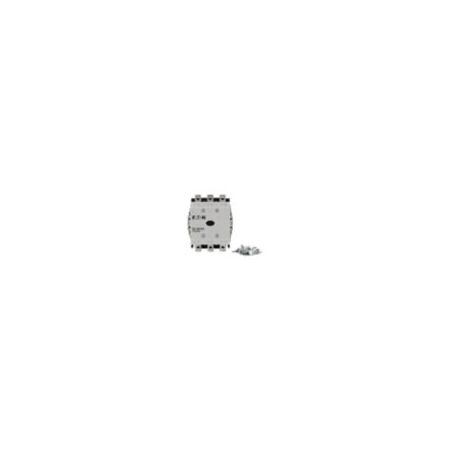

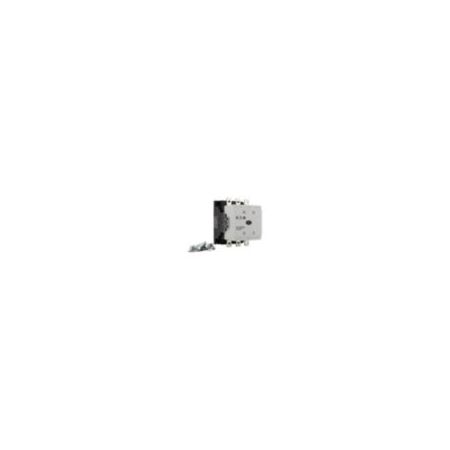

Industrial Motor Contactor 110 kW | 225 A Current | 2 N/O & 2 N/C Contacts | IP00 by Eaton
The Eaton DILM225A/22(RAC240) industrial motor contactor offers a rated operational power of 110 kW and a 225 A current capacity, making it ideal for motor control in industrial environments. With a high mechanical lifespan of 10 million operations and robust design, it ensures reliable performance and safety in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Industrial Motor Contactor 110 kW | 225 A Current | 2 N/O & 2 N/C Contacts | IP00 by Eaton
Brand: Eaton
SKU: Y7-139547
Alternatively Known As: Eaton DILM Contactor, DILM225 Contactor, Industrial Motor Contactor, 110 kW Contactor, AC Motor Contactor
Technical Specifications
- Rated operational power: 110 kW at 380/400 V AC
- Rated operational current (Ie) at AC-3: 225 A
- Number of contacts: 2 N/O and 2 N/C
- Rated control supply voltage (Us): 190-240 V AC, 50/60 Hz
- Switching capacity (main contacts): 250 A
- Rated insulation voltage (Ui): 1000 V
- Rated breaking capacity: 2250 A at 220-690 V
- Mechanical lifespan: 10,000,000 operations
- Electrical lifespan: 100,000 operations
- Operating temperature range: -40 °C to 60 °C
- Degree of protection: IP00
- Terminal capacity: up to 185 mm² flexible cables
- Overvoltage category: III
- Pollution degree: 3
- Shock resistance: up to 10 g mechanical shock
- Duty factor: 100%
- Dimensions (H x L x W): 190mm x 158mm x 140mm
- Weight: 3.54 kg
Key Features
- Rated operational power up to 110 kW at 380/400 V AC
- 2 Normally Open (N/O) and 2 Normally Closed (N/C) contacts
- Screw terminal connections for secure wiring
- Suppressor circuit integrated in actuating electronics
- High mechanical lifespan of 10,000,000 operations
- Electrical lifespan of 100,000 operations under condenser operation
- Protection against direct contact when actuated from front
- Designed for industrial electromagnetic compatibility
- Rated breaking capacity of 2250 A at 220-690 V
- Operating temperature range from -40 °C to 60 °C
- Overvoltage category III and pollution degree 3
- Safe isolation of 1000 V AC between coil and contacts
Professional Installation Requirements
- Installation by a qualified electrician or professional is required to ensure compliance with safety standards and proper operation.
Applications
- Motor control and switching in industrial environments
- Suitable for use with motors of efficiency class IE3
- General industrial electrical switching applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient motor control reducing energy waste
- Designed for long operational life reducing replacement frequency
- Complies with standards ensuring safe and reliable operation minimizing environmental hazards
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller DILM225A/22(RAC240) Contactor is available for immediate purchase, ideal for industrial motor control and switching applications.
