Industrial Motor Contactor | 160 kW Power | 300 A Current | IP00 Protection by Eaton

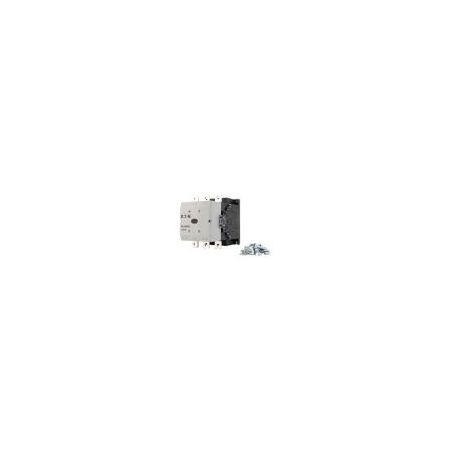

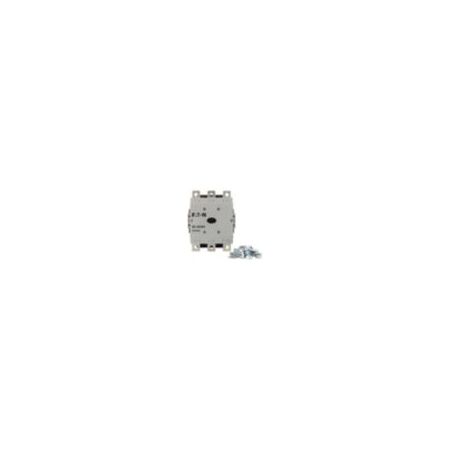

The Eaton DILM300A/22(RA250) industrial motor contactor offers 160 kW power and 300 A current capacity, making it ideal for motor control in industrial environments. With a high mechanical lifespan of 10 million operations and AC/DC coil operation, it ensures reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Industrial Motor Contactor | 160 kW Power | 300 A Current | IP00 Protection by Eaton
Brand: Eaton
SKU: Y7-139556
Alternatively Known As: Eaton DILM Contactor, DILM300A Contactor, Industrial Motor Contactor, AC/DC Contactor 160 kW
Technical Specifications
- Rated operational power: 160 kW at 380/400 V AC
- Rated operational current (Ie) at AC-3, 380-415 V: 300 A
- Number of contacts: 2 N/O and 2 N/C
- Rated control supply voltage (Us): 110 - 250 V AC/DC
- Mechanical lifespan: 10,000,000 operations
- Electrical lifespan: 100,000 operations (condensor operation)
- Operating temperature range: -40 °C to 60 °C
- Degree of protection: IP00
- Rated impulse withstand voltage (Uimp): 8000 V AC
- Switching capacity (main contacts): 350 A
- Connection type: Screw terminals
- Pollution degree: 3
- Overvoltage category: III
- Shock resistance: 10 g mechanical shock per IEC/EN 60068-2-27
- Power consumption (coil): 250 W pull-in power at 50/60 Hz
- Duty factor: 100%
- Dimensions (H x L x W): 189mm x 208mm x 140mm
- Weight: 7.1 kg
Key Features
- Rated operational power up to 160 kW at 380/400 V AC
- 2 normally open (N/O) and 2 normally closed (N/C) contacts
- AC and DC coil operation with rated control supply voltage 110-250 V AC/DC
- Screw terminal connections for secure wiring
- High mechanical lifespan of 10,000,000 operations
- Electrical lifespan of 100,000 operations under condenser operation
- Protection against direct contact with terminal shroud
- Rated impulse withstand voltage of 8000 V AC
- Designed for industrial electromagnetic compatibility
- Operating temperature range from -40 °C to 60 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or electrical engineer familiar with industrial contactors and motor control equipment to ensure compliance with safety and operational standards.
Applications
- Motor control and switching in industrial environments
- Use in electrical panels for motor starters
- Suitable for AC and DC operation in industrial automation
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- High operational efficiency reduces energy waste during motor switching
- Durable design extends product life, reducing replacement frequency and waste
Warranty Information
Warranty terms as provided by Eaton, typically covering manufacturing defects. Please refer to Eaton's official warranty policy.
Available Now
The Eaton Moeller® series DILM300A/22(RA250) Contactor is available for immediate purchase. Ideal for industrial motor control and automation applications requiring reliable AC/DC contactors.
