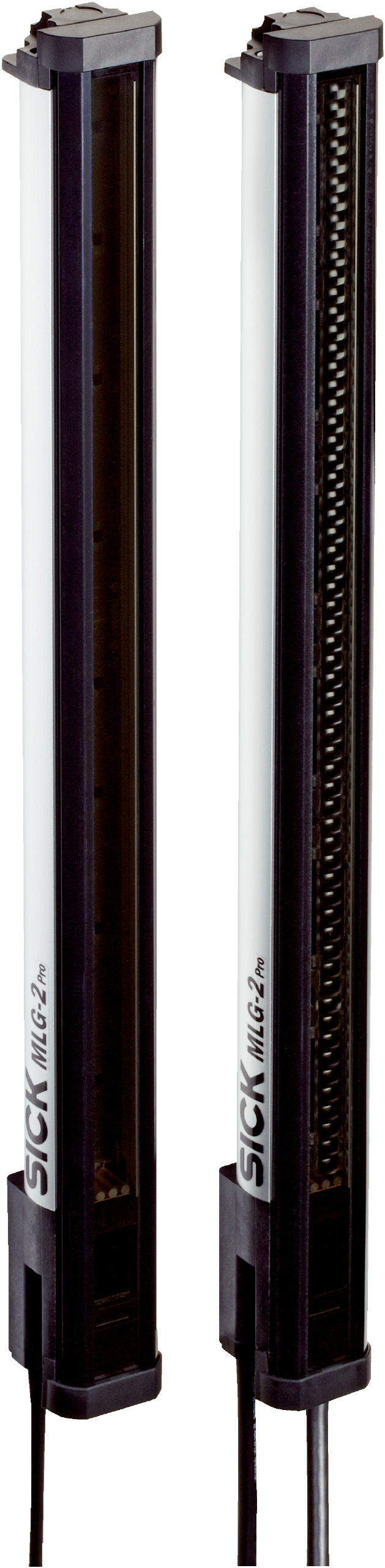

Industrial Object Detection Sensor | Pro Extended Functionality | 75 Beams & IP65/IP67 Rated | by SICK
The Industrial Object Detection Sensor MLG10A-0740B10801 features a pro extended functionality with 75 beams and a minimum detectable object size of just 10 mm. Ideal for industrial automation, this sensor excels in object detection and measurement applications, ensuring high accuracy and reliability in various environments. With an IP65/IP67 rated enclosure, it offers robust protection against dust and water, making it perfect for demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Pro - Extended functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 10 mm
- Number of beams: 75
- Detection height: 740 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 58.75 mA
- Power consumption receiver: 135 mA
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Connection type: M12 connectors (5-pin, 8-pin, 4-pin D-coded)
- Enclosure rating: IP65, IP67
- Response time: 7.1 ms
- Operating range: 8.5 m
- Maximum range: 12 m
- Operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Data interface: IO-Link V1.1, analog current output 4-20 mA
- Cycle time: 2.3 ms
- Process data length: 32 Byte
- Dimensions (H x L x W): 740mm x 100mm x 50mm
- Weight: 1.75 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle with 75 beams
- Minimum detectable object size of 10 mm
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- IP65 and IP67 rated enclosure for robust protection
- Push-pull PNP/NPN switching output
- Cable synchronization type
- QuickFix brackets included for easy mounting
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards to ensure proper setup and operation.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition for industrial automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Energy-efficient LED infrared light source minimizes power consumption
- Robust design reduces electronic waste through extended product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG10A-0740B10801 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
