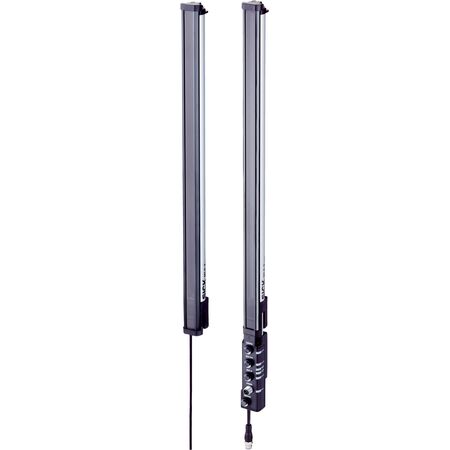

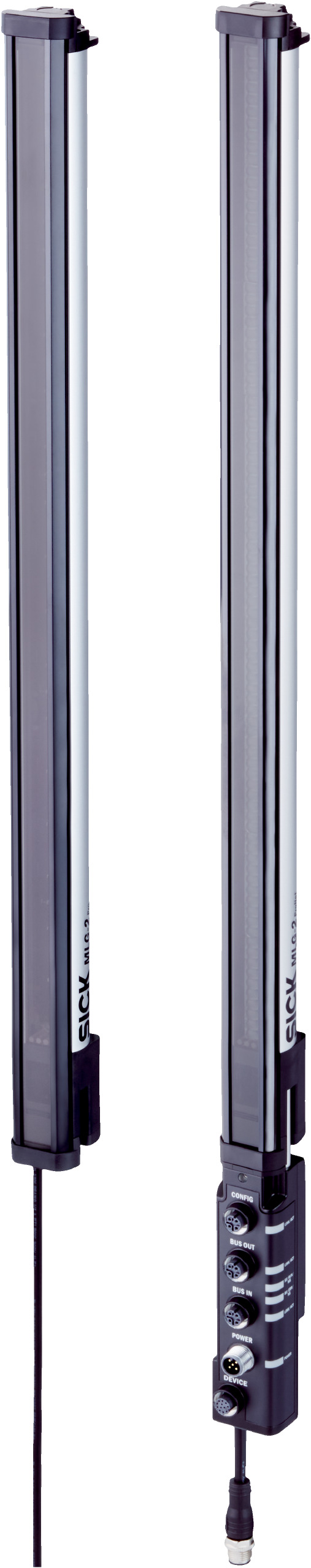

Industrial Object Detection Sensor | ProNet Extended Functionality | 36 Beams | IP65 & IP67 Rated | by SICK
The Industrial Object Detection Sensor is designed for precise object detection and measurement, featuring ProNet extended functionality and a robust 36-beam system. With a detection height of 1,750 mm and an IP65/IP67 enclosure rating, it's perfect for industrial automation applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: ProNet with extended functionality including fieldbus
- Sensor principle: Sender/receiver
- Minimum detectable object: 50 mm
- Number of beams: 36
- Detection height: 1,750 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 56.8 mA
- Power consumption receiver: 127.2 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: less than 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Response time: 4.1 ms
- Maximum range: 7 m
- Operating range: 5 m
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation 10-150 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Direct 150,000 lx, Indirect 200,000 lx
- Operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 1800mm x 100mm x 200mm
- Weight: 3.8 kg
Key Features
- ProNet extended functionality including fieldbus
- Sender/receiver sensor principle
- 36 beams with 50 mm beam separation
- Detection height of 1,750 mm
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Enclosure rating IP65 and IP67
- Push-pull PNP/NPN switching output
- Cable synchronization type
- QuickFix brackets included for easy mounting
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper setup, electrical safety, and compliance with local regulations.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Dust- and sunlight-resistant design reduces maintenance and extends product life
- Energy-efficient LED infrared light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK MLG50N-1750H10501 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
