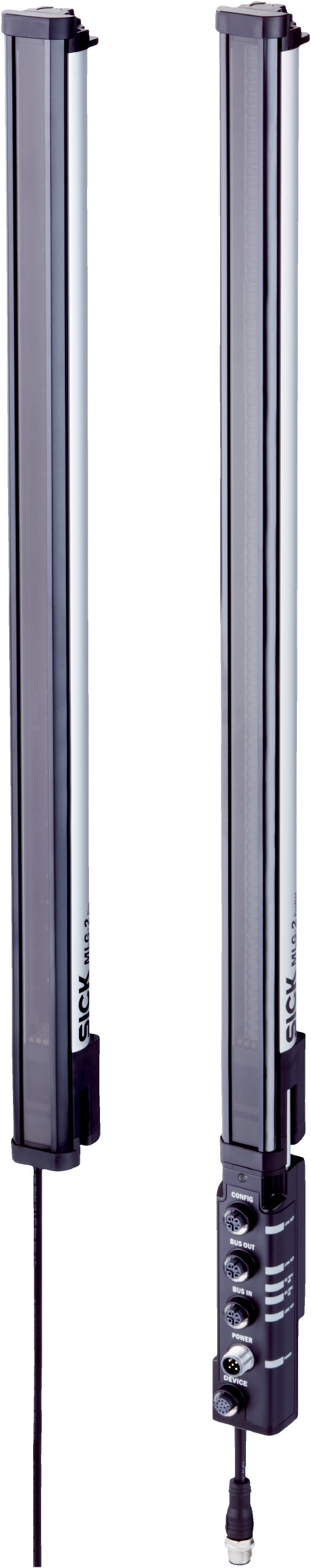

Industrial Object Detection Sensor | ProNet Extended Functionality | 60 Beams | IP65/IP67 Rated | by SICK
The Industrial Object Detection Sensor with ProNet extended functionality is designed for precise object detection and measurement in industrial automation. Featuring 60 beams with a minimum detectable object size of 25 mm, this sensor operates effectively in various environments, ensuring high measurement accuracy and robust protection with IP65/IP67 ratings. Ideal for applications like object recognition and height classification, it’s built to withstand harsh conditions while delivering reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: ProNet with extended functionality including fieldbus
- Sensor principle: Sender/receiver
- Minimum detectable object: 25 mm
- Number of beams: 60
- Beam separation: 25 mm
- Detection height: 1475 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 58 mA
- Power consumption receiver: 132 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: less than 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen material: PMMA
- Maximum range: 7 m
- Operating range: 5 m
- Response time: 5.9 ms
- Shock resistance: Continuous shocks 10 g, single shocks 15 g
- Vibration resistance: Sinusoidal oscillation 10-150 Hz at 5 g
- EMC: EN 60947-5-2
- Ambient light immunity: Direct 150,000 lx, Indirect 200,000 lx
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 1600mm x 100mm x 150mm
- Weight: 3.25 kg
Key Features
- ProNet extended functionality including fieldbus
- Sender/receiver sensor principle
- Minimum detectable object size of 25 mm
- 60 beams with 25 mm beam separation
- Cable synchronization type
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Enclosure rating IP65 and IP67 for robust protection
- Push-pull PNP/NPN switching output
- Plug connection type M12 with 5-pin and 12-pin connectors
- Aluminum housing with PMMA front screen
- Shock resistance up to 15 g and vibration resistance up to 5 g
- Operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and fieldbus integration to ensure proper setup and safety compliance.
Applications
- Switching output for object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Measurement of outside and inside dimensions
- Object position and hole position measurement
- Zone definition for precise monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing and robust IP65/IP67 rating ensure long product life and reduced waste
- Energy-efficient LED infrared light source minimizes power consumption
- High measurement accuracy reduces errors and material waste in industrial processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

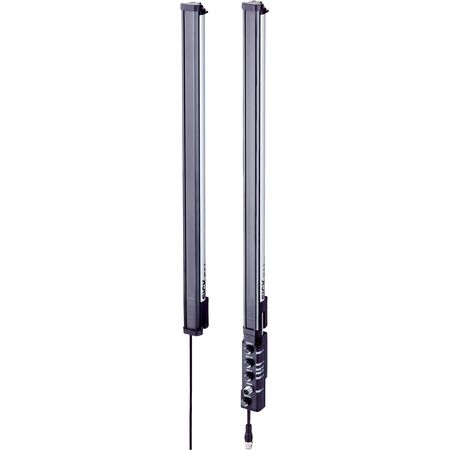

The SICK MLG25N-1475E10501 sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
