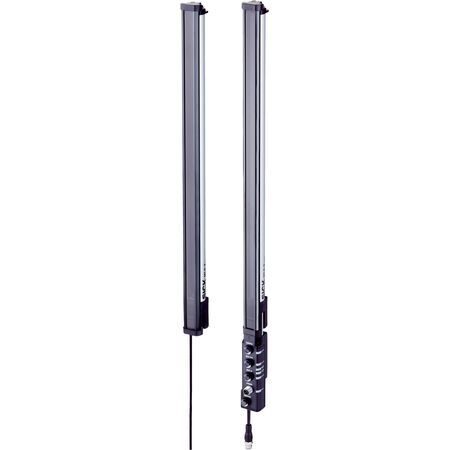

Industrial Object Detection Sensor | ProNet Device with Extended Functionality | IP65 & IP67 Rated | by SICK
The Industrial Object Detection Sensor is designed for precise object measurement and recognition, featuring a ProNet device version with extended functionality and a minimum detectable object size of 5 mm. With an IP65 and IP67 rating, this robust sensor is perfect for industrial automation applications, ensuring high measurement accuracy and durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 600mm x 150mm x 100mm
- Weight: 1.45 kg
Key Features
- ProNet device version with extended functionality including fieldbus
- Sender/receiver sensor principle
- Minimum detectable object size of 5 mm
- 120 beams with 5 mm beam separation
- Cable synchronization type
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- Housing made of aluminum with PMMA front screen
- Enclosure rating IP65 and IP67
- Shock resistance up to 15 g and vibration resistance up to 5 g
- Operating temperature range from -30°C to +55°C
- Includes sender, receiver, fieldbus module, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and integration with fieldbus systems.
Applications
- Object detection and width measurement
- Object recognition
- Height classification
- Hole detection and size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum housing and high protection rating reduce need for frequent replacements
- Energy-efficient LED infrared light source minimizes power consumption
- Robust design ensures long operational life reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG05N-0595N10501 sensor is available for immediate purchase, ideal for industrial automation and precise object measurement applications.
