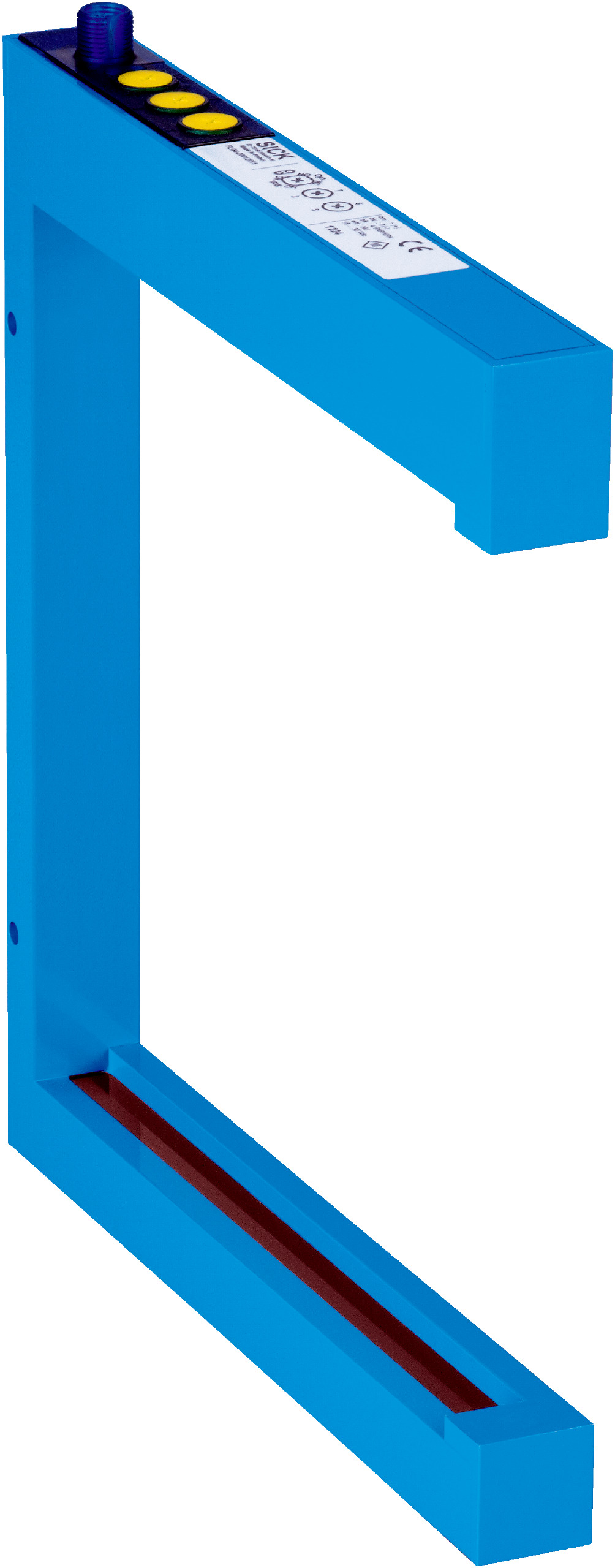

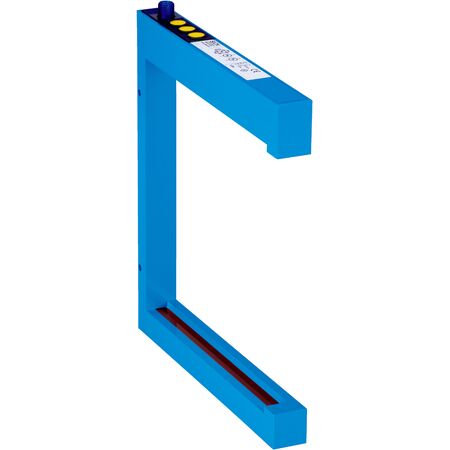

Industrial Object Sensor SICK FLG2-20018021 | 2 mm MDO | IP65 Rated | 5000 Hz Switching Frequency | by SICK
The Industrial Object Sensor SICK FLG2-20018021 features a sender/receiver sensor principle with a minimum detectable object size of 2 mm dynamic and 6 mm static. With a detection height of 180 mm and an adjustable light/dark switching output, this sensor is perfect for industrial automation, quality control, and packaging applications. Its robust aluminum housing and IP65 rating ensure durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object (MDO): 2 mm dynamic, 6 mm static
- Beam separation: 2 mm
- Detection height: 180 mm
- Output function: Light/dark switching adjustable by rotary switch
- Wave length: 880 nm
- Supply voltage: DC 18 V to 30 V
- Ripple: < 10%
- Output current max: ≤ 100 mA
- Off delay: 0 s to 5 s
- Initialization time: 0.3 s
- Switching output: PNP, NPN
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum, painted
- Indication: LED
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Switching frequency: 5,000 Hz
- Detection area (W x H): 180 mm x 200 mm
- Response time: < 0.1 ms
- Shock resistance: EN 60068-2-27
- Vibration resistance: EN 60068-2-6
- EMC: EN 60947-5-2
- Ambient light immunity: Sunlight 10,000 lx
- Operating temperature: 0 °C to +60 °C
- Storage temperature: -20 °C to +80 °C
- Dimensions (H x L x W): 230mm x 25mm x 242mm
- Weight: 1 kg
Key Features
- Open device version with sender/receiver sensor principle
- Minimum detectable object size of 2 mm dynamic and 6 mm static
- Detection height of 180 mm with beam separation of 2 mm
- Light/dark switching output adjustable via rotary switch
- High switching frequency of 5,000 Hz for fast response
- Robust aluminum painted housing with IP65 enclosure rating
- LED indication for operational status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing lines
- Packaging and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Low power consumption with efficient DC voltage operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FLG2-20018021 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
