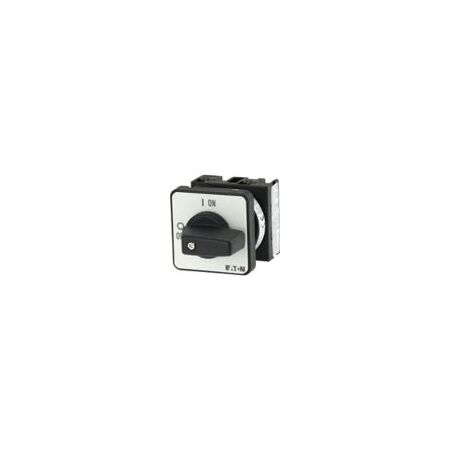

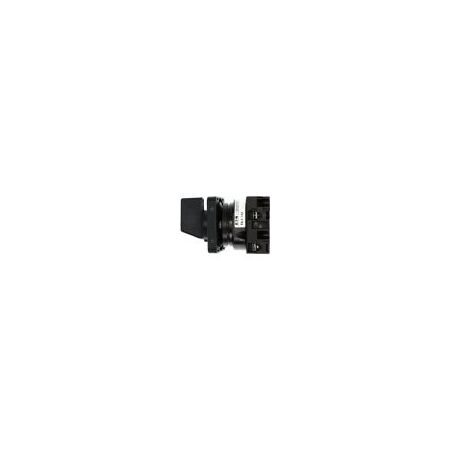

Industrial On-Off Switch | 20A Rated Current | IP65 Protection | Flush Mount by Eaton
This industrial on-off switch features a 20A rated current and IP65 protection, making it ideal for motor disconnect applications and control panels. Built for reliability, it offers a mechanical lifespan of 400,000 operations and is designed for professional installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Industrial On-Off Switch | 20A Rated Current | IP65 Protection | Flush Mount by Eaton
Brand: Eaton
SKU: Y7-88709
Alternatively Known As: Eaton T0 On-Off Switch, Eaton Moeller T0 Switch, 20A Flush Mount Switch, Industrial On-Off Switch, Motor Disconnect Switch
Technical Specifications
- Rated operational current (Ie) at AC-3, 220-240 V: 11.5 A
- Rated operational current (Ie) at AC-3, 380-415 V: 11.5 A
- Rated operational current (Ie) at AC-3, 500 V: 9 A
- Rated operational current (Ie) at AC-3, 660-690 V: 4.9 A
- Rated operational current (Ie) at AC-21, 440 V: 20 A
- Rated breaking capacity at 220/230 V: 100 A
- Rated breaking capacity at 400/415 V: 110 A
- Rated breaking capacity at 500 V: 80 A
- Rated breaking capacity at 660/690 V: 60 A
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Mechanical lifespan: 400,000 operations
- Operating frequency: 1200 operations/hour
- Degree of protection: NEMA 12, IP65 front side
- Terminal capacity: 2 x (0.75 - 2.5) mm² flexible with ferrules, 1 x (0.75 - 2.5) mm² solid or stranded
- Switching angle: 90°
- Ambient operating temperature: -25 °C to 50 °C
- Shock resistance: 15 g mechanical
- Mounting method: Flush mounting
- Dimensions (H x L x W): 48mm x 76mm x 48mm
- Weight: 0.083 kg
Key Features

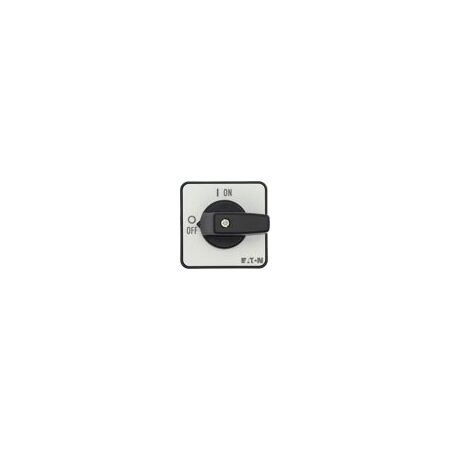

- Flush mounting design with black thumb grip and front plate
- 2 pole, 1 contact unit
- Rated operational current up to 20 A
- Mechanical lifespan of 400,000 operations
- Degree of protection: NEMA 12, IP65 front side
- Rated impulse withstand voltage 6000 V AC
- Safe isolation up to 440 V AC between contacts
- Operating temperature range -25 °C to 50 °C
- Switching angle 90°
- Suitable for front mounting 4-hole branch circuits
- Shock resistance 15 g mechanical
- Terminal capacity supports flexible and solid conductors from 0.75 to 2.5 mm²
- Rated breaking capacity up to 110 A depending on voltage
- Complies with IEC/EN 60947-3 and other international standards
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into electrical systems.
Applications
- Industrial control panels
- Motor disconnect applications
- Branch circuit switching
- Electrical equipment requiring reliable on-off switching
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Complies with international safety standards ensuring safe operation and reduced risk of electrical faults
Warranty Information
Warranty terms as per Eaton standard product warranty policy. Typically covers manufacturing defects for a specified period.
Available Now
The Eaton Moeller® series T0 On-Off switch is available for immediate purchase, ideal for industrial and motor control applications requiring reliable and durable switching solutions.
