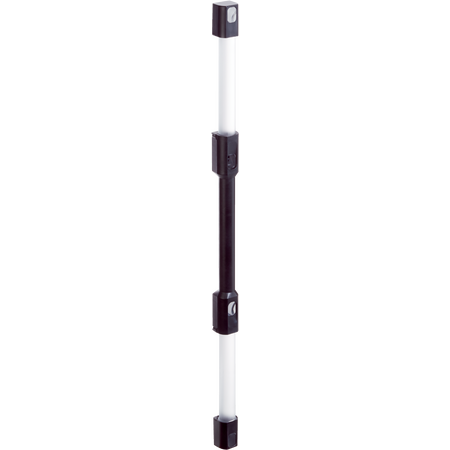

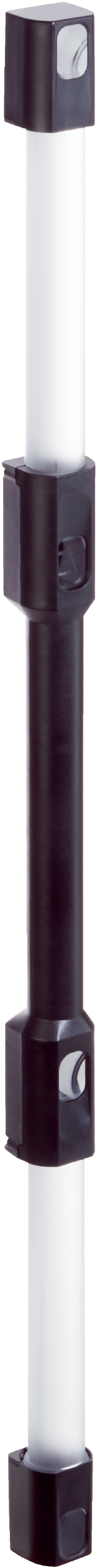

Industrial Passive Prism Sensor | Active/Passive Functionality | 7m Scanning Range | 4 Beams | by SICK

BRAND: SICK
SKU: 1103067
$1,103.80 List price: $1,387.40
+ −
30 Days Return Electricians Unlock Trade Access
The Industrial Passive Prism Sensor PSN02-3301 features an active/passive functional principle and a remarkable scanning range of up to 7 meters. With 4 beams and 300 mm beam separation, it's designed for normal industrial environments, ensuring reliable performance and compliance with safety standards. Its durable design minimizes waste, making it an eco-friendly choice for your industrial applications.

Alternatively Known As: SICK deTem4 A/P Passive Unit, PSN02-3301 Sensor, Industrial Passive Prism Sensor

Technical Specifications
  • Product version: deTem4 A/P
  • Functional principle: Active/passive
  • System part: Passive unit
  • Type of diversion: Prism deflection
  • Scanning range category: Great scanning range
  • Scanning range: 7 m
  • Number of beams: 4
  • Beam separation: 300 mm
  • Ambient operating temperature: –30 °C to +55 °C
  • Storage temperature: –30 °C to +70 °C
  • Air humidity: 15% to 95%, Non-condensing
  • Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
  • Shock resistance: 15 g / 6 ms (EN 60068-2-27)
  • Class: 3M4 (IEC TR 60721-4-3)
  • Housing cross-section: 42.5 mm x 46.8 mm
  • Housing material: PMMA
  • Dimensions (H x L x W): 46.8mm x 150mm x 42.5mm
  • Weight: 0.95 kg
Key Features
  • Active/passive functional principle
  • Prism deflection type of diversion
  • Great scanning range up to 7 m
  • 4 beams with 300 mm beam separation
  • Passive unit supplied
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
  • Normal industrial environment
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste.
Warranty Information

Standard manufacturer warranty applies.

Available Now

The SICK PSN02-3301 deTem4 A/P Passive Unit is available for immediate purchase, ideal for industrial environment applications.
