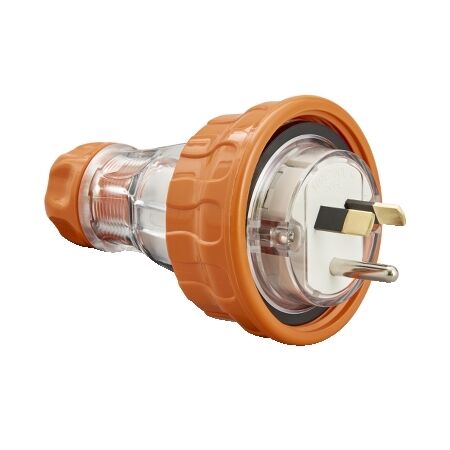

Industrial Plug Top 3 PIN | 10A 250V | IP66 Rated | Electric Orange by Clipsal

BRAND: Clipsal
SKU: 56P310SL-EO
$41.80 List price: $62.60
+
Industrial plug top with 10A current and 250V voltage—ideal for machinery and equipment. Built for industrial and commercial use, with IP66 protection against dust and water.

Product Name/Title: Clipsal - 56 Series, Plug Top, Straight, 3 PIN, 10A, 250V, IP66 - Electric Orange

Brand: Clipsal

SKU: 56P310SL-EO

Alternatively Known As: Clipsal 56 Series Plug, Industrial Plug, 3 PIN Plug

Technical Specifications
  • Rated current: 10A
  • Rated operational voltage: 250V AC 50Hz
  • Material: Polycarbonate housing, brass pins
  • IP Rating: IP66
  • Cable entry: Cable gland
  • Wire stripping length: 35mm
  • Poles description: 1P + N + E
  • Dimensions (H x L x W): 67mm x 112.5mm x 67mm
  • Weight: 0.12 kg
Key Features
  • IP66 rated for protection against dust and water
  • Rated current of 10A and operational voltage of 250V AC
  • Screw terminal connections for secure wiring
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Power supply for machinery and equipment
  • Commercial: Small commercial and utility applications
Standards & Compliance
  • Complies with AS/NZS 3112 and AS 60529 for safety and performance.
Environmental Benefits
  • Compliant with RoHS directives, reducing hazardous substances.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Plug Top is available now for immediate purchase. Ideal for industrial and commercial applications.

56P310SL-EO (56P310SL-EO, 252 Kb) [Download]
