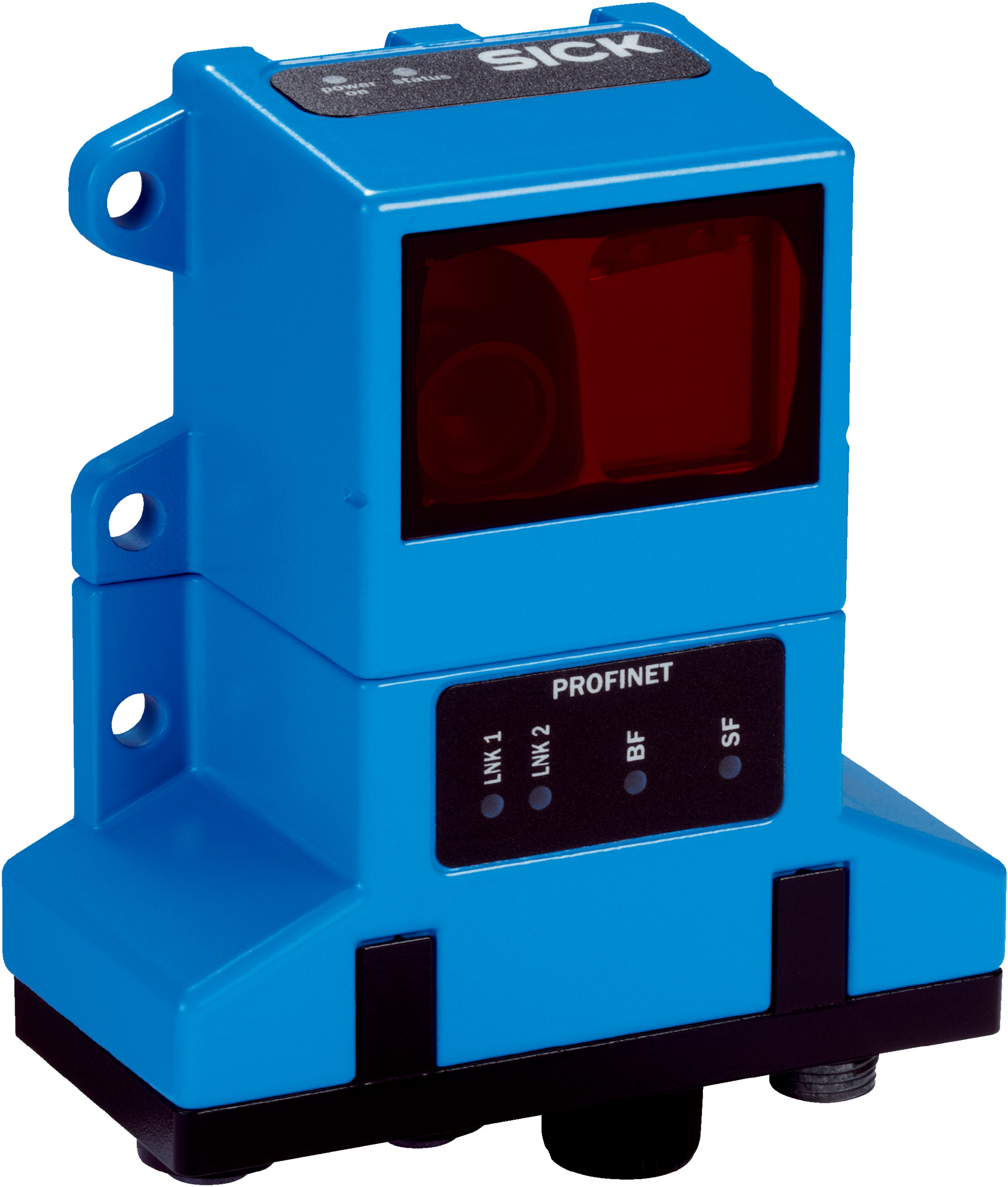

Industrial Position Sensor SICK OLM200-1009 | 10,000 m Measuring Range | 0.1 mm Resolution | IP65 Rated | by SICK
The SICK OLM200-1009 Industrial Position Sensor offers a remarkable measuring range of up to 10,000 m with high resolution options from 0.1 mm to 100 mm. Designed for industrial automation, this sensor features a fast response time of 10 ms and a robust IP65 enclosure, making it ideal for precise position and speed measurement in harsh environments. Perfect for applications in material handling, robotics, and quality control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 m to 10,000 m
- Resolution: 0.1 mm, 1 mm, 10 mm, 100 mm
- Repeatability: 0.15 mm
- Response time: 10 ms
- Output time: 2.5 ms
- Light source: Red LED
- Accuracy of speed output: ±5 mm/s
- Max movement speed: 7 m/s
- Reading distance: 100 mm ± 20 mm
- Barcode width: 30 mm
- Supply voltage: DC 18 V to 30 V
- Power consumption: < 5.5 W
- Enclosure rating: IP65
- Protection class: III
- Operating temperature: -30°C to +60°C
- Storage temperature: -40°C to +75°C
- EMC: EN 61000-6-2 / EN 61000-6-4
- Vibration resistance: DIN/EN 60068-2-6, DIN/EN 60068-2-64
- Shock resistance: DIN/EN 60068-2-27
- Dimensions (H x L x W): 80mm x 200mm x 150mm
- Weight: 2.5 kg
Key Features
- Measuring range up to 10,000 m
- High resolution options: 0.1 mm to 100 mm
- Fast response time of 10 ms with output time of 2.5 ms
- Red LED light source for reliable barcode reading
- Robust IP65 rated enclosure for harsh environments
- Wide operating temperature range from -30°C to +60°C
- Supports PROFINET interface for industrial communication
- Multifunctional digital input and PNP/NPN digital output
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Material handling and conveyor systems
- Quality control and process monitoring
- Robotics and machine tool positioning
Standards & Compliance
- AS/NZS 61000-6-2 – Electromagnetic compatibility (EMC) – Immunity for industrial environments
- AS/NZS 61000-6-4 – Electromagnetic compatibility (EMC) – Emission standard for industrial environments
Environmental Benefits
- Low power consumption under 5.5 W reduces energy usage
- Durable IP65 housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies, typically 12 months from date of purchase.
Available Now
The SICK OLM200-1009 sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
