Industrial Power Plug 32A | 500V AC | IP66 Rated | Electric Orange by Clipsal

BRAND: Clipsal
SKU: 56P532-EO
$104.30 List price: $156.50
+ −
30 Days Return Delivery Options
Industrial power plug with 32A current and 500V AC voltage—ideal for machinery and equipment. Built for industrial and commercial use, with IP66 protection and secure screw terminal connections.

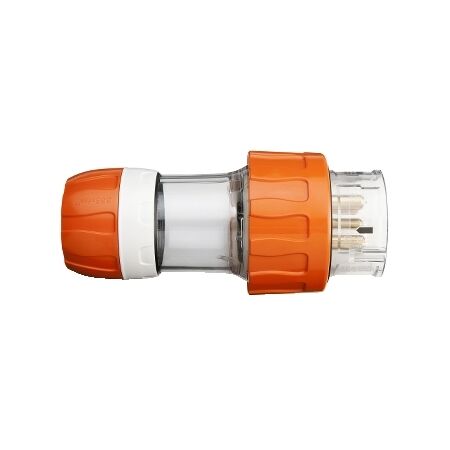

Product Name/Title: Clipsal - 56 Series, Straight Plug, IP66, 500V 32A - 5 Round Pins Electric Orange

Brand: Clipsal

SKU: 56P532-EO

Alternatively Known As: Industrial Power Plug, 32A Plug, IP66 Plug

Technical Specifications
  • Rated current: 32A
  • Rated operational voltage: 500V AC 50Hz
  • Material: Polycarbonate housing, brass pins
  • IP Rating: IP66
  • Temperature range: -25 to 75 °C
  • Cable entry: Cable gland
  • Poles description: 3P + N + E
  • Dimensions (H x L x W): 79mm x 168mm x 79mm
  • Weight: 0.42 kg
Key Features
  • IP66 rated for protection against dust and water
  • Rated current of 32A and operational voltage of 500V AC
  • Screw terminal connections for secure wiring
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Power supply for machinery and equipment
  • Commercial: Utility applications in small businesses
Standards & Compliance
  • Complies with AS/NZS 3123 for safety and performance standards.
Environmental Benefits
  • Compliant with RoHS directives and environmental standards.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Straight Plug is available now for immediate purchase. Ideal for industrial and commercial applications.

56P532-EO (56P532-EO, 224 Kb) [Download]
