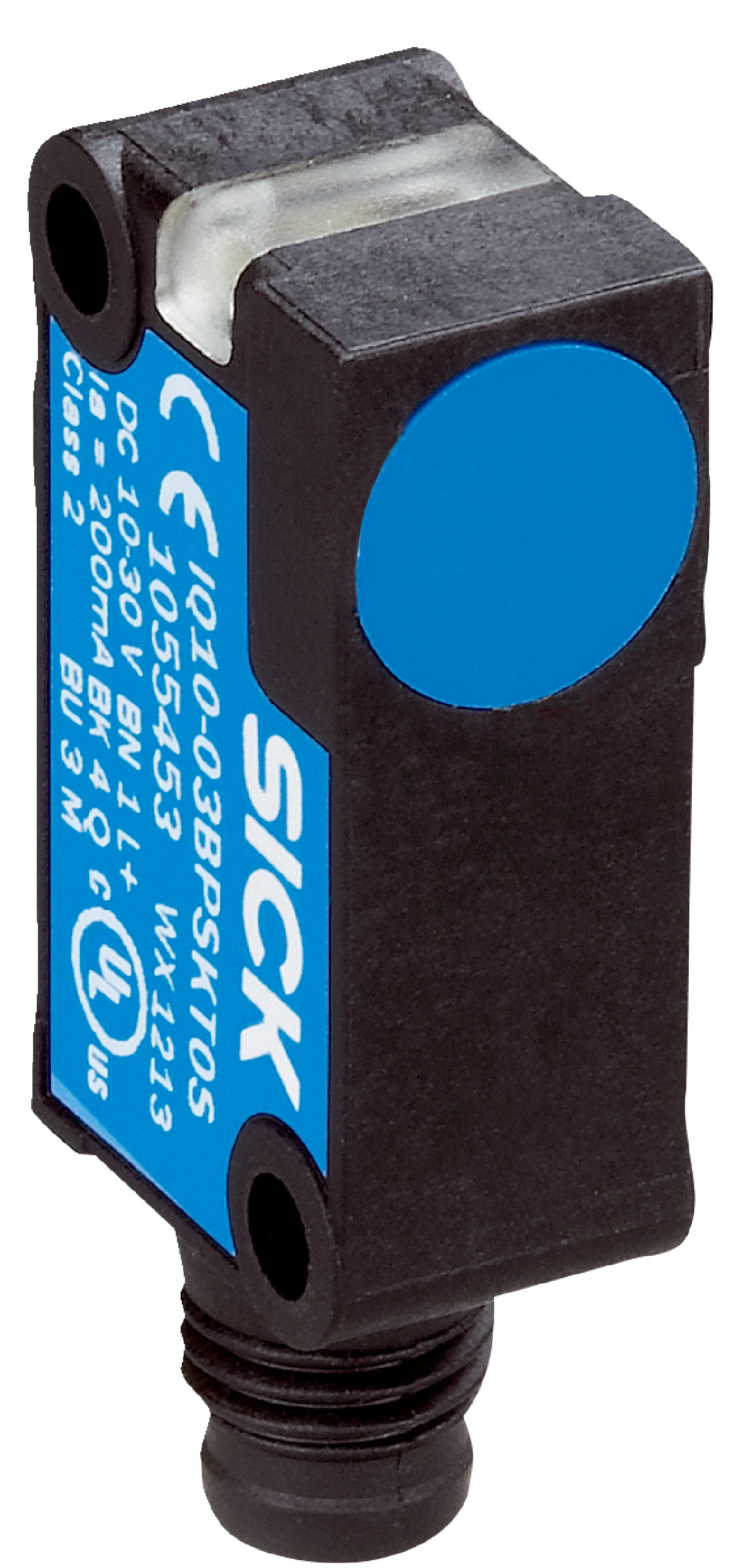

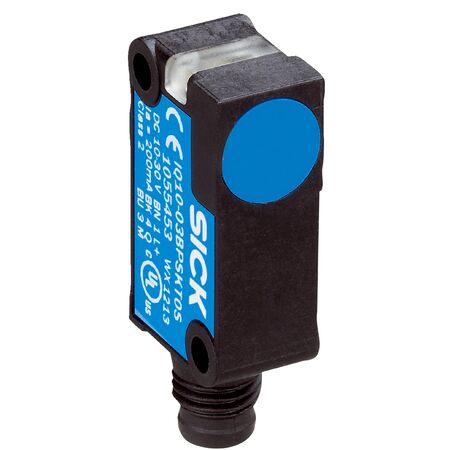

Industrial Proximity Sensor IQ10-03BPPKQ8S | IP68 Rated | 2000 Hz Switching Frequency | PNP Output | by SICK
The Industrial Proximity Sensor IQ10-03BPPKQ8S is designed for reliable object detection in industrial automation. With a high switching frequency of 2000 Hz and an IP68 rated enclosure, it ensures durability in harsh environments. Ideal for machine safety and control systems, this sensor features a flush mount design and robust protection against short circuits, making it perfect for manufacturing and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Industrial Proximity Sensor IQ10-03BPPKQ8S | IP68 Rated | 2000 Hz Switching Frequency | PNP Output | by SICK
Brand: SICK
SKU: 1055467
Alternatively Known As: Proximity Sensor IQ10, Flush Mount Proximity Sensor, PNP Proximity Switch, Industrial Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 2,000 Hz
- Switching output: PNP complementary
- Connection type: Cable with M12 male connector, 4-pin, 0.2 m
- Enclosure rating: IP68
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Ambient operating temperature: -25 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Housing material: Plastic, VISTAL®
- Sensing face material: Plastic, VISTAL®
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Dimensions (H x L x W): 28mm x 16mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with flush installation
- Sensing range of 3 mm
- High switching frequency of 2,000 Hz
- PNP complementary switching output
- IP68 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Manufacturing process monitoring
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 housing reduces need for frequent replacements
- Low power consumption with DC 4-wire electrical wiring
- Robust design minimizes electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IQ10-03BPPKQ8S proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
