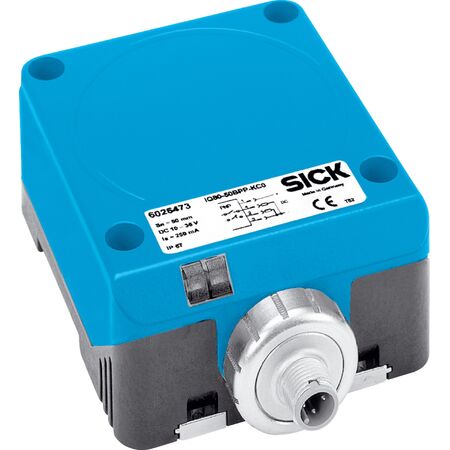

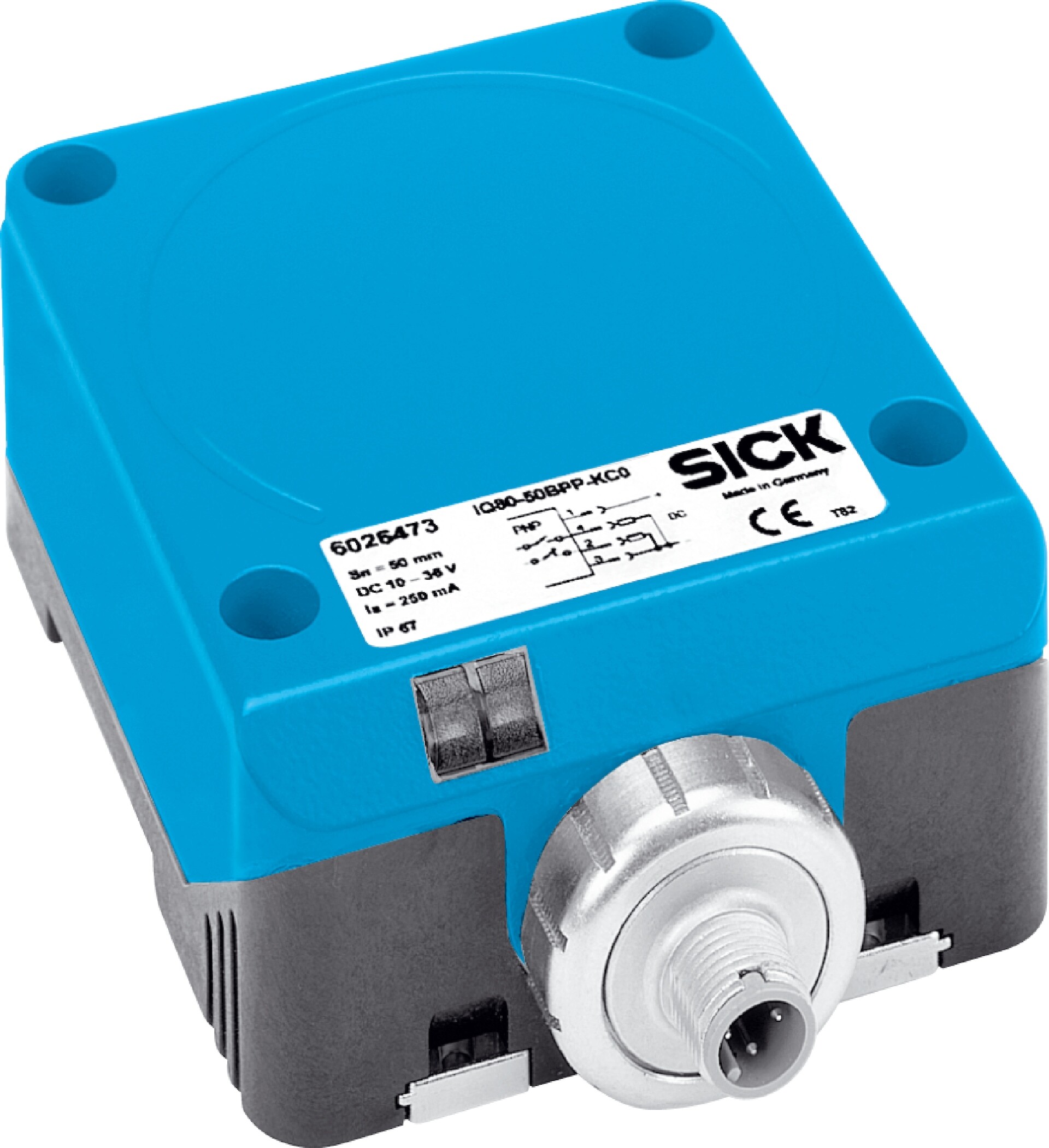

Industrial Proximity Sensor IQ80-50BPP-KC0 | 50mm Sensing Range | IP67 Rated | PNP Output | by SICK
The Industrial Proximity Sensor IQ80-50BPP-KC0 features a robust zinc diecast housing and a sensing range of 50 mm, making it ideal for industrial automation and safety monitoring applications. With an IP67 rating for dust and water protection, this sensor ensures reliable performance in challenging environments. Designed for flush, non-flush, and overflush installations, it’s perfect for manufacturing process control and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard zinc diecast design
- Sensing range Sn: 50 mm
- Safe sensing range Sa: 40.5 mm
- Installation type: Flush, Non-flush, Overflush
- Switching frequency: 70 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP complementary
- Electrical wiring: DC 4-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 36 V DC
- Voltage drop: ≤ 2.5 V
- Hysteresis: 3% to 20%
- Temperature drift: ± 15%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 250 mA
- Short-circuit protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Zinc diecast (GD Zn)
- Sensing face material: Plastic, PPE
- MTTFD: 1,859 years
- Mission time: 20 years
- Dimensions (H x L x W): 92mm x 40mm x 80mm
- Weight: 0.3 kg
Key Features
- Standard housing design with zinc diecast material
- Sensing range of 50 mm with safe sensing range of 40.5 mm
- Flush, non-flush, and overflush installation types
- Switching frequency of 70 Hz with PNP complementary output
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
- Wide operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor systems to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable zinc diecast housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IQ80-50BPP-KC0 Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
