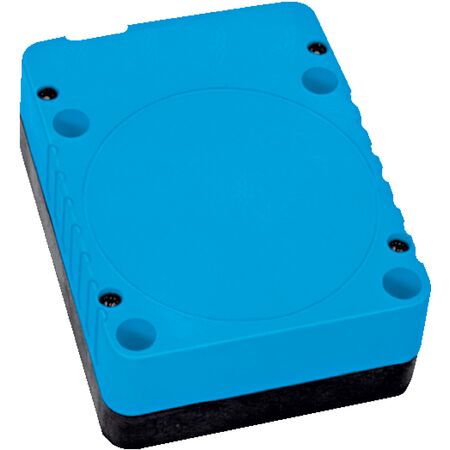

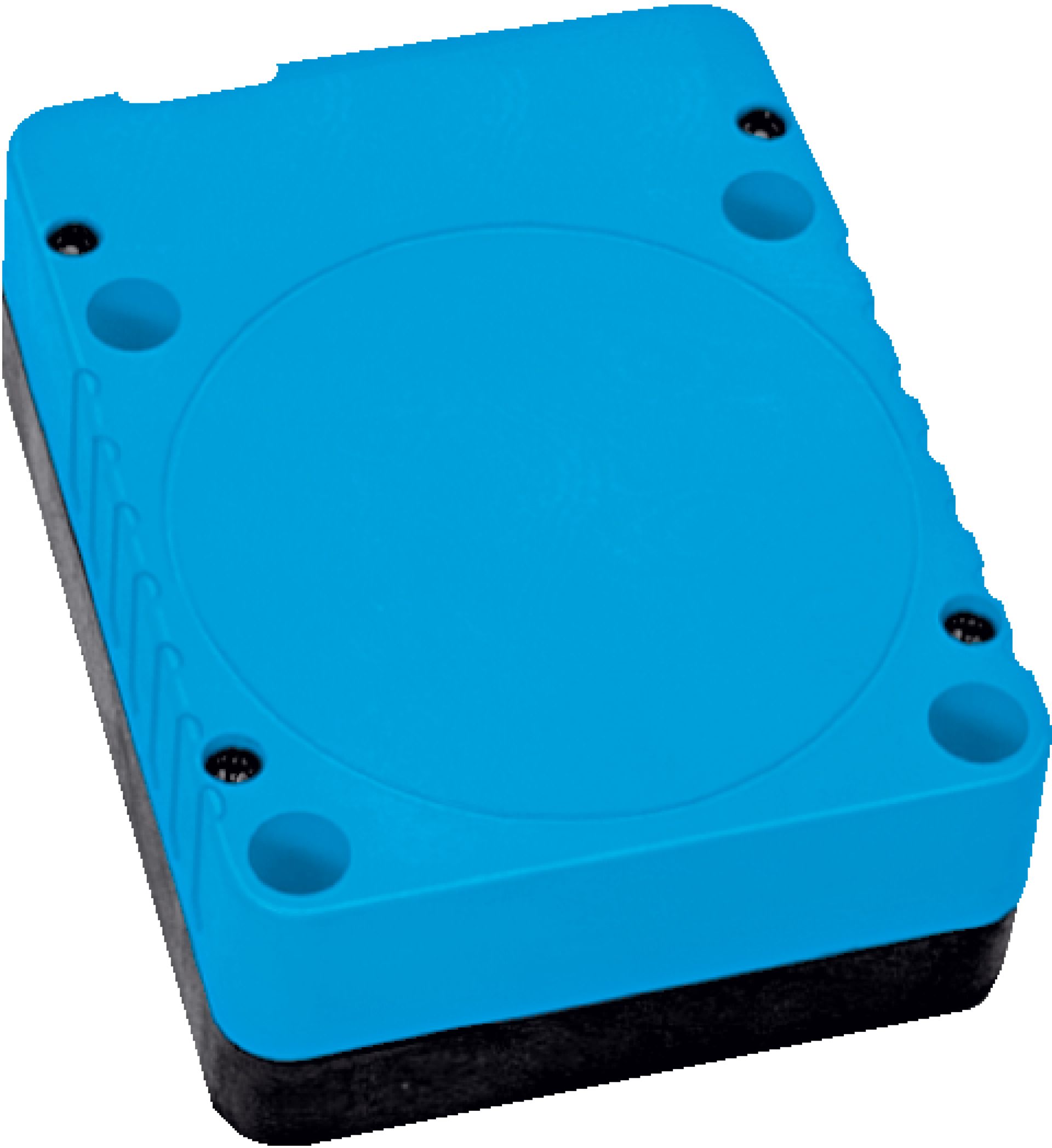

Industrial Proximity Sensor IQ80-60NUP-KK0 | IP65 Rated | 60mm Sensing Range | PNP/NPN Configurable | by SICK
The Industrial Proximity Sensor IQ80-60NUP-KK0 is designed for reliable object detection in industrial automation. With a sensing range of 60 mm and an IP65 enclosure rating, it ensures durability in harsh environments. Ideal for manufacturing process control and safety monitoring, this sensor features a wire configurable PNP/NPN output, making it versatile for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, Plastic PPE
- Sensing range Sn: 60 mm
- Safe sensing range Sa: 48.6 mm
- Installation type: Non-flush
- Switching frequency: 4 Hz
- Connection type: Terminal connection with M20 gland
- Switching output: PNP / NPN, wire configurable NC or NO
- Electrical wiring: AC/DC 2-wire
- Enclosure rating: IP65
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Voltage drop: ≤ 6.5 V (AC)
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 10%
- Temperature drift: ± 10%
- EMC: EN 55011 class B, EN 60947-5-2
- Continuous current Ia: ≤ 350 mA
- Off-state current: ≤ 2.5 mA (AC 250 V)
- Minimum load current: > 5 mA
- Short-time withstand current: 2.2 A
- Cable gland clamping area: M20 1.5
- Wire size: ≤ 2.5 mm²
- Short-circuit protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +80 °C
- Protection class: II
- Rated insulation voltage Ui: 250 V AC
- Usage category: AC-140, DC-13
- Contamination rating: 3
- Rated impulse withstand voltage: 4 kV
- Dimensions (H x L x W): 105mm x 40mm x 80mm
- Weight: 0.3 kg
Key Features
- Standard design housing with plastic PPE material
- Non-flush installation type
- Sensing range of 60 mm with safe sensing range of 48.6 mm
- Switching frequency of 4 Hz
- Wire configurable PNP/NPN switching output with NC or NO function
- Terminal connection with M20 gland
- Enclosure rating IP65 for dust and water protection
- Wide supply voltage range from 20 V AC/DC to 250 V AC/DC
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +80 °C
- Short-circuit protection and rated insulation voltage of 250 V AC
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and safety standards to ensure proper sensor function and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with AC/DC 2-wire electrical wiring
- High resistance to environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IQ80-60NUP-KK0 proximity sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
