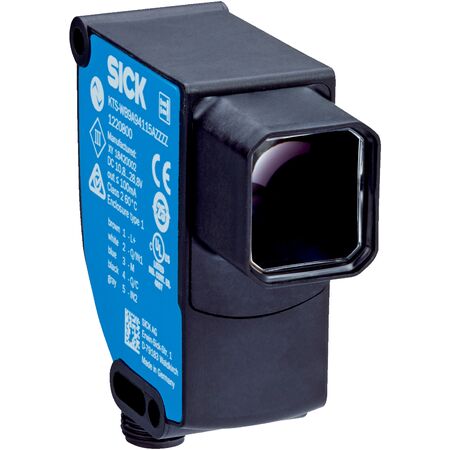

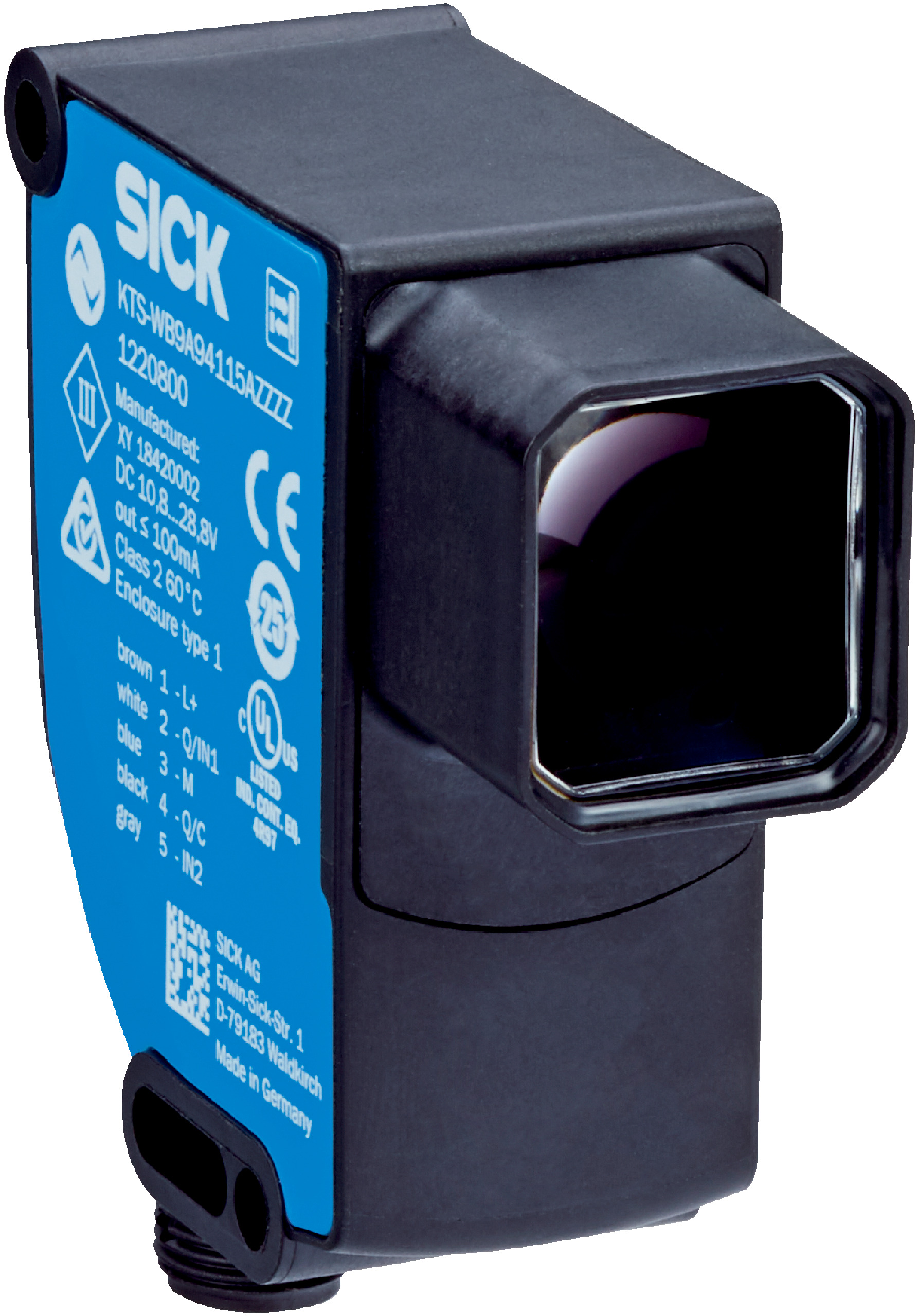

Industrial Proximity Sensor KTS-WB9A94115AZZZZ | Long Sensing Distance | IP67 Rated | RGB LED Light Source | by SICK
The KTS-WB9A94115AZZZZ industrial proximity sensor offers a long sensing distance of up to 150 mm with ±8 mm tolerance, making it ideal for various automation applications. With an IP67 rating for dust and water protection, this sensor is built to withstand harsh environments while providing reliable performance. Its RGB LED light source enhances visibility, ensuring accurate object detection in industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 150 mm with ±8 mm tolerance
- Light source: LED RGB (470 nm, 525 nm, 625 nm)
- Light spot size: Ø 12 mm, round and large
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 25 kHz
- Response time: 20 µs
- Jitter: 10 µs
- Switching output: Push-pull PNP/NPN, max 100 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection type: M12 5-pin plug
- Housing material: VISTAL®
- Optics material: Glass
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Long sensing distance up to 150 mm with ±8 mm tolerance
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Light/dark switching output function with adjustable delay time
- Push-pull PNP/NPN switching output with max 100 mA output current
- IP67 rated housing for protection against dust and water
- Shock resistant according to IEC 60068-2-27 (30 g/11 ms)
- Teach-in modes including 1-point, 2-point, dynamic, and auto mode
- Non-volatile memory with 25 ms retention time
- Connection via M12 5-pin plug
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Standard sensing applications requiring long sensing distance
- Environments needing robust IP67 rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Non-volatile memory reduces electronic waste by preserving settings
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTS-WB9A94115AZZZZ sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable long-distance detection.
