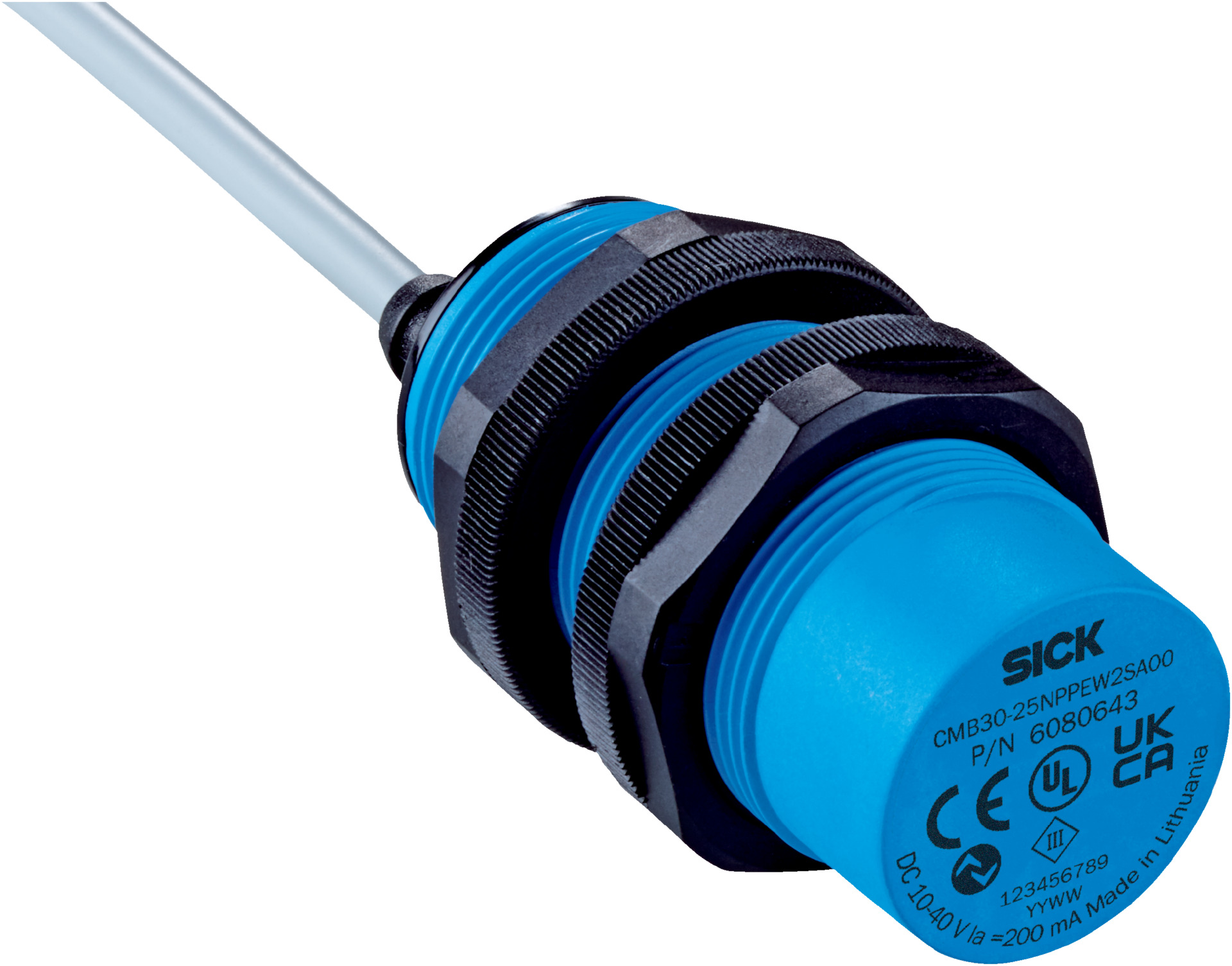

Industrial Proximity Sensor M30 PNP | 25mm Sensing Range | IP67/IP68/IP69K Rated | by SICK
The Industrial Proximity Sensor M30 PNP is designed for reliable object detection in industrial automation, featuring a sensing range of up to 25mm and robust IP67/IP68/IP69K protection ratings. Ideal for manufacturing process control and safety monitoring, this sensor operates in extreme temperatures from -30°C to +85°C, ensuring durability and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: ≤ 20 mA
- Switching frequency: 50 Hz
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ±10%
- Cable diameter: Ø 5.2 mm, PVC material
- Protection rating: IP67, IP68, IP69K
- Operating temperature: -30°C to +85°C
- Communication: IO-Link V1.1, COM2 (38.4 kBaud)
- Switching output: PNP complementary, wire configurable
- Thread size: M30 x 1.5
- Housing material: Plastic, PBT
- Shock resistance: 30 g, 11 ms, 3 shocks per axis
- Vibration resistance: 10 Hz to 150 Hz, 1 mm / 15 g
- Dimensions (H x L x W): 81mm x 81mm x 30mm
- Weight: 0.1 kg
Key Features
- Non-flush installation with metric M30 x 1.5 thread
- Sensing range up to 25 mm with safe sensing range of 19.13 mm
- PNP complementary switching output with wire configurable output characteristic
- Robust plastic PBT housing with IP67, IP68, and IP69K protection ratings
- Visual adjustment indicator and potentiometer sensitivity adjustment (11 turns)
- Cable connection type: 4-wire, 2 m PVC cable
- High shock and vibration resistance compliant with EN 60068 standards
- Wide ambient operating temperature range from -30°C to +85°C
- IO-Link V1.1 communication interface for sensor parameters and Smart Task functions
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, ensuring correct mounting torque and environmental protection.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 61000 series for electromagnetic compatibility (EMC) standards
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption in industrial settings
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now

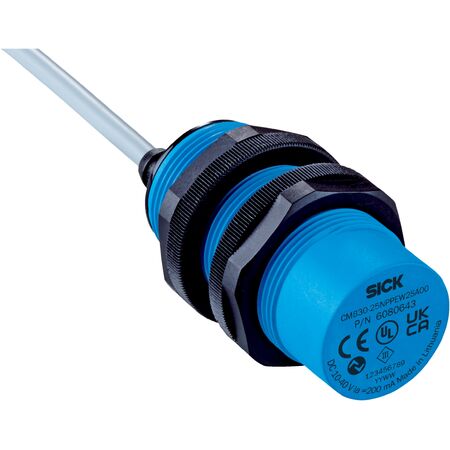

The SICK CMB30-25NPPEW2SA00 sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
