Trade Discount 20%

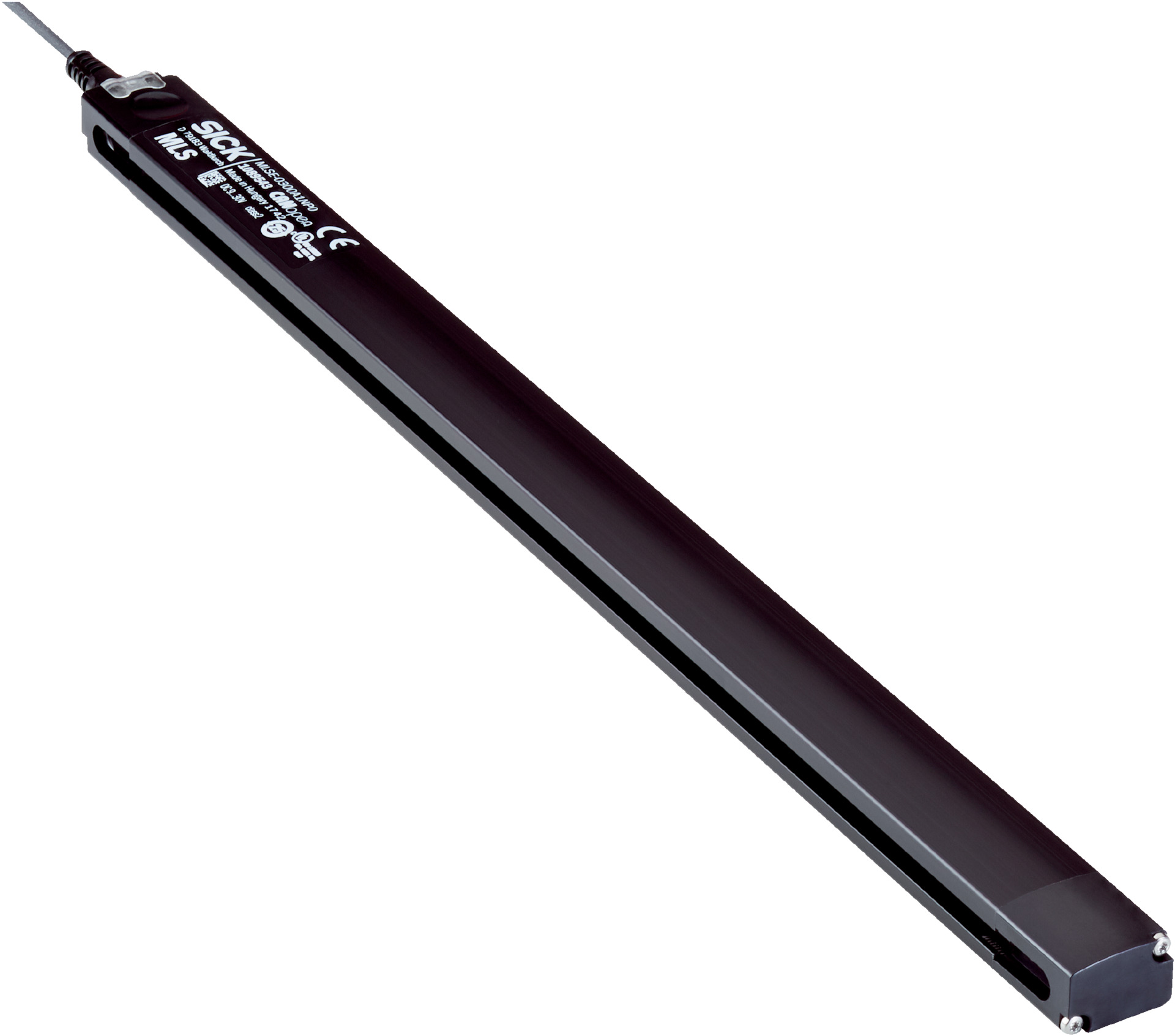

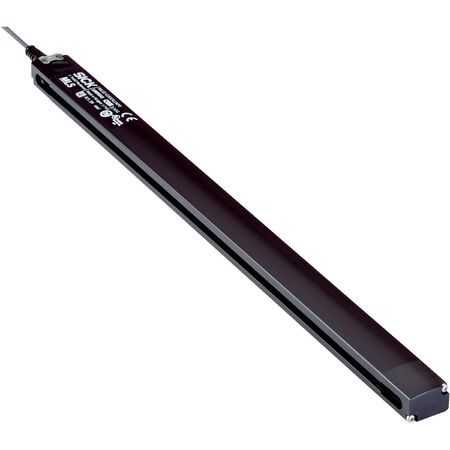

Industrial Proximity Sensor MLSE-0600C2NP0 | 600 mm Detection Range | IP65/IP67/IP68 Rated | Modbus RTU Communication | by SICK
The Industrial Proximity Sensor MLSE-0600C2NP0 offers a 600 mm detection range and operates effectively at heights from 10 mm to 70 mm. Designed for industrial automation and robotics, it features robust IP65/IP67/IP68 enclosure ratings, ensuring durability in harsh environments. With a Modbus RTU communication interface and low power consumption of 600 mW, this sensor is perfect for precise position detection and reliable monitoring systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection range typical: 600 mm
- Operating height: 10 mm to 70 mm
- Electrical wiring: DC 4-wire
- Enclosure rating: IP65, IP67, IP68
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: 600 mW
- Resolution typical: 1 mm
- Repeat accuracy typical: 1 mm
- Update rate: 100 Hz
- Teach-in function available
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Ambient operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Communication interface: Modbus RTU RS-485
- Connection type: Cable with M8 male connector, 4-pin, 0.3 m
- Material: Housing metal (aluminum, plastic), cable PUR
- Dimensions (H x L x W): 30mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- Detection range typical: 600 mm
- Operating height from 10 mm to 70 mm
- DC 4-wire electrical wiring
- Enclosure rating IP65, IP67, IP68 for robust protection
- Supply voltage range 9 V DC to 30 V DC
- Power consumption 600 mW
- Resolution and repeat accuracy typical 1 mm
- Update rate 100 Hz with teach-in function
- Reverse polarity and short-circuit protection
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Communication interface: Modbus RTU RS-485
- Ambient operating temperature from -20 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for precise position and orientation detection
- Robotics for motion and angle measurement
- Safety and monitoring systems requiring reliable sensor data
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of 600 mW reduces energy usage
- Durable IP65-IP68 rated housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MLSE-0600C2NP0 sensor is available for immediate purchase, ideal for industrial automation and robotics applications requiring precise and reliable sensing.
