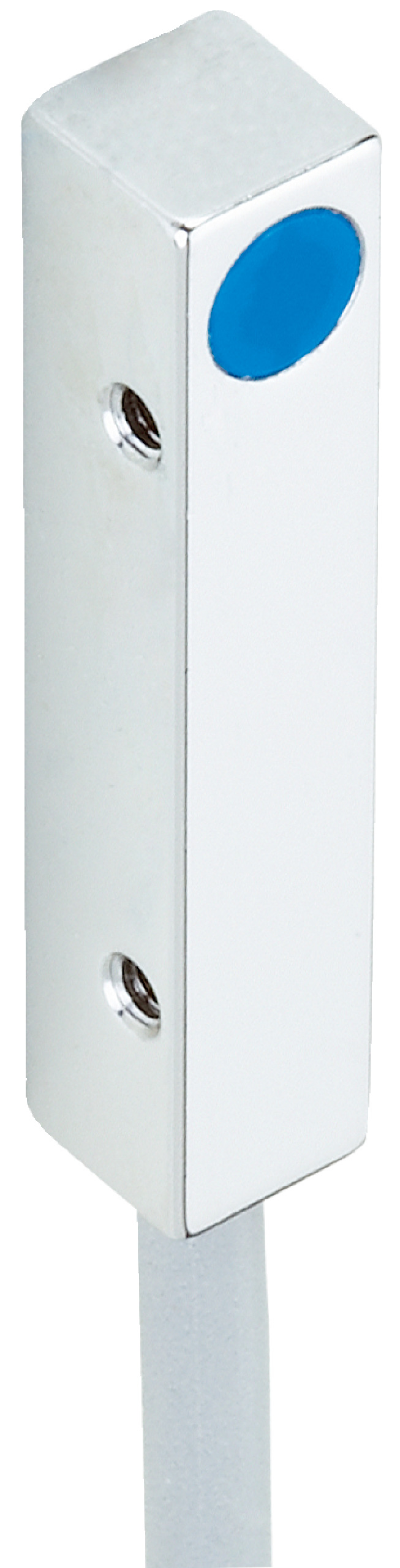

Industrial Proximity Sensor | PNP Switching Output | IP67 Rated | High Switching Frequency | by SICK
The Industrial Proximity Sensor is designed for precise object detection in automation applications, featuring a PNP switching output and an IP67 rated enclosure for dust and water protection. With a high switching frequency of 5,000 Hz and a durable brass housing, this sensor is perfect for machine safety and control systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1.5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- Cable: PUR, 3-wire, 2 m length
- Connection type: Cable, 3-wire
- Output function: Normally closed (NC)
- Switching output: PNP
- EMC: According to EN 60947-5-2
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic, POM
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Dimensions (H x L x W): 25mm x 5mm x 5mm
- Weight: 0.1 kg
Key Features
- Rectangular brass housing with chromium plating
- Flush installation type
- Sensing range of 0.8 mm with safe sensing range of 0.648 mm
- High switching frequency of 5,000 Hz
- PNP switching output with NC function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor placement for optimal performance and safety.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Precision sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

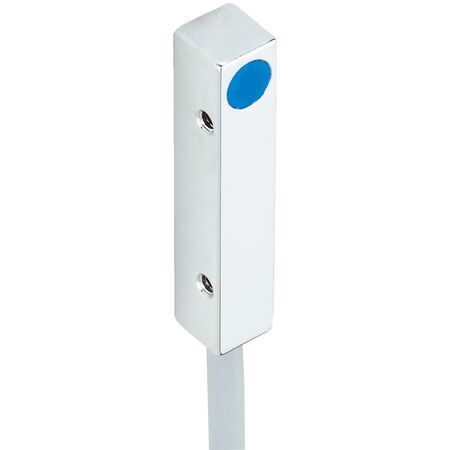

The SICK IQ05-0B8PO-ZU1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise object detection.
