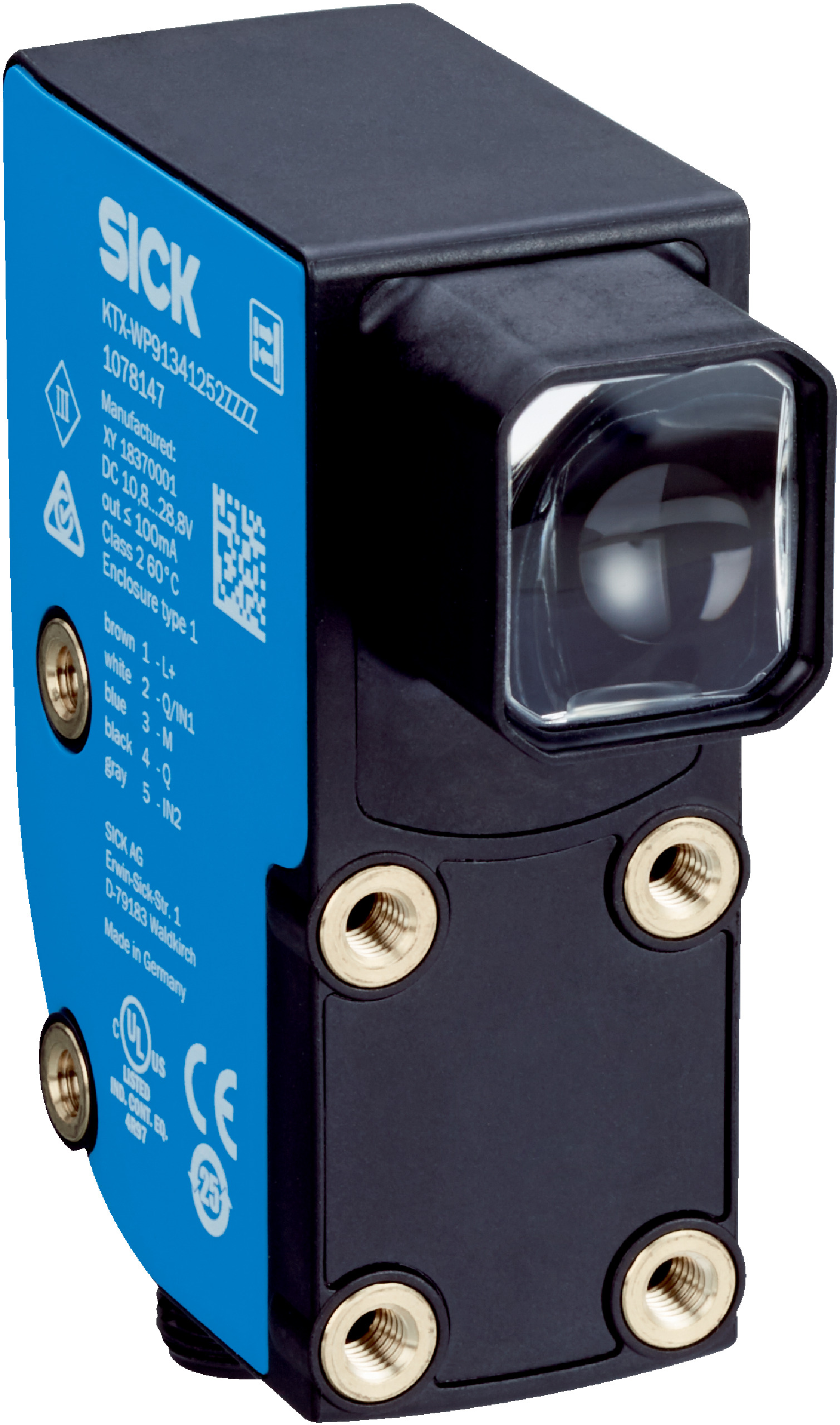

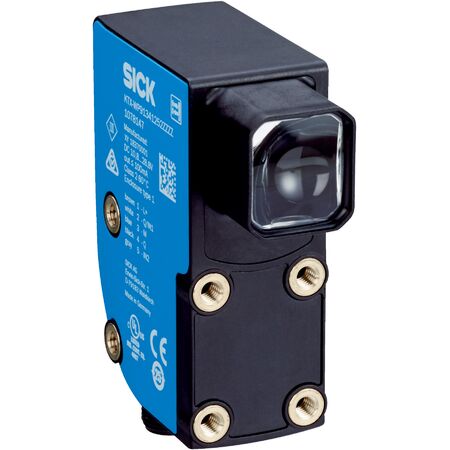

Industrial Proximity Sensor SICK KTX-WB9A64125UZZZZ | Long Sensing Distance | RGB LED Light Source | IP67 Rated | by SICK
The SICK KTX-WB9A64125UZZZZ industrial proximity sensor features a long sensing distance of up to 70 mm and an RGB LED light source for versatile applications. With an IP67 rating, it’s perfect for industrial automation, object detection, and safety monitoring in manufacturing processes. Built to withstand harsh environments, this sensor ensures reliable performance with low power consumption and robust housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 70 mm with ±6 mm tolerance
- Light source: LED RGB (470 nm, 525 nm, 625 nm)
- Light emission: Long side of housing, round large light spot Ø 10 mm
- Output function: Light/dark switching
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Switching output: Push-pull PNP/NPN, max 100 mA
- Protection class: III
- Housing material: VISTAL®
- Optics material: Glass
- Connection type: Plug, M12, 5-pin
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Long sensing distance up to 70 mm with ±6 mm tolerance
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Light/dark switching output function
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Push-pull PNP/NPN switching output with max 100 mA current
- Robust housing made of VISTAL® with glass optics
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -20 °C to +60 °C
- Short-circuit and reverse polarity protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation and control
- Object detection and positioning
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTX-WB9A64125UZZZZ sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
