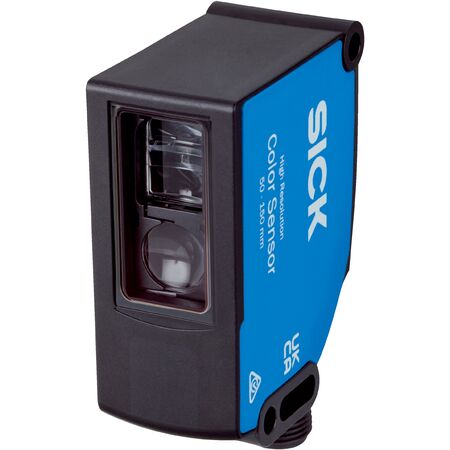

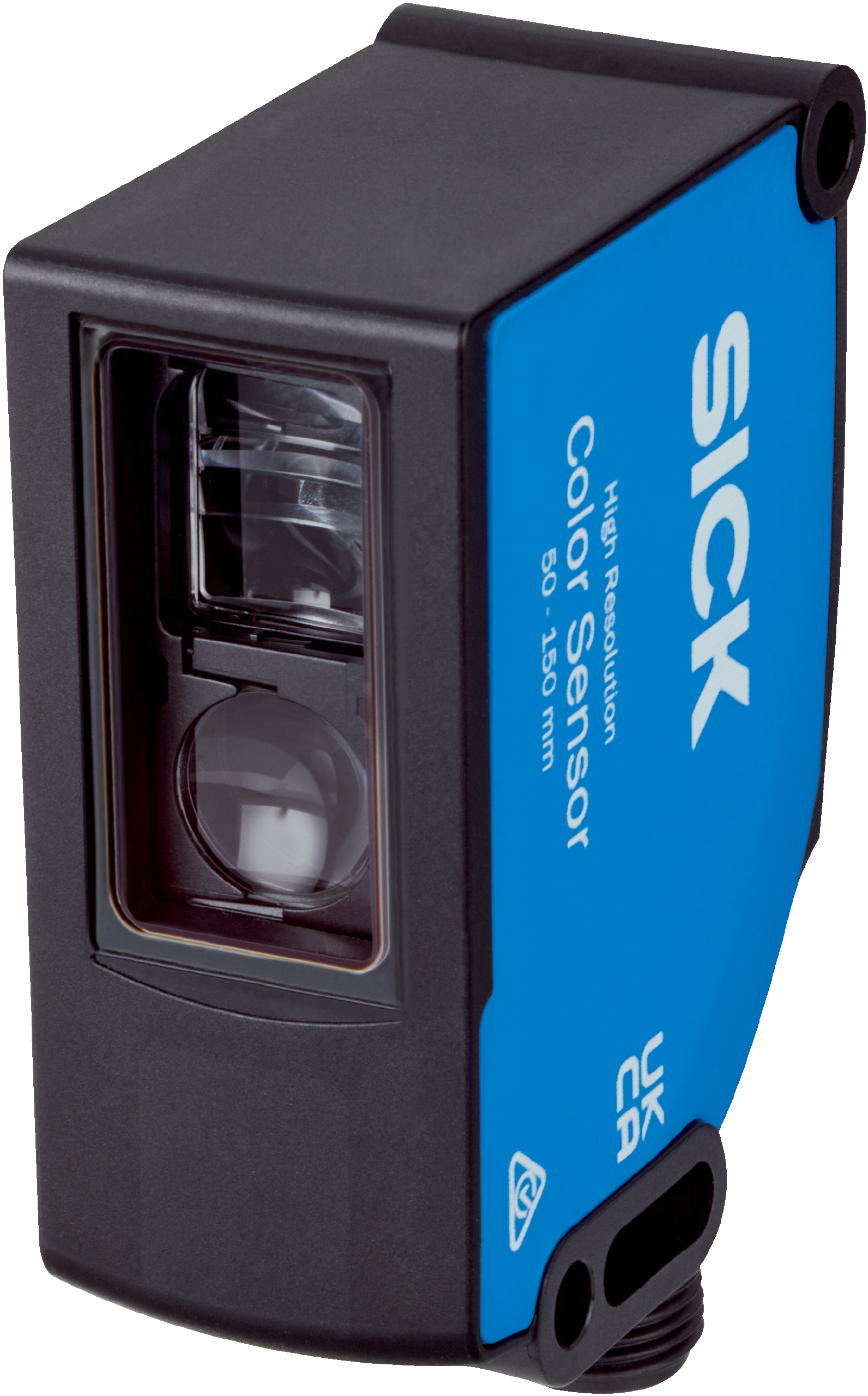

Industrial RGB Color Sensor with IO-Link | IP67 Rated | 4 kHz Switching Frequency | S-Housing Design | by SICK
The Industrial RGB Color Sensor with IO-Link is designed for precise color detection and sorting in industrial automation. With a sensing distance of 50 mm to 150 mm and an IP67 rating for dust and water resistance, this sensor is perfect for quality control and material verification. Its energy-efficient LED light source and robust design ensure reliable performance in various manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 150 mA
- Switching frequency: 4 kHz
- Response time: 120 µs
- Jitter: 60 µs
- Output current max: 100 mA
- Light spot size: diameter 3.5 mm to 6.5 mm
- Light emission from long side of housing
- Safety-related parameters MTTFD: 179.9 years
- Connection type: M12, 5-pin plug
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Sensing distance from 50 mm to 150 mm
- LED RGB light source with wavelengths 450 nm, 550 nm, 610 nm
- S-housing design with glass optics
- Two hardware switching outputs and 24 virtual switching outputs via IO-Link
- Continuous sensitivity adjustment from 0 to 999
- Teach-in modes: single value and multi value
- Output modes: 2 colors in standard/best fit mode, 3 colors in coded mode
- Protection class III with reverse polarity and short-circuit protection
- Enclosure rating IP67 for dust and water resistance
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for color detection and sorting
- Quality control in manufacturing processes
- Material identification and verification
- Packaging and labeling inspection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CSS-WBG4C4115AA10Z Color Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
