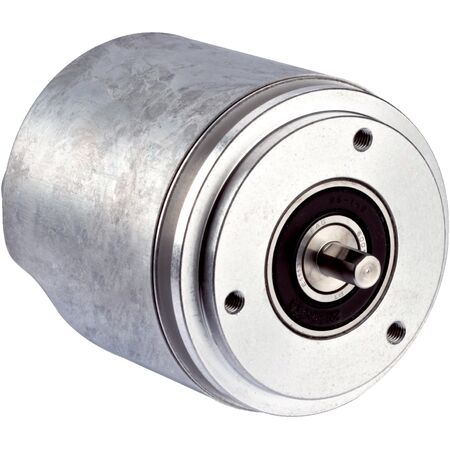

Industrial Rotary Encoder AFM60A-S1IB018x12 | 18 Bit Resolution | EtherNet/IP Communication | IP65/IP67 Rated | by SICK
The Industrial Rotary Encoder AFM60A-S1IB018x12 offers high-resolution performance with 262,144 steps per revolution and EtherNet/IP communication for seamless integration. Designed for industrial automation and precision motion control, it features a robust mechanical design and an IP65/IP67 rated enclosure, making it ideal for harsh environments. With a wide operating temperature range from -40 °C to +85 °C, this encoder ensures reliable operation in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Industrial Rotary Encoder AFM60A-S1IB018x12 | 18 Bit Resolution | EtherNet/IP Communication | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1055331
Alternatively Known As: Industrial rotary encoder, EtherNet/IP encoder, high-resolution encoder, servo encoder
Technical Specifications
- MTTFD: 80 years (EN ISO 13849-1)
- Max resolution: 18 bit x 12 bit (262,144 x 4,096 steps)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: EtherNet/IP™ with V4.1 class3 encoder profile
- Data transmission rate: 10 Mbit/s, 100 Mbit/s
- Transmission medium: CAT-5e cable
- Initialization time: Approx. 10 s
- RPI: 5 ms ... 750 ms
- Connection type: Male and female M12, 4-pin axial connectors
- Supply voltage: 10 ... 30 V
- Power consumption: ≤ 3 W (without load)
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3 x 10^9 revolutions
- Operating temperature range: –40 °C ... +85 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- EMC: EN 61000-6-2 and EN 61000-6-3 compliant
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- EtherNet/IP communication interface with 10/100 Mbit/s data transmission
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- IP65/IP67 rated enclosure for harsh environments
- Reverse polarity protection and low power consumption (≤ 3 W)
- Extensive diagnostics data and device level ring (DLR) support
- Long bearing lifetime of 3 billion revolutions
- Wide operating temperature range from -40 °C to +85 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with EtherNet/IP devices and industrial encoder mounting to ensure proper alignment and electrical connections.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision motion control
- Factory and process automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60A-S1IB018x12 encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
