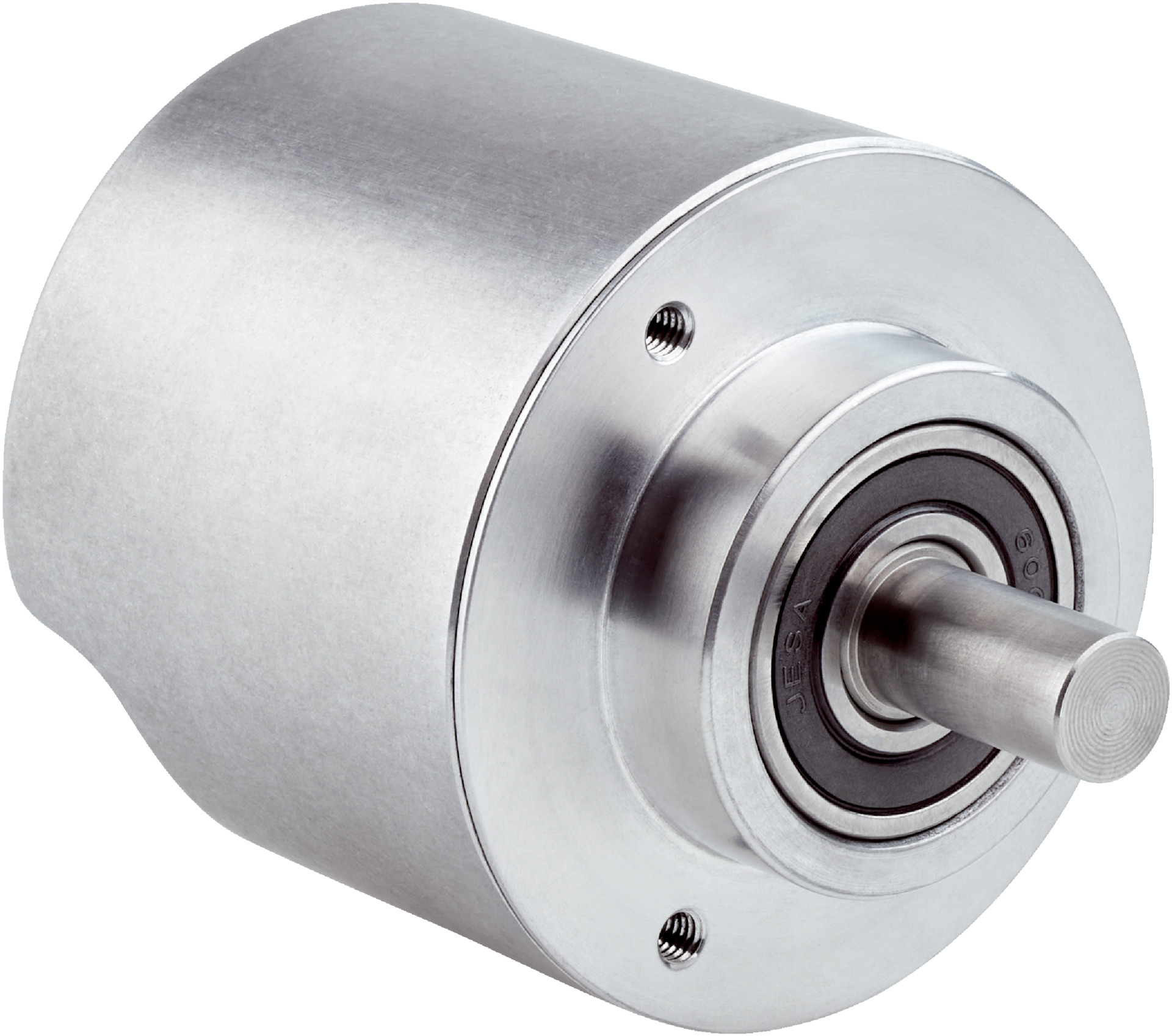

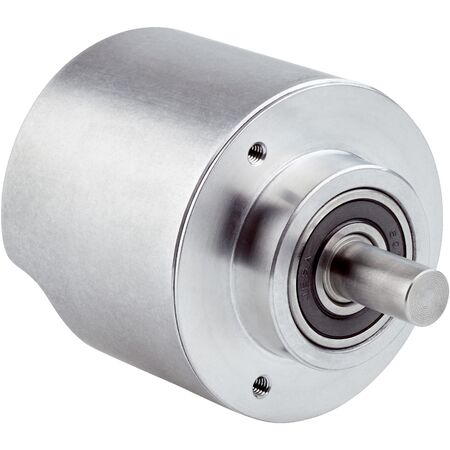

Industrial Rotary Encoder AFM60A-S6IB018x12 | 262,144 Steps/Rev | EtherNet/IP Communication | IP65/IP67 Rated | by SICK
The Industrial Rotary Encoder AFM60A-S6IB018x12 offers high precision with 262,144 steps per revolution and EtherNet/IP communication for seamless integration. Designed for industrial automation and control systems, it features a robust mechanical design and an IP65/IP67 rated enclosure, making it ideal for harsh environments. With a mean time to failure of 80 years, this encoder ensures reliability and longevity in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 80 years (EN ISO 13849-1)
- Resolution: 262,144 steps per revolution (18 bit), 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: EtherNet/IP™ with V4.1 class3 encoder profile
- Data transmission rate: 10 Mbit/s, 100 Mbit/s
- Transmission medium: CAT-5e cable
- Initialization time: Approx. 10 s
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 3 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 3/8 inch
- Shaft length: 19 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Operating temperature range: –40 °C to +85 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 60mm x 50mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- EtherNet/IP communication interface with 10 Mbit/s and 100 Mbit/s data rates
- Robust mechanical design with solid shaft and face mount flange
- IP65/IP67 rated enclosure for harsh environments
- Reverse polarity protection and low power consumption (≤ 3 W)
- Comprehensive diagnostics and parameterizing data available
- High reliability with MTTFD of 80 years and bearing lifetime of 3 billion revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication systems to ensure proper setup and safety compliance.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Position and speed measurement in manufacturing
- Machine tool feedback systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFM60A-S6IB018x12 industrial encoder is available for immediate purchase, ideal for high-precision industrial automation and control applications.
