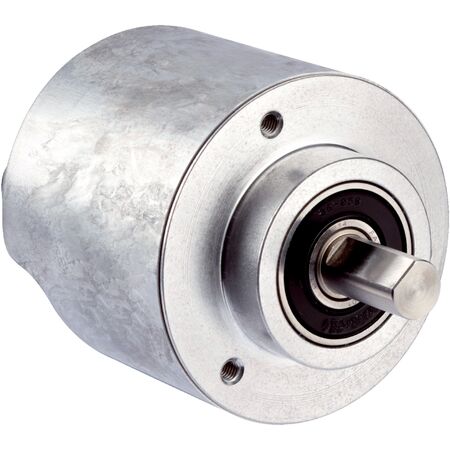

Industrial Rotary Encoder AFS60I-S4EB000S49 | High Resolution 262,144 Steps | IP67 Stainless Steel | by SICK
The Industrial Rotary Encoder AFS60I-S4EB000S49 offers high resolution with 262,144 steps per revolution, making it ideal for precision measurement and positioning in industrial automation. With a robust stainless steel housing and IP67 protection, it withstands harsh environments while ensuring reliable performance. Perfect for robotics and motion control applications, this encoder features EtherCAT communication for seamless integration into your systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Resolution: 262,144 steps per revolution (18 bit)
- Error limits: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: EtherCAT with CoE (CAN over EtherCAT®)
- Data transmission rate: 10 Mbit/s, 100 Mbit/s
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 3 W (without load)
- Connection type: Male and female M12, 4-pin axial connectors
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Operating speed: up to 9,000 min⁻¹
- Operating temperature range: -40°C to +85°C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.2 kg
Key Features
- Stainless-steel housing with IP67 protection for harsh environments
- High resolution with 262,144 steps per revolution (18 bit)
- EtherCAT communication interface with CoE (CAN over EtherCAT®)
- Robust mechanical design with solid shaft and face mount flange
- Wide operating temperature range from -40°C to +85°C
- Reverse polarity protection and low power consumption (≤ 3 W)
- High reliability with MTTFD of 80 years and bearing lifetime of 3 billion revolutions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration of EtherCAT communication and mechanical mounting.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Factory automation requiring high-resolution rotary encoders
Standards & Compliance
- Complies with AS/NZS 61000 series for EMC standards
Environmental Benefits
- Durable stainless steel housing reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60I-S4EB000S49 encoder is available for immediate purchase, ideal for industrial automation and precision control applications.
