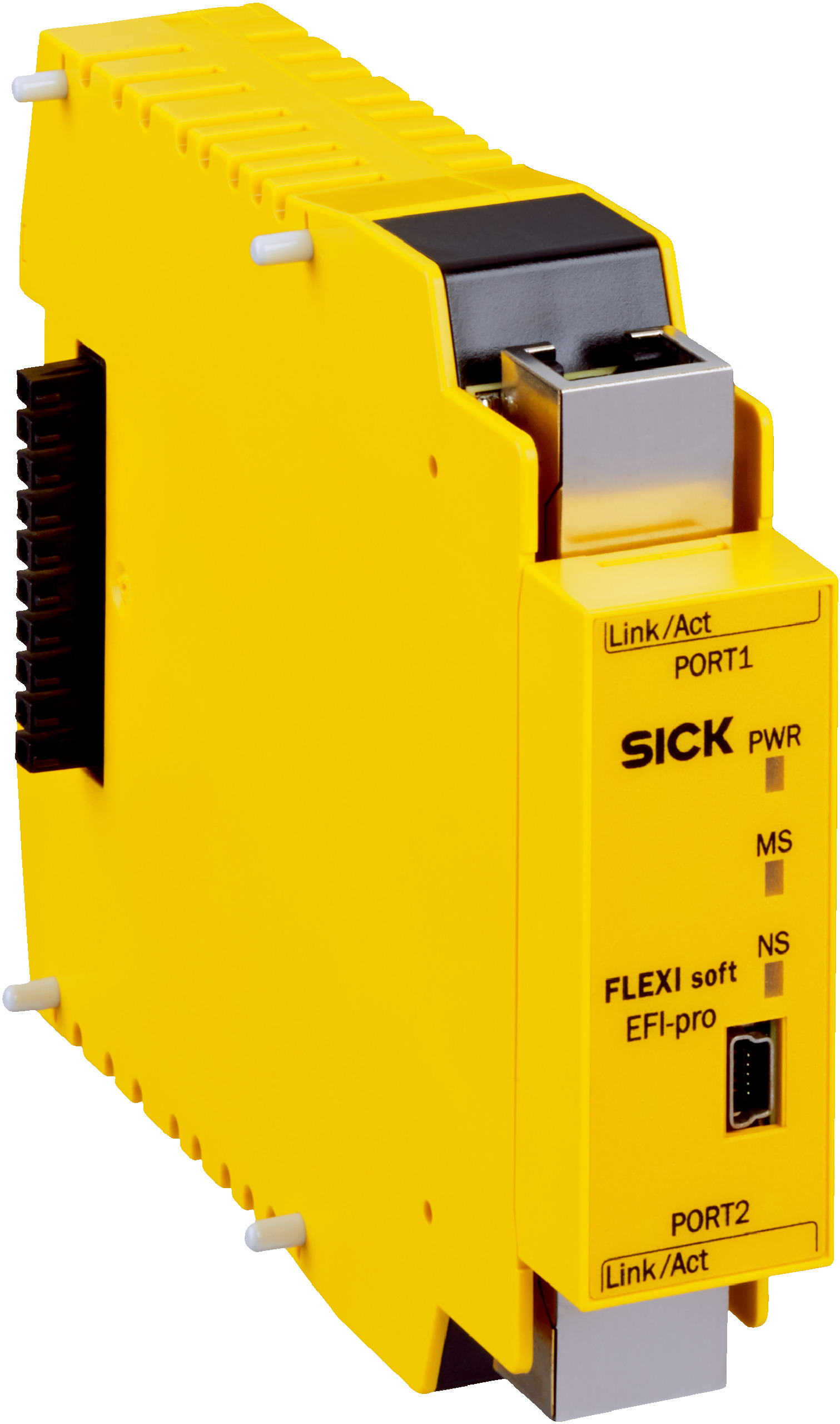

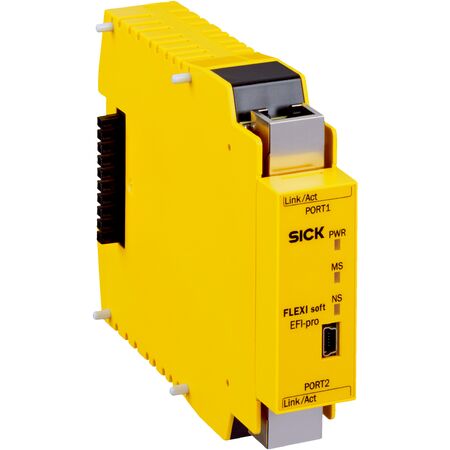

Industrial Safety Gateway Module FX3-GEPR00010 | SIL 3 & Category 4 | Integrated Ethernet Switch | by SICK
The Industrial Safety Gateway Module FX3-GEPR00010 is designed for seamless integration into EFI-pro and EtherNet/IP™ CIP Safety networks. With a high safety integrity level of SIL 3 and Category 4 compliance, it ensures reliable communication in industrial automation. Featuring an integrated 3-port Ethernet switch and a protective coating for harsh environments, this module is perfect for safety-critical applications in factories and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Module Type: Gateway
- Fieldbus/Industrial Network: EFI-pro, EtherNet/IP™ CIP Safety™
- Configuration Method: Via Safety Designer software
- Safety Integrity Level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance Level: PL e (EN ISO 13849)
- PFHD: 0.3 x 10^-9 (EN ISO 13849)
- Mission Time: 20 years (EN ISO 13849)
- Integrated Ethernet Switch: 3-port layer-2 managed with Auto-MDI-X
- Data Transmission Rate: 10 Mbit/s (10Base-T), 100 Mbit/s (100Base-TX) autosensing
- RPI Producing: 4 ms to 500 ms, multiple of 4 ms
- RPI Consuming: 4 ms to 500 ms, multiple of 1 ms
- Number of Data Bytes RX: ≤ 48 Byte
- Number of Data Bytes TX: ≤ 50 Byte
- Number of Safe Connections Consuming: ≤ 10
- Number of Safe Connections Producing: ≤ 10
- Connection Type: 2 x female RJ-45 connectors
- Configuration and Diagnostics Interface: Mini-USB
- Protection Class: III (EN 61140)
- Voltage Supply: Via FLEXBUS+
- Internal Power Consumption: ≤ 3.5 W
- Enclosure Rating: IP20 (EN 60529)
- Operating Temperature: -25 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Air Humidity: ≤ 95%, Non-condensing
- Single Gas Resistance: 25 ppm sulfur dioxide for 21 days at 25 °C
- Mixed Gas Resistance: 100 ppb H2S, 2000 ppb NO2, 100 ppb Cl2, 2000 ppb SO2 for 21 days at 30 °C
- Dimensions (H x L x W): 96.5mm x 120.6mm x 22.5mm
- Weight: 0.135 kg
Key Features
- Gateway module supporting EFI-pro and EtherNet/IP™ CIP Safety industrial networks
- Configuration via Safety Designer software
- Protective coating for resistance to sulfur and challenging ambient conditions
- Integrated 3-port layer-2 managed Ethernet switch with Auto-MDI-X
- Supports data transmission rates of 10 Mbit/s and 100 Mbit/s autosensing
- High safety integrity level SIL 3 (IEC 61508), Category 4 (EN ISO 13849), Performance Level PL e
- Low probability of dangerous failure (PFHD 0.3 x 10^-9) with 20 years mission time
- Mini-USB interface for configuration and diagnostics
- Voltage supply via FLEXBUS+ with internal power consumption ≤ 3.5 W
- Enclosure rated IP20 suitable for industrial environments
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified industrial automation professionals familiar with safety network protocols and standards.
Applications
- Industrial automation safety communication
- Factory network safety integration
- Protective coating environments with sulfur resistance
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Protective coating extends product lifespan in harsh environments, reducing waste
- Low power consumption of ≤ 3.5 W supports energy-efficient industrial operations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK FX3-GEPR00010 Gateway Module is available for immediate purchase, ideal for industrial safety network integration and harsh environment applications.
