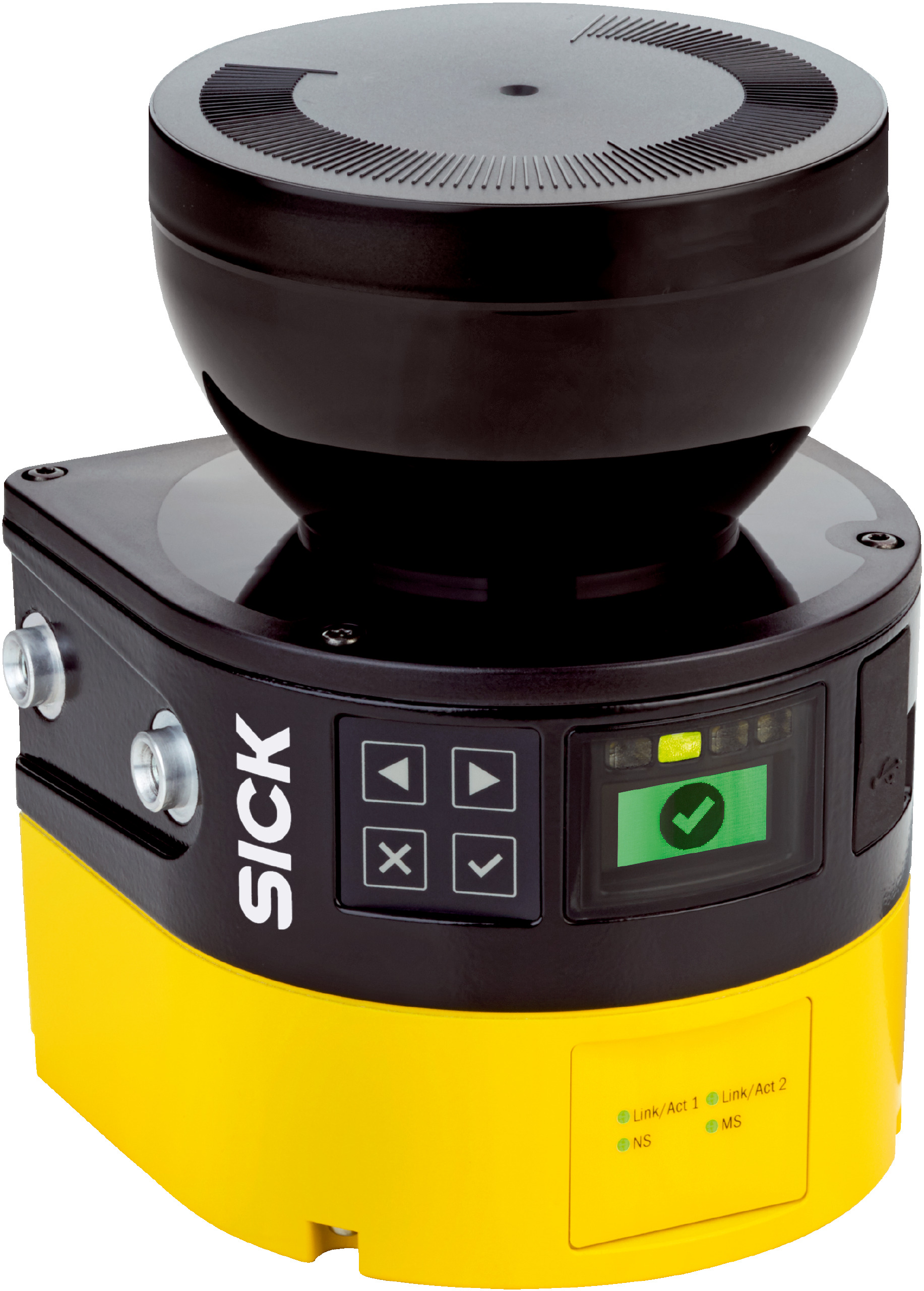

Industrial Safety Laser Scanner | 9m Protective Range | 275° Scanning Angle | SIL 2 Compliant | by SICK
The Industrial Safety Laser Scanner is designed for reliable safety monitoring in industrial automation, featuring a protective field range of 9 m and a 275° scanning angle. Ideal for machine safeguarding and perimeter protection, this Type 3 safety sensor ensures compliance with IEC 61496 and offers EtherNet/IP connectivity for seamless integration into your safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 150.7mm x 111.1mm x 112mm
- Weight: 1.45 kg
Key Features
- Protective field range of 9 m and warning field range of 64 m
- Simultaneous monitoring of up to 4 fields with 8 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Type 3 safety sensor compliant with IEC 61496
- Safety integrity level SIL 2 and Performance level PL d
- EtherNet/IP™ industrial network connectivity with 4 safety outputs via network
- Graphic color display and LEDs for status indication
- Robust aluminum housing with IP65 rating and scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
- Pulsed laser diode light source with laser class 1 safety
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial safety systems and EtherNet/IP networks.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Factory automation requiring reliable safety sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient 24 V DC operation with low power consumption (7.2 W)
- IP65 protection ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

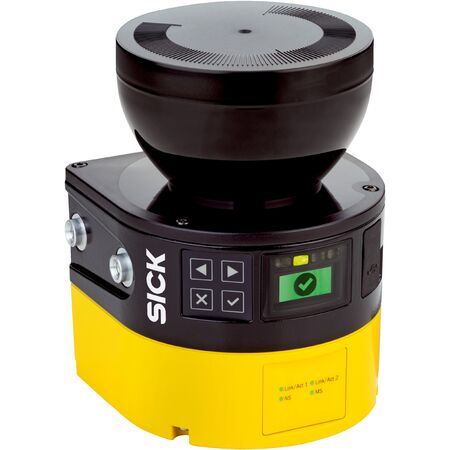

The SICK MICS3-ABAZ90IZ1P01 microScan3 Core EtherNet/IP safety sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
