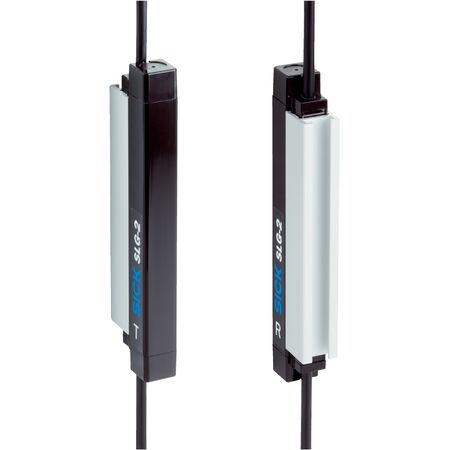

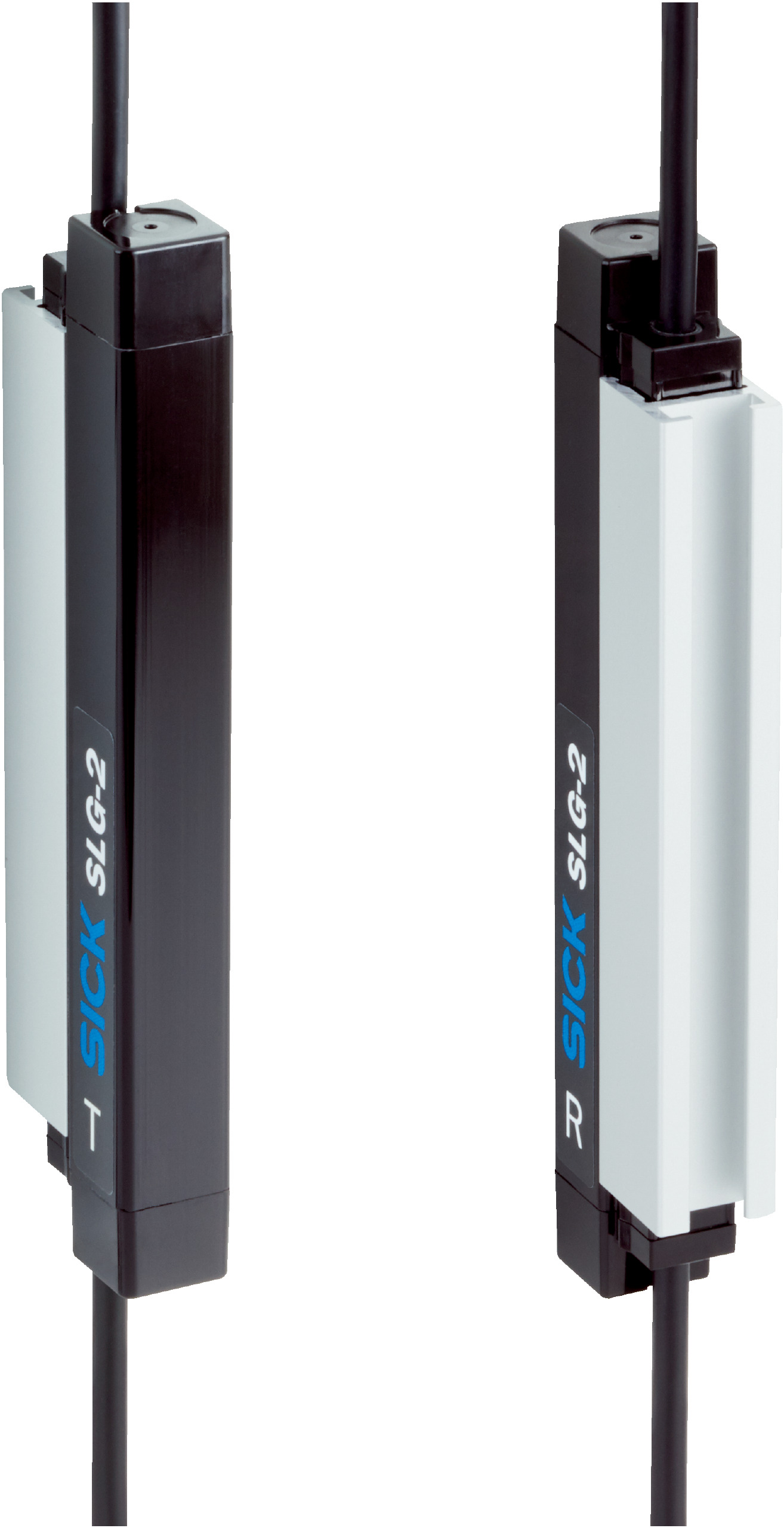

Industrial Safety Light Grid | 120 Beams | IP65/IP67 Rated | Infrared Light Source | by SICK
The Industrial Safety Light Grid features a sender/receiver system with 120 beams and a minimum detectable object size of 15 mm, making it ideal for industrial automation safety monitoring. With a detection height of 1,200 mm and an infrared light source at 850 nm, this robust system ensures reliable object detection and presence sensing, perfect for machine guarding and perimeter protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: FlexChain Guest
- Sensor principle: Sender/receiver light grid system
- Minimum detectable object: 15 mm
- Beam separation: 10 mm
- Number of beams: 120
- Detection height: 1,200 mm
- Light source: Infrared light
- Wavelength: 850 nm
- Supply voltage: Via FlexChain (host)
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Connection type: Cable with M8 male connector, 4-pin; Cable with female connector, M8, 4-pin, 1.5 m
- Indication: LED
- Synchronization: Via FlexChain (host)
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, interference pulse suppression, overcurrent and short-circuit protected outputs
- Protection class: III
- Front screen material: PMMA
- Maximum range: 6 m
- Minimum range: ≥ 0 m
- Operating range: 4 m
- Scanning time: 5.7 ms
- Shock resistance: 10 g, 16 ms
- Vibration resistance: 10-150 Hz, 0.5 mm
- EMC: EN 61000-6-2, EN 61000-6-4
- Ambient light immunity: Indirect 50,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Dimensions (H x L x W): 1200mm x 24mm x 12mm
- Weight: 0.736 kg
Key Features
- Sender/receiver light grid system with 120 beams
- Minimum detectable object size of 15 mm
- Detection height of 1,200 mm
- Infrared light source with 850 nm wavelength
- Flat optical light exit
- IP65 and IP67 rated enclosure for dust and water protection
- LED indication for status
- Short initialization time of 1 second
- Robust against shock and vibration
- Reverse polarity and overcurrent protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration with FlexChain host systems and compliance with safety standards.
Applications
- Industrial automation safety monitoring
- Object detection and presence sensing
- Machine guarding and perimeter protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient infrared light source reduces power consumption
- Durable IP65/IP67 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SLG10S-120FAKB1K01 FlexChain Guest Light Grid System is available for immediate purchase, ideal for industrial safety and automation applications.
