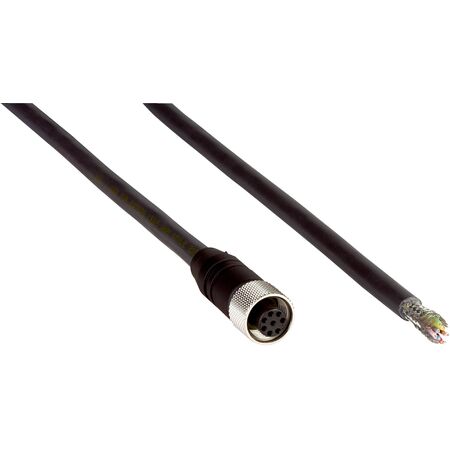

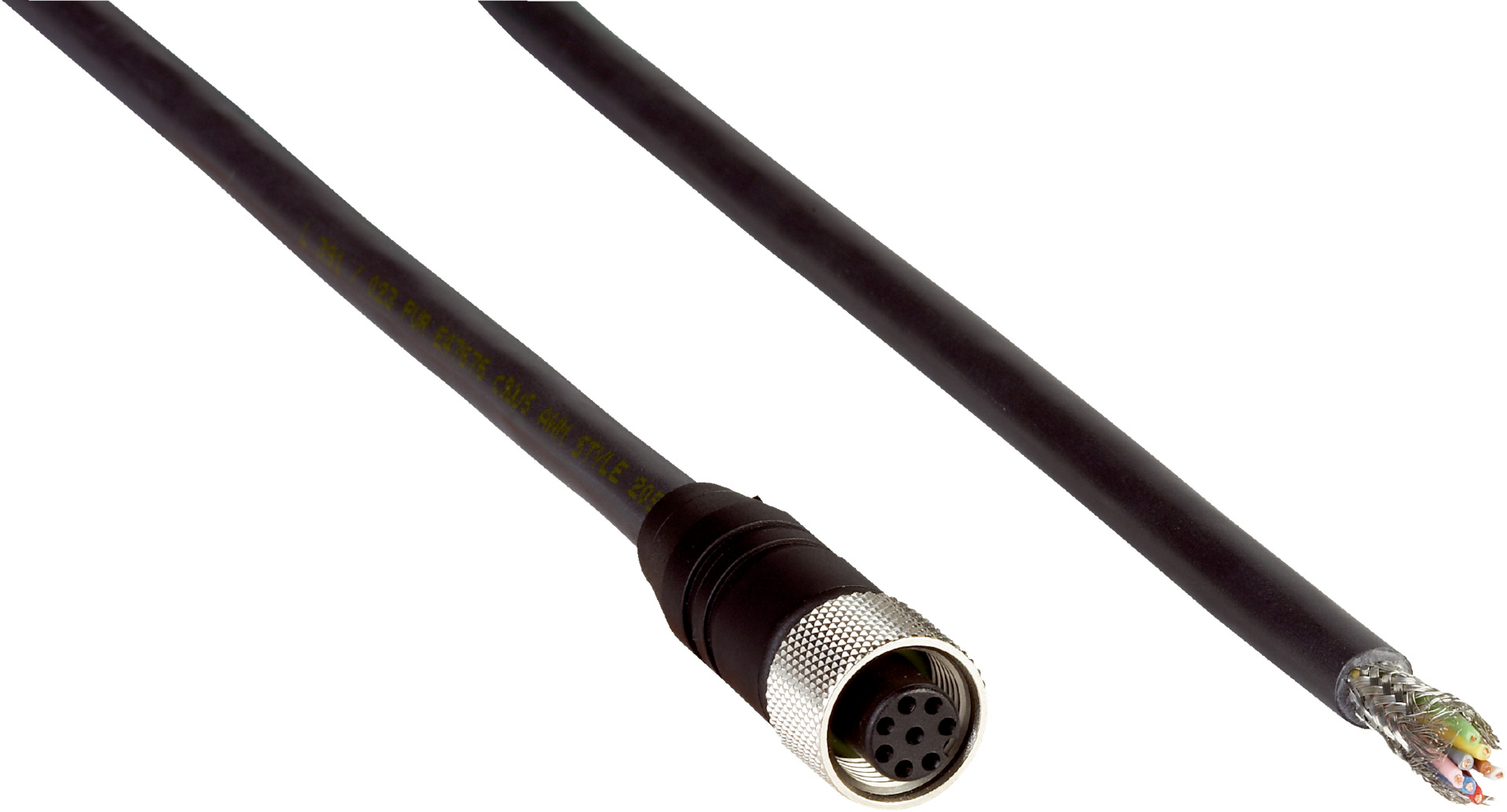

Industrial Sensor Cable Assembly | M12 Connector | IP67 Rated | 20m Length | by SICK
The Industrial Sensor Cable Assembly is designed for robust connectivity in industrial automation, featuring a female M12 connector and flying leads for flexible installation. With a 20m length and IP67 rating, this cable is perfect for harsh environments, ensuring reliable performance in temperature ranges from -50 °C to +80 °C. Ideal for machine connectivity and sensor integration, it supports high-speed operations with a current loading capacity of 4 A.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Flying leads
- Cable length: 20 m
- Cable type: 8-wire, PUR, halogen-free
- Jacket material: PUR, halogen-free
- Jacket color: Black
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature range: -50 °C to +80 °C
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Acceleration: ≤ 5 m/s²
- Enclosure rating: IP67
- Dimensions (H x L x W): 20mm x 20000mm x 20mm
- Weight: 0.2 kg
Key Features
- Female connector M12, 8-pin, straight on head A
- Flying leads on head B for flexible connection
- 20 m length, 8-wire PUR halogen-free cable
- Shielded cable with 0.25 mm² conductor cross section
- IP67 rated enclosure for dust and water protection
- Suitable for flexible use with bending radius > 10 x cable diameter
- Operating temperature range from -50 °C to +80 °C
- Current loading capacity of 4 A
- Supports traversing speed up to 3.3 m/s and acceleration ≤ 5 m/s²
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Machine connectivity and sensor integration
- Harsh environment electrical connections requiring IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A68-200XXXXLEAX cable assembly is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
