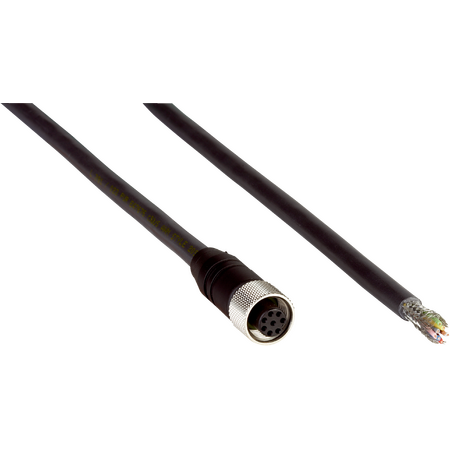

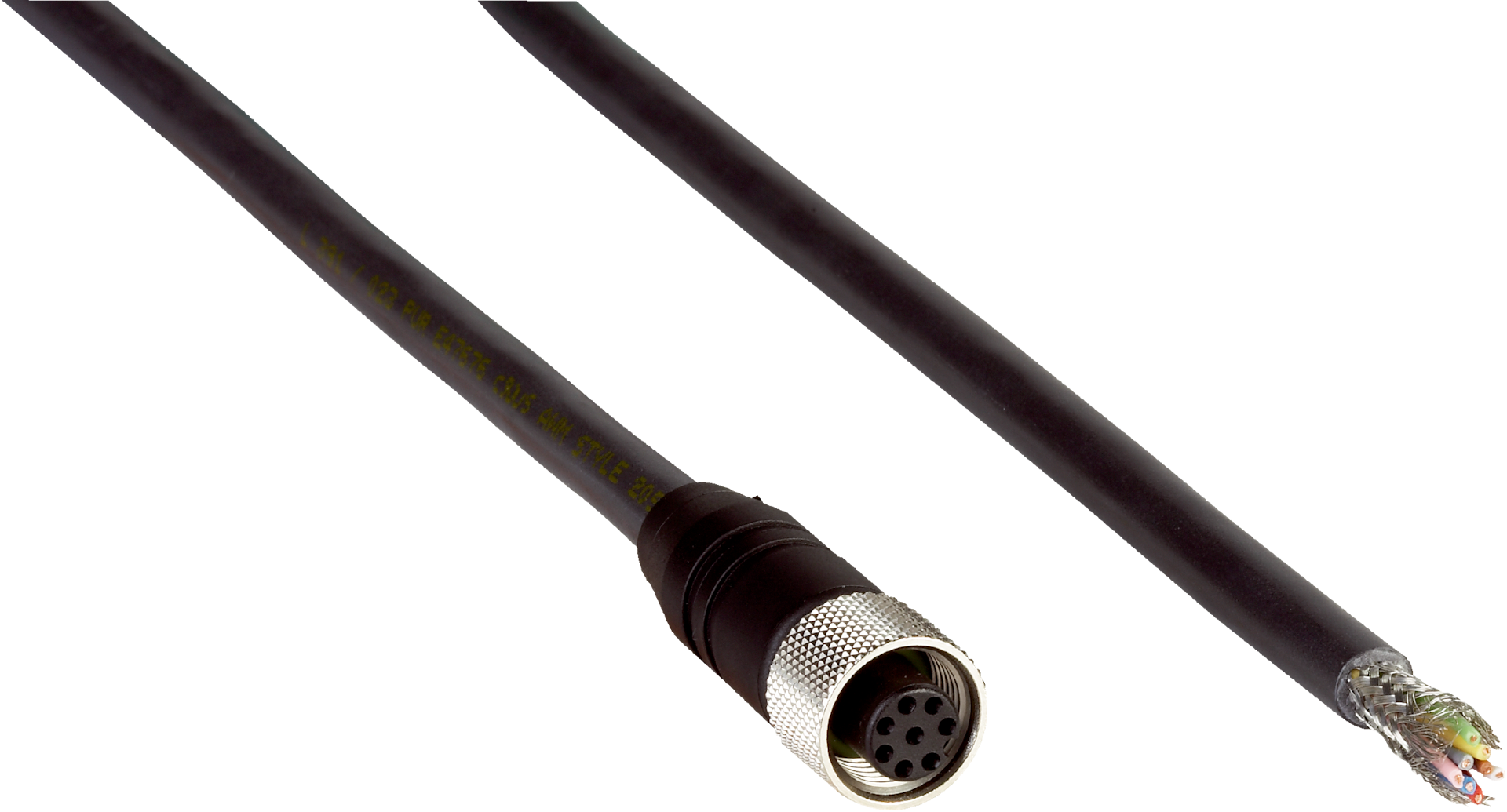

Industrial Sensor Cable M12 Connector | 10m Length | Shielded & Halogen-Free | IP67 Rated | by SICK
The Industrial Sensor Cable with M12 connector is designed for reliable sensor connectivity in harsh environments. Featuring a 10m length, 8-wire configuration, and a durable halogen-free PUR jacket, this cable is perfect for drag chain operations and industrial automation. With an IP67 rating for dust and water protection, it ensures optimal performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Industrial sensor cable, M12 connector cable, PUR shielded cable, drag chain cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Flying leads
- Cable length: 10 m
- Cable wires: 8-wire
- Jacket material: PUR, halogen-free
- Jacket color: Black
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: > 2,000,000
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Enclosure rating: IP67
- Dimensions (H x L x W): 7mm x 10000mm x 7mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 8-pin, straight on head A
- Flying leads on head B
- 10 m length, 8-wire PUR cable, halogen-free
- Black PUR jacket, halogen-free
- Shielded cable with 0.25 mm² conductor cross section
- High bending radius for flexible use (>10x cable diameter) and stationary position (>5x cable diameter)
- Over 2,000,000 bending cycles
- Current loading capacity of 4 A
- IP67 enclosure rating for dust and water protection
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Industrial automation and sensor connectivity
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design minimizes cable replacement and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YF2A68-100XXXXLEAX PUR/4*2*0,25/BK/US cable is available for immediate purchase, ideal for industrial automation and sensor connectivity in harsh environments.
