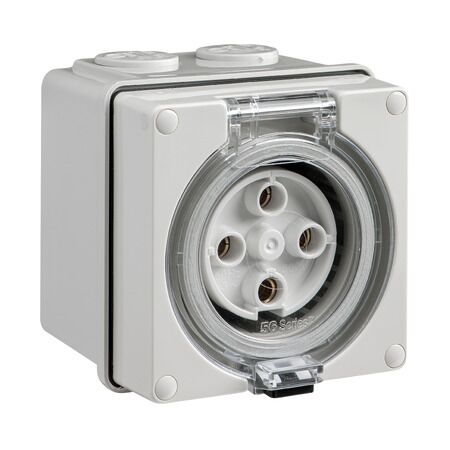

Industrial Socket 4 Pin 32A | 500V | IP66 Surface Mount by Clipsal
Industrial socket with 4 pins and 32A current rating—ideal for small commercial and utility applications. Built for durability, with IP66 protection and surface mount design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Easy56, Socket, 4 Pin, 32A, 500V
Brand: Clipsal
SKU: EY56SO432
Alternatively Known As: Easy56 Socket, 4 Pin Socket, 32A Socket, Clipsal Socket
Technical Specifications
- Mounting mode: Surface mounted
- Pin number: 4 pins
- Connections: Screw terminals for 4-16 mm² rigid or stranded cable
- Wire stripping length: 16 mm
- IP Rating: IP66 conforming to AS 60529
- Ambient air temperature for operation: -25 to 75 °C
- Network frequency: 50 Hz
- Poles description: 3P + E
- Dimensions (H x L x W): 101mm x 101mm x 101mm
- Weight: 0.471 kg
Key Features
- Surface mounted design
- Rated current of 32A
- Rated operational voltage of 500V
- IP66 rated for protection against dust and water
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Small commercial and utility applications
Standards & Compliance
- Complies with AS/NZS 3123 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and environmental regulations.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Easy56 Socket, 4 Pin, 32A, 500V is available now for immediate purchase. Ideal for industrial and small commercial applications.
