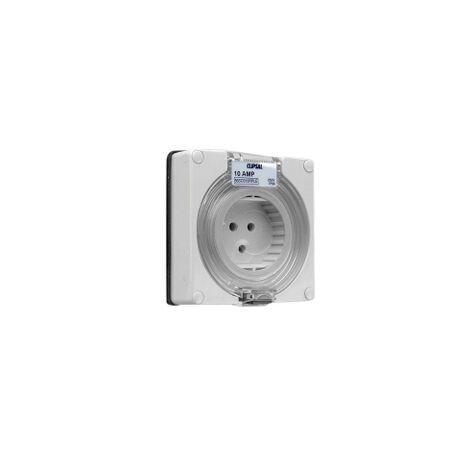

Industrial Socket Inlet 3 PIN 10A | Surface Mount | Grey by Clipsal
Industrial socket inlet with 10A current and 250V AC voltage—ideal for small commercial and industrial applications. Built for easy installation, with surface mounting and screw terminals for secure connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Socket Inlet, Surface 3 PIN 10A Less Enclosure - Grey
Brand: Clipsal
SKU: 56SO310RPLE-GY
Alternatively Known As: Clipsal Socket Inlet, 56 Series Socket, Industrial Socket Outlet
Technical Specifications
- Rated current: 10A
- Rated operational voltage: 250V AC 50Hz
- Device mounting: Surface
- Connections: Screw terminals for 1.5-6 mm² cables
- Socket number: 1
- Outlet standard: Industrial
- Material: Polycarbonate cover, brass screws
- Poles description: 1P + N + E
- Tightening torque: 0.8 N.m
- Dimensions (H x L x W): 107mm x 55mm x 101mm
- Weight: 0.222 kg
Key Features
- Surface mounting design for easy installation.
- Rated current of 10A and operational voltage of 250V AC 50Hz.
- Screw terminals for 1.5-6 mm² rigid or stranded cable connections.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Small commercial utility industry
- Power supply for various industrial applications
Standards & Compliance
- Complies with AS/NZS 4417.1 and AS/NZS 3112 standards.
Environmental Benefits
- Compliant with RoHS directives and made with recycled cardboard packaging.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Socket Inlet Surface 3 PIN 10A is available now for immediate purchase. Ideal for small commercial and industrial applications.
