Industrial Socket Outlet 10A 250V | IP66 Surface Mount | Chemical Grey by Clipsal
Industrial socket outlet with 10A, 250V rating and IP66 protection—ideal for machinery and equipment. Built for industrial and commercial use, with surface mount design and secure screw terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

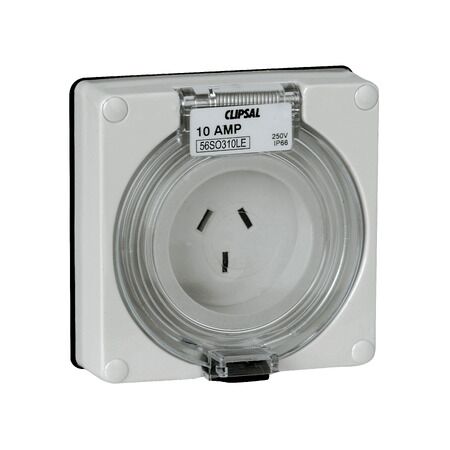

Product Name/Title: Clipsal - 56 Series, Socket Outlet Surface 3 Flat PIN 10A, 250V Less Enclosure - Chemical Grey
Brand: Clipsal
SKU: 56SO310LE-CG
Alternatively Known As: Clipsal 56 Series Socket, Industrial Socket Outlet, 10A Socket Outlet
Technical Specifications
- Rated current: 10A
- Rated operational voltage: 250V AC 50Hz
- Device mounting: Surface
- Connections: Screw terminals for 1.5-6 mm² cables
- Socket number: 1
- Outlet standard: Industrial
- IP Rating: IP66
- Ambient temperature range: -25 to 75 °C
- Material: ABS cover, brass screws
- Dimensions (H x L x W): 107mm x 64mm x 101mm
- Weight: 0.3 kg
Key Features
- IP66 rated for protection against dust and water ingress.
- Surface mounting design for easy installation.
- Screw terminals for secure connections.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial applications
- Utility: Utility installations requiring robust socket outlets
Standards & Compliance
- Complies with AS/NZS 3112 and AS/NZS 4417.1 for safety and performance.
Environmental Benefits
- Compliant with RoHS directives, reducing hazardous substances.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Socket Outlet Surface 3 Flat PIN 10A, 250V in Chemical Grey is available now for immediate purchase. Ideal for industrial and commercial applications.
