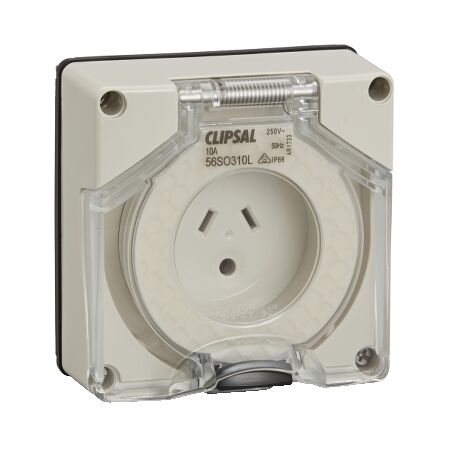

Industrial Socket Outlet 3 PIN 10A | IP66 Rated | Surface Mount | Grey by Clipsal
Industrial socket outlet with 10A current and IP66 rating—ideal for small commercial and industrial applications. Built for durability, with surface mounting and grey polycarbonate design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Socket Outlet, Surface 3 PIN 10A LT Less Enclosure - Grey
Brand: Clipsal
SKU: 56SO310LLE-GY
Alternatively Known As: Clipsal 56 Series Socket, 10A Socket Outlet, Industrial Socket Outlet
Technical Specifications
- Rated current: 10A
- Rated operational voltage: 250V AC 50Hz
- Device mounting: Surface
- Connections: Screw terminals for 1.5-6 mm² rigid or stranded cable
- Socket number: 1
- Outlet standard: Industrial
- IP Rating: IP66
- Ambient air temperature for operation: -25...75 °C
- Material: Polycarbonate cover, brass screws
- Dimensions (H x L x W): 107mm x 64mm x 101mm
- Weight: 0.22 kg
Key Features
- IP66 rated for protection against dust and water ingress.
- Designed for surface mounting with external mounting mode.
- Rated current of 10A and operational voltage of 250V AC 50Hz.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Utility: Power supply for small commercial and industrial applications
Standards & Compliance
- Complies with AS/NZS 3112 and AS/NZS 4417.1 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives, contributing to reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Socket Outlet Surface 3 PIN 10A LT Less Enclosure in Grey is available now for immediate purchase. Ideal for utility and small commercial applications.
