Industrial Socket Outlet 32A | 500V AC | Surface Mount | Chemical Grey by Clipsal
Industrial socket outlet with 32A current and 500V AC voltage—ideal for machinery and equipment. Built for industrial and commercial use, with surface mount design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

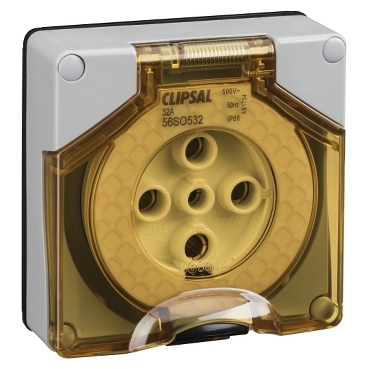

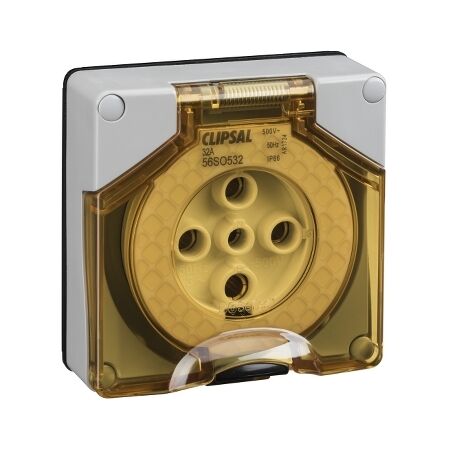

Product Name/Title: Clipsal - 56 Series, Socket Outlet, Surface 5 PIN Round 32A Less Enclosure - Chemical Grey
Brand: Clipsal
SKU: 56SO532LE-CG
Alternatively Known As: Clipsal 56 Series Socket, 32A Socket Outlet, Industrial Socket Outlet
Technical Specifications
- Rated current: 32A
- Rated operational voltage: 500V AC 50Hz
- Device mounting: Surface
- Socket number: 1
- Outlet standard: Industrial
- Material: ABS cover, brass screws
- Poles description: 3P + N + E
- Tightening torque: 0.8 N.m
- Dimensions (H x L x W): 107mm x 74mm x 101mm
- Weight: 0.44 kg
Key Features
- Rated current of 32A and operational voltage of 500V AC 50Hz.
- Surface mounting design for easy installation.
- Screw terminals for 4-16 mm² rigid or stranded cable connections.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial applications
Standards & Compliance
- Complies with AS/NZS 3112 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and made with recycled cardboard packaging.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Socket Outlet Surface 5 PIN Round 32A in Chemical Grey is available now for immediate purchase. Ideal for industrial and small commercial applications.
