Industrial Socket Outlet 3P+E+2P | 50A 440V | IP66 Rated by NHP
Industrial socket outlet with 3P+E+2P configuration and 50A 440V capacity—ideal for factories and manufacturing plants. Built for durability, with IP66 protection against dust and water ingress.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

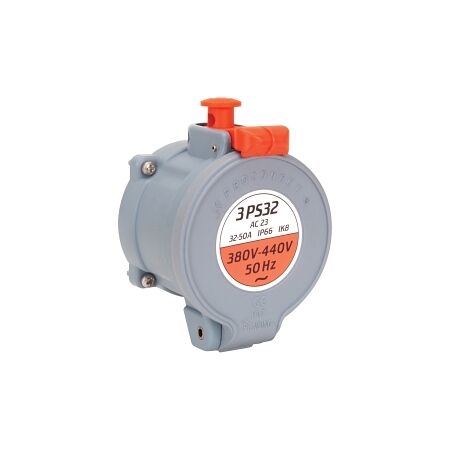

Product Name/Title: PROCONECT 3PS32 Socket Outlet, 3P+E+2p, 50A (AC23 32A) 440V AC
Brand: NHP
SKU: 3PS32D30E01P
Alternatively Known As: High Current Socket Outlet, 50A Socket, Industrial Socket Outlet
Technical Specifications
- Amperage: 50 A
- Voltage: 380-440 V
- Contact Configuration: 3P+E+2P
- Construction Type: Outlet
- Material Insulation Body: Polyamide (PA)
- Contact Material: Other
- Material Screw: Stainless Steel
- Degree of Protection: IP66
- Nominal Tightening Torque: 2.72 Nm
- Operating Temperature: -30-60 °C
- Dimensions (H x L x W): 100mm x 93.5mm x 100mm
- Weight: 0.38 kg
Key Features
- 3P+E+2P configuration for versatile connections.
- IP66 rated for protection against dust and water ingress.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Factories, manufacturing plants
- Commercial: Large retail spaces, warehouses
- General: Any high-power electrical installation requiring robust socket outlets
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The PROCONECT 3PS32 Socket Outlet is available now for immediate purchase, ideal for high-power industrial and commercial applications.
