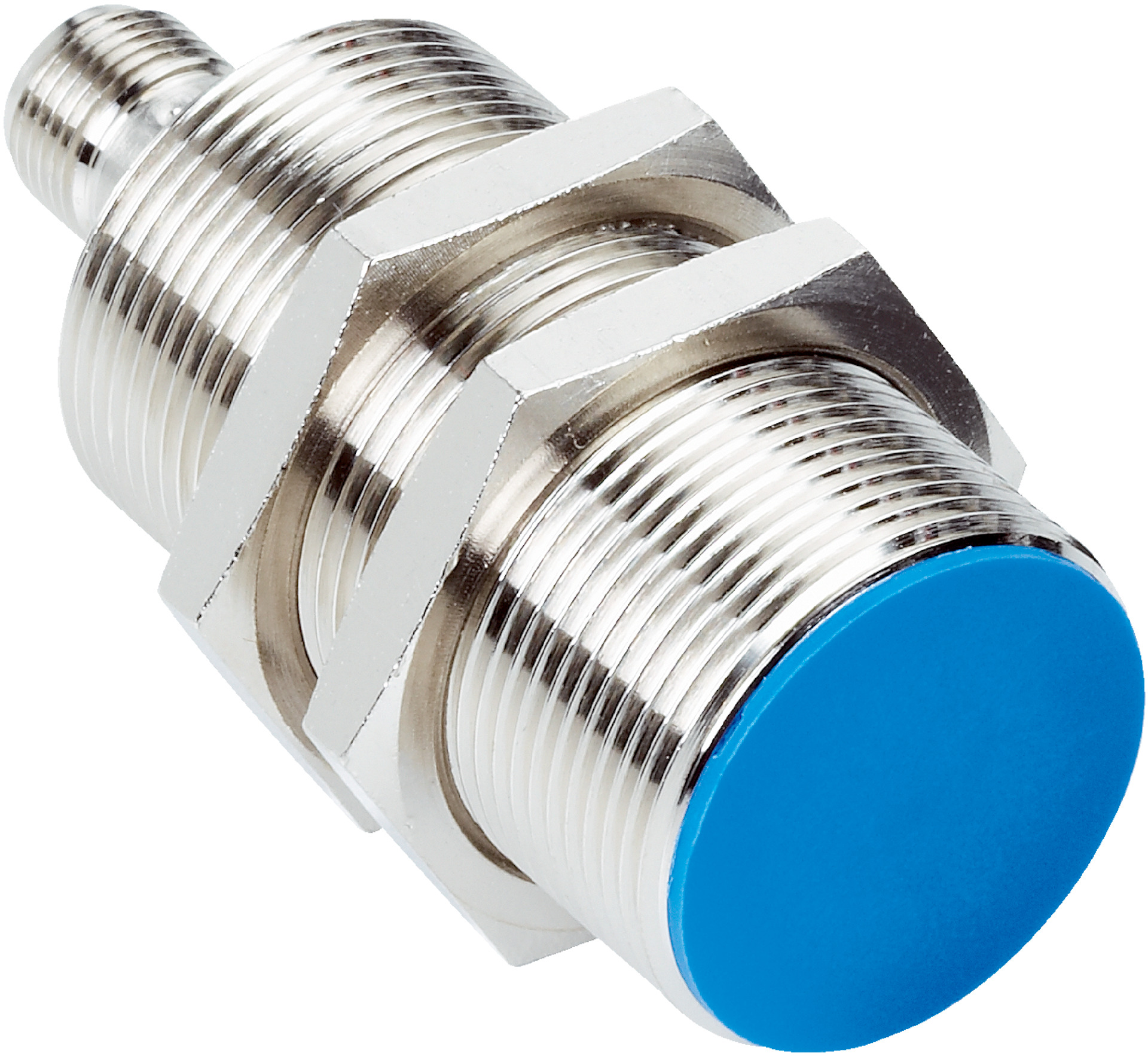

Industrial Speed Sensor M30 | IO-Link Communication | IP67 Rated | Adjustable Speed Range | by SICK
The Industrial Speed Sensor M30 is designed for precise speed and acceleration monitoring in industrial automation. With an adjustable speed range from 6 to 12,000 pulses/min and an IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for machine safety and control systems, this sensor features robust construction and easy integration via IO-Link communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 100 mA
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Minimum response time: 50 ms (speed), 1 sec (acceleration)
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 16 bit
- Process data structure: 14 bit measured value, 1 bit pulse output, 1 bit switching output
- Dimensions (H x L x W): 71mm x 71mm x 30mm
- Weight: 0.15 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Flush installation type with male M12 4-pin connector
- PNP switching output with pulse output corresponding to activation rate
- Adjustable speed range from 6 to 12,000 pulses/min
- Adjustable acceleration range from 0.1 to 2 pulses/s²
- Time delay configurable with multiple modes
- IP67 rated enclosure for dust and water protection
- Robust brass nickel-plated housing with plastic sensing face
- Shock and vibration resistant (30 g, 11 ms, 10 Hz to 55 Hz)
- LED indicators for status (yellow for QImp, blue for Q)
- Communication via IO-Link V1.0 with 5 ms cycle time
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, ensuring proper mounting torque and electrical connections.
Applications
- Industrial automation for speed and acceleration monitoring
- Machine safety and control systems
- Conveyor and rotating equipment monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

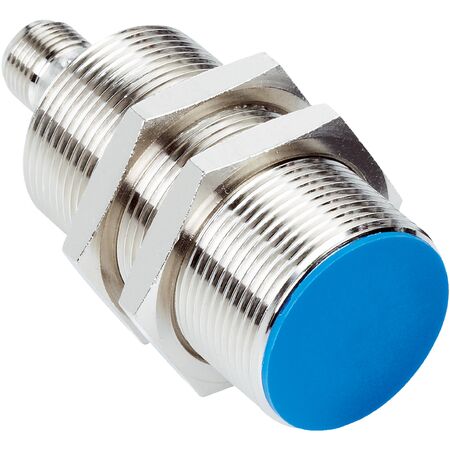

The SICK IMC30-10BPDZC0SA05 speed monitor sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
