Making Trade Life Easy!

Home/Data/Cabinets/IP Rated Cabinets/Industrial Steel Enclosure 1200Hx800Wx500D | IP66 Rated | Pebble Grey by B&R Enclosures

Trade Discount 20%

Monarch IP 1200Hx800Wx500D IP66 Steel RAL7032

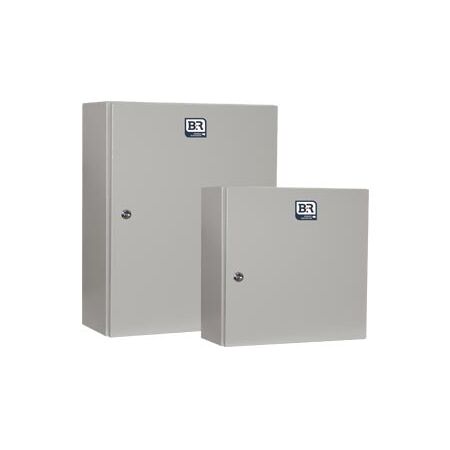

Industrial Steel Enclosure 1200Hx800Wx500D | IP66 Rated | Pebble Grey by B&R Enclosures

BRAND: B&R Enclosures

SKU: IP45295

$3,454.90 List price: $4,342.40

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

Industrial steel enclosure with IP66 protection and C rail mountings—ideal for small motor control and lighting applications. Built for durability, with pebble grey powdercoated finish and concealed removable hinging.

Description
Attachments

Product Name/Title: Monarch IP 1200Hx800Wx500D IP66 Steel RAL7032

Brand: B&R Enclosures

SKU: IP45295

Alternatively Known As: Zinc Coated Steel Enclosure, IP66 Enclosure, Industrial Steel Enclosure

Technical Specifications

1.6mm thick zinc coated steel
1.6mm steel gland plate (brass also available as an option)
Region D wind rated to AS1170.2-2002: Structural design actions – Wind actions
Dimensions (H x L x W): 800mm x 500mm x 1200mm
Weight: 500 kg

Key Features

IP66 protection rating
C rail mountings for equipment
Gland plate on all but 175 and 270mm deep enclosures
Vertical body and door rails
3 point locking on models of 600mm high and above
Lockable L handle on enclosures 1600mm high and above
Stainless steel hinges and hinge pins for easy door opening
Concealed removable hinging
Polyurethane gasket (formed in place)
Pebble Grey (RAL7032) powdercoated paint finish or Ripple Orange – X15

Professional Installation Requirements

Professional installation is recommended to ensure compliance with safety standards.

Applications

Small motor control applications
Lighting
CT metering
Small switchboards

Standards & Compliance

Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.

Environmental Benefits

Durable materials reduce the need for frequent replacements, minimizing waste.

Warranty Information

Standard warranty applies, please check with the manufacturer for details.

Available Now

The Monarch IP – Zinc Coated Steel is available now for immediate purchase. Ideal for industrial applications requiring robust and flexible enclosures.

Specification Sheet (, 439 Kb) [Download]
