Industrial Steel Enclosure | IP66 Rating | Glass Viewing Window | Pebble Grey by B&R Enclosures

SKU: IP21292/WG
$3,037.10 List price: $3,817.30
+

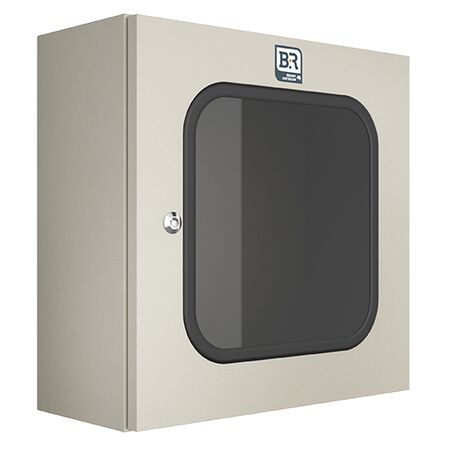

Industrial steel enclosure with IP66 protection and glass viewing window—ideal for small motor control and lighting applications. Built for durability, with pebble grey finish and stainless steel hinges for easy access.

Product Name/Title: Monarch IP 600Hx800Wx270D IP66 St 7032 VW Glass

Brand: B&R Enclosures

SKU: IP21292/WG

Alternatively Known As: Monarch IP Enclosure, Industrial Steel Enclosure, IP66 Enclosure

Technical Specifications
  • 1.6mm thick zinc coated steel
  • 1.6mm steel gland plate (brass available as an option)
  • Polyurethane gasket (formed in place)
  • Pebble Grey (RAL7032) powdercoated paint finish or Ripple Orange – X15
  • Dimensions (H x L x W): 800mm x 270mm x 600mm
  • Weight: 15 kg
Key Features
  • IP66 protection rating
  • C rail mountings for equipment
  • Glass Viewing Window
  • 3 point locking on models of 600mm high and above
  • Stainless steel hinges and hinge pins for easy door opening
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance with standards.
Applications
  • Small motor control applications
  • Lighting
  • CT metering
  • Small switchboards
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
  • Region D wind rated to AS1170.2-2002 for structural design actions.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Monarch IP – Viewing Window (ZS) is available now for immediate purchase. Ideal for industrial applications requiring robust and flexible enclosures.

Specification Sheet (, 440 Kb) [Download]

Specification Sheet (, 439 Kb) [Download]
