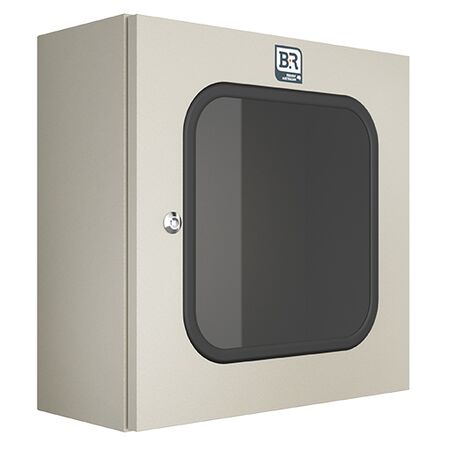

Industrial Steel Enclosure | IP66 Rating | Glass Viewing Window | Pebble Grey by B&R Enclosures
Industrial steel enclosure with IP66 protection and glass viewing window—ideal for small motor control and lighting applications. Built for durability, with pebble grey finish and stainless steel hinges for easy access.
Sign in
Please login to continue to your account.
Product Name/Title: Monarch IP 1200Hx800Wx500D IP66 St 7032 VW Glass
Brand: B&R Enclosures
SKU: IP45295/WG
Alternatively Known As: Monarch IP Enclosure, Industrial Steel Enclosure, IP66 Enclosure
- 1.6mm thick zinc coated steel
- 1.6mm steel gland plate (brass available as an option)
- Polyurethane gasket (formed in place)
- Pebble Grey (RAL7032) powdercoated paint finish or Ripple Orange – X15
- Dimensions (H x L x W): 800mm x 500mm x 1200mm
- Weight: 50 kg
- IP66 protection rating
- C rail mountings for equipment
- Glass Viewing Window
- 3 point locking on models of 600mm high and above
- Stainless steel hinges and hinge pins for easy door opening
- Professional installation by a qualified technician is recommended for optimal performance.
- Small motor control applications
- Lighting
- CT metering
- Small switchboards
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
- Region D wind rated to AS1170.2-2002 for structural design actions.
- Durable materials reduce the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The Monarch IP – Viewing Window (ZS) is available now for immediate purchase. Ideal for industrial applications requiring robust and flexible enclosures.
