Industrial Straight Plug 20A 250V | IP66 Rated | Electric Orange by Clipsal
Industrial straight plug with 20A and 250V rating—ideal for machinery and equipment power supply. Built for industrial use, with IP66 protection and secure screw terminal connections.
Sign in
Please login to continue to your account.

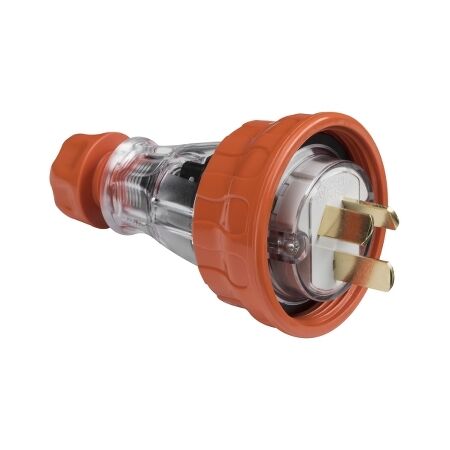

Product Name/Title: Clipsal - 56 Series, Straight Plug, IP66, 250V 20A - 3 Flat Pins Electric Orange
Brand: Clipsal
SKU: 56P320F-EO
Alternatively Known As: Industrial Straight Plug, 56 Series Plug, IP66 Plug
- Rated current: 20A
- Rated operational voltage: 250V AC 50Hz
- Material: Polycarbonate housing, brass pins
- Cable entry: Cable gland
- Poles description: 1P + N + E
- Thread type: M20
- Pin arrangement: F
- Ambient air temperature for operation: -25...75 °C
- Dimensions (H x L x W): 67mm x 112.5mm x 67mm
- Weight: 0.3 kg
- IP66 rated for protection against dust and water
- Rated for 20A and 250V AC operation
- Screw terminal connections for secure wiring
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power supply for machinery and equipment
- Utility: Suitable for small commercial applications
- Complies with AS/NZS 3123 for safety and performance standards.
- Compliant with RoHS directives, ensuring reduced environmental impact.
1 year warranty against manufacturing defects.
The Clipsal 56 Series Straight Plug is available now for immediate purchase. Ideal for industrial and small commercial applications.
